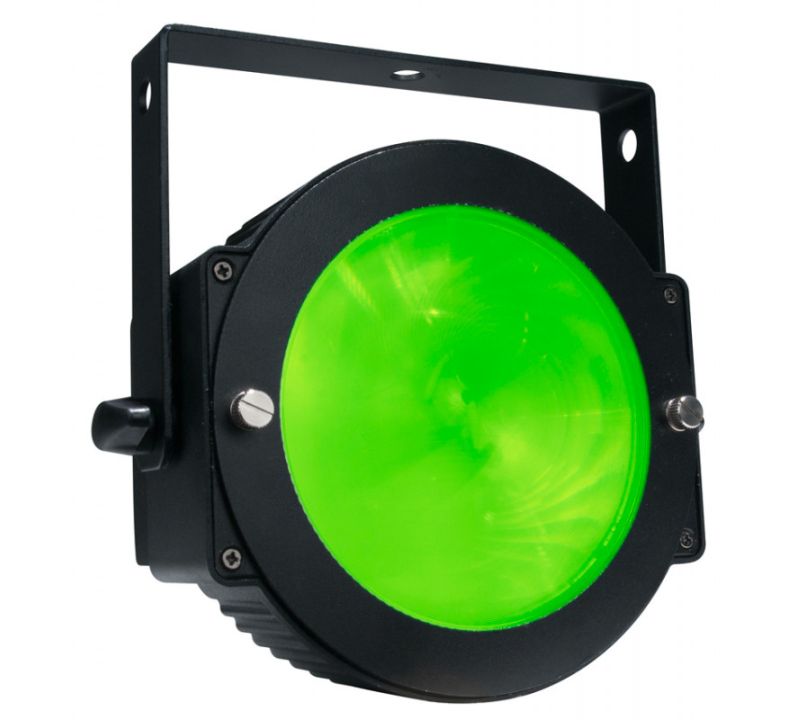

American DJ Dotz Par LED Lighting Effect
In-stock with brand - Estimated delivery 7-10 days
SKU
1223200032
Special Price £109.00 Was: £119.00 Save £10.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The American DJ Dotz Par is a powerful LED that makes use of Chip On-Board technology to produce a high-output and smooth colour mixing. Perfect for mobile DJs, stages clubs and bars and dancefloors.
- High output slim low profile Par fixture
- COB Technology produces powerful, smooth RGB colour mixing
- Use as Wash/par or Pixel Mapped for a stunning visual effect
- Built-In preset colours and programs
- See full product description
The American DJ Dotz Par is a compact powerful LED light that uses advanced COB (Chip On Board) technology to produce a high-output alongside smooth colour mixing with no RGB shadows. This device was designed for mobile or permanent uses and is perfect for lighting up stages, clubs and dancefloors.
The Dotz Par light can run in standalone mode, sound activate mode or from a DMX controller. It can also be controlled using the ADJ Dotz RF wireless remote control however this does not come included.
The ADJ Dotz Par provides a 60-degree wash of colour (25-degrees when the supplied lens kit is used). Four DMX channels modes provide users with flexible programming as well as 35 built-in colour macros and five selectable Dim Curves. Other features include 0-100% electronic dimming, flicker free operation, strobe/pulse effect, a four button LCD DMX display plus DMX and power daisy-chaining.
- High output slim low profile Par fixture with one TRI (3-IN-1) RGB COB LED
- COB Technology (Chip On Board) produces powerful, smooth RGB colour mixing with rich palettes of color
- Use as Wash/par or Pixel Mapped for a stunning visual effect
- 5x Operational modes: Auto Run, Sound Active, Color Macro, Dimmer, and DMX Controlled Mode
- 4 DMX channel modes: 3, 4, 5 or 9 channel
- Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
- Built-In preset colours and programs
- Flicker Free operation (No flickering on camera)
- 35 built-in Colour Macros
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- Beam angle: 60-degrees (25-degrees with supplied lens kit)
- 3-pin XLR chassis mount connectors for DMX linking
- IEC AC IN/OUT to daisy chain power (up to 13 Dotz Par’s @ 110V and 28 Dotz Par’s @ 230V)
- Power Draw: 36W total (All LEDs @ Full On)
- 4-button LCD DMX display on rear panel
- Compatible with ADJ Dotz RF wireless remote control (sold separately ID 1223200035)
- Single yoke allows fixture to be mounted
- Light Source: 1x 36-Watt COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)
- Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
Dimensions (LxWxH)
- 209 x 222 x 114mm (with bracket)
- 165 x 165 x 114mm (without bracket)
Weight
- 2 kg
