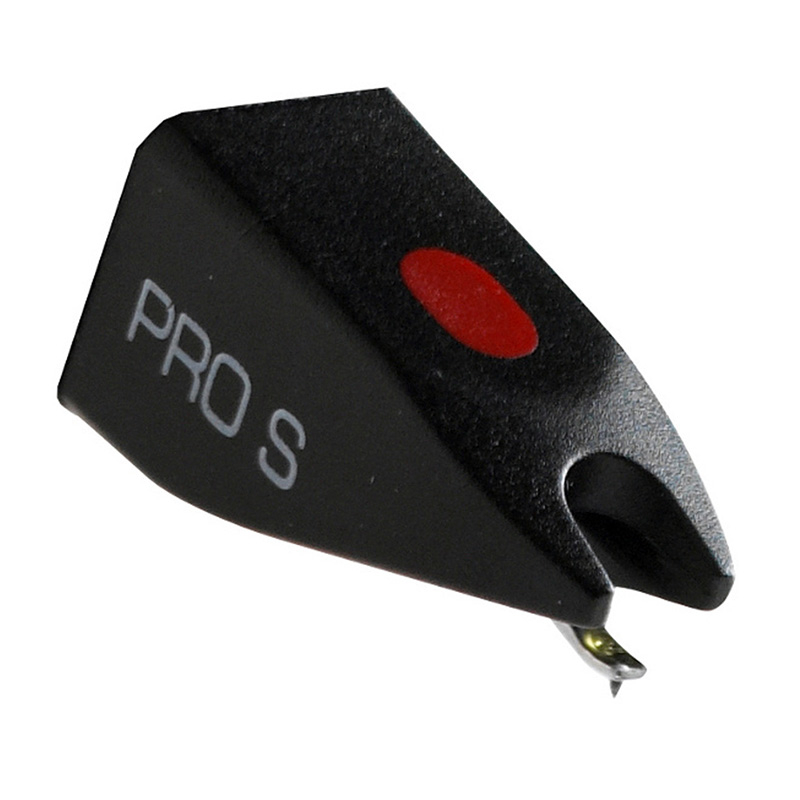

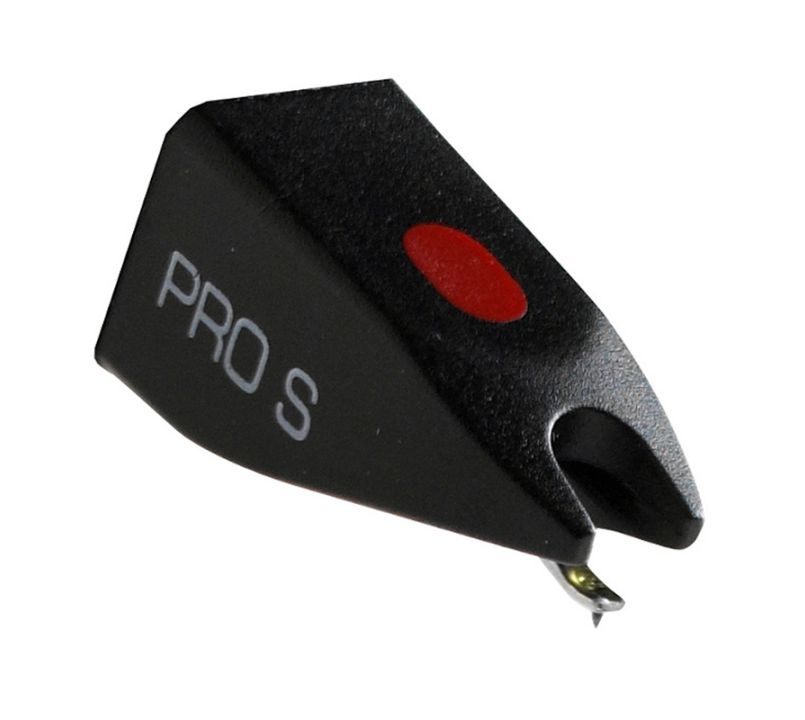

Ortofon Pro S Replacement Stylus
BACK-ORDER - Estimated Stock Arrival: 04-12-2024
SKU
0021101
£28.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Ortofon Pro S is a replacement stylus for the Concorde Pro S and OM Pro S.
- See full product description
- Buy 2 for £27.00 each and save 4%
This replacement stylus has been designed specifically for the OM Pro S and Concorde Pro S cartridges. Take your DJ sets and scratch routines to the next level with this replacement stylus.
- Award Winning DJ Stylus
- Ortofon Pro S
- Replacement Stylus for Ortofon Concorde Pro S
- Replacement Stylus for Ortofon OM Pro S
- Output voltage at 1000Hz, 5cm/sec. - 5 mV
- Channel balance at 1kHz - 2 dB
- Channel separation at 1kHz - 20 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at -3dB - 20-18.000 Hz
- Frequency response - 20-18.000 Hz +/-2 dB
- Tracking ability at 315 Hz at recommmende tracking force - 70 μm
- Compliance, dynamic lateral - 7 μm/m N
- Stylus type - Spherical
- Stylus tip radius - R 18 μm
- Tracking force range - 3.0-5.0 g (30-50 mN)
- Tracking force recommended - 4.0 g (40 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 750 Ohm
- Internal inductance - 450 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 200-600 pF
- Concorde / OM cartridge weight - 18.5 g / 5.0 g
