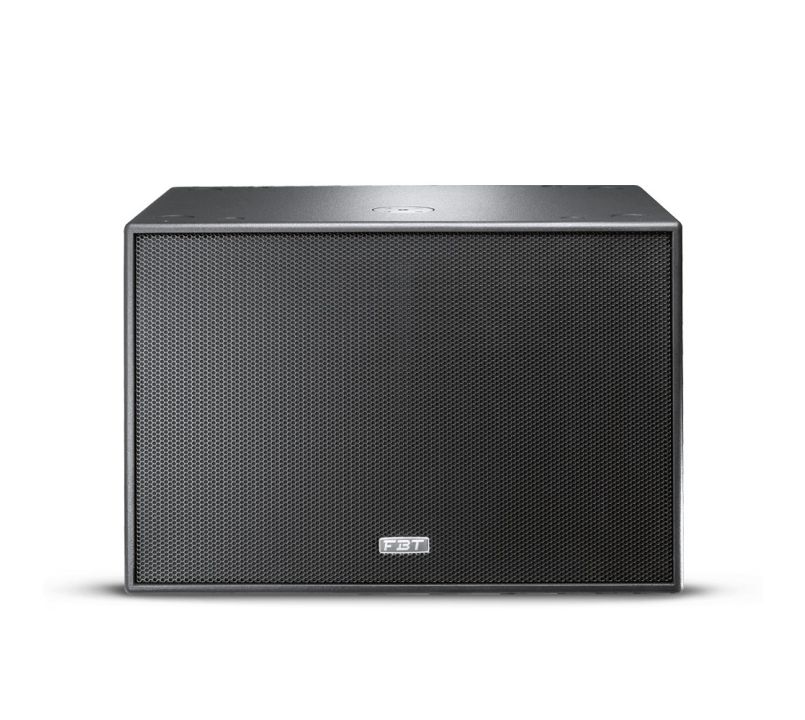

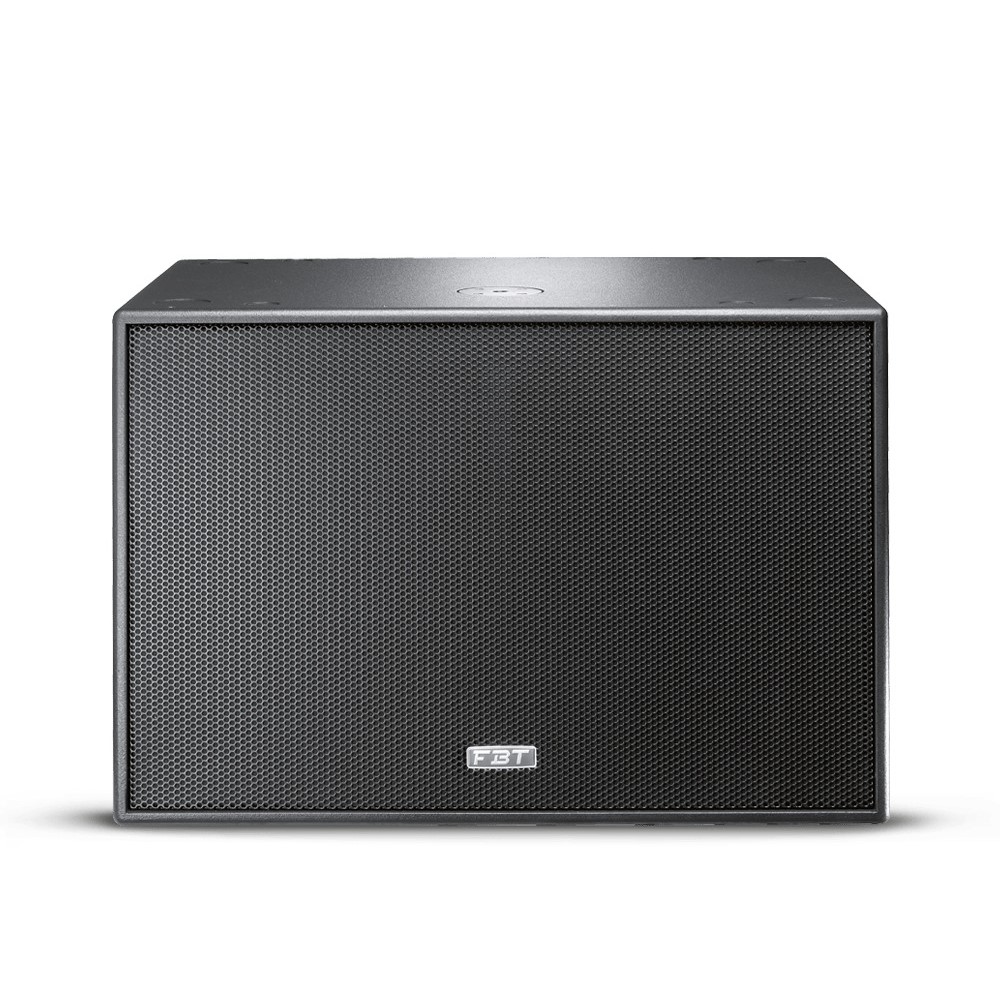

FBT Audio Subline 218SA 1200w Processed Active Subwoofer

BACK-ORDER - Estimated Stock Arrival: 07-01-2024
SKU
38774
£2,741.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

This FBT Audio Subline 218SA is a 1200w processed active subwoofer that is equipped with two 18-inch woofers as well as a 3-inch voice coil and a powerful digital signal processor that optimises the subwoofer for your application.

  • Bass-reflex design Subwoofer
  • 460mm (18”) high excursion woofer
  • 75mm (3”) voice coil
  • 200W RMS Class D power amplifier
  • Baltic birch plywood cabinet
  • See full product description

The FBT Audio Subline 218SA is a 1200w processed active subwoofer that comes equipped with two 18-inch woofers alongside a 3-inch voice coil which has been custom made for FBT by B&C. The bass-reflex design provides you with an extended low-end frequency response that gives you a super-robust sound, perfect for getting that low-end punch your venue requires. This subwoofer is ideal for permanent installations and makes a great addition to any large club or bar venue as well as festivals, large theatres, and music venues.

The Subline 218SA is fitted with a 1200w RMS Class D power amplifier with an integrated switch mode power supply that works to deliver a super-high sound pressure level of 140dB and offers a frequency response that ranges from 30 – 120 Hz. When used in conjunction with 2-way EvoMaxx speakers you get additional low-frequency reinforcement for the punch you desire.

An integrated digital signal processor works to provide you with six preset settings that optimise the subwoofer for the application you’re using it for, when using the DSP you get three EQ presets alongside three low-pass filter crossover settings as well as a digital six-step delay line. The rear of the speaker provides you with a control panel that offers stereo XLR in/outputs, a volume control, a digital signal processor, delay, phase reverse switch, and three status LED indicators that signal when you’re overloading the speaker.

The cabinet is constructed out of 15mm thick Baltic birch plywood that is finished with a scratch and scuff resistant paint finish that keeps the subwoofer looking professional and sleek, even after heavy on-stage use and quite a few knocks and bumps. The cabinet is equipped with an M20 20mm top mount speaker stand socket so you can easily mount the sub onto a speaker stand if you require while two aluminium carry handles allow you to transport the subwoofer easily.

  • Bass-reflex design Subwoofer
  • 460mm (18”) high excursion woofer with 75mm (3”) voice coil, custom made for FBT by B&C
  • Frequency response from 33Hz – 120Hz
  • 1200W RMS Class D power amplifier with switch mode power supply
  • Digital Signal Processor with 6 presets, 3 equalization with 2 LPF
  • Crossover Settings, Digital 6 step delay line
  • Control Panel with Stereo XLR in/outs, Volume, EQ Presets, Delay, Phase
  • Reversal Switch 0°-180°, 3 status LED Indicators
  • 15mm (5/8”) Baltic birch plywood cabinet with scratch & scuff resistant paint finish
  • M20 (20mm) top mount speaker stand socket, two aluminum carrying handles
  • Provides additional low frequency reinforcement when used along with 2 – way EvoMaxX speakers.
  • Code: 38774
  • Configuration: 1 Way bass reflex
  • Built-in amplifier LF/HF: 1200W RMS
  • Built-in amplifier peak LF/HF: 2400w
  • Frequency response: 30Hz - 120Hz
  • Low Frequency woofer: 2x 18
  • Maximum SPL cont/peak: 136 / 140db
  • Dispersion: Omnidirectional
  • Input impedance: 22kohm
  • AC Power requirements: 1000VA
  • Input connector: Stereo XLR with Link and HP Filter out
  • Power cord: 5m TrueCon1
  • Net Dimension (WxHxD): 970 x 661 x 670mm
  • Net Weight: 81kg
  • Transport Dimension (WxHxD mm): 1150 x 780 x 800
  • Transport Weight: 94kg
