FBT ProMaxX 114A & Subline 115SA 3200W Active PA Package

Availability:In stock
SKU
40603-41222-180.550UK
Special Price £2,984.00

Was: £3,142.00 Save £158.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

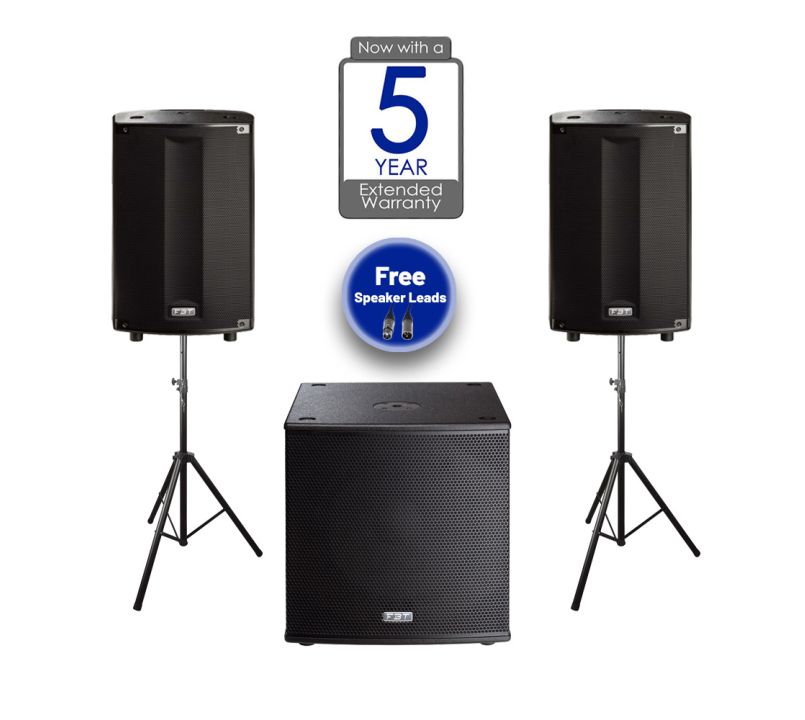

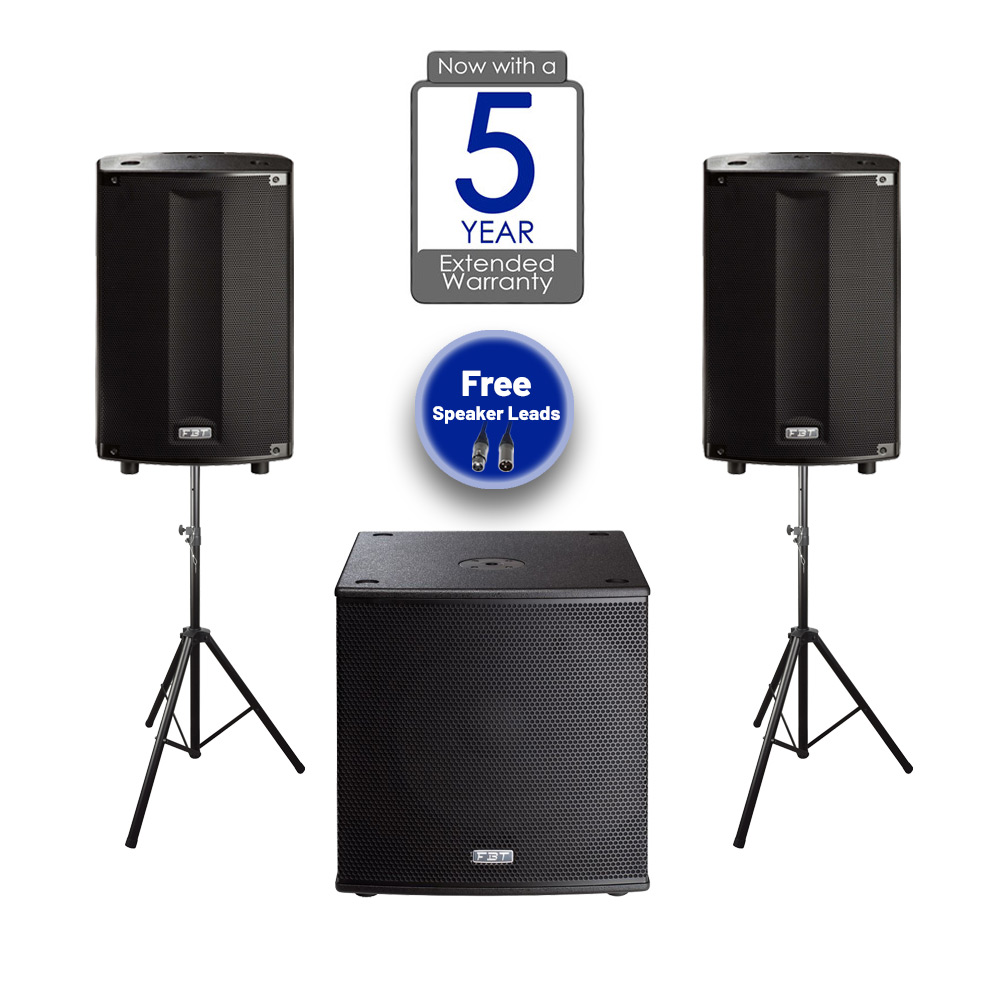

The FBT ProMaxX 114A & Subline 115SA 3200W Active PA Package contains:

  • 2 x FBT ProMaxX 114A 14" Active PA Speakers
  • 1 x Subline 115SA 3200W Active Subwoofer
  • 1 x QTX Speaker Stands with Bag (Pair)
  • Free XLR Speaker Leads
  • See full product description
  • See bundle deals
Buy together
Special Price £2,984.00

Was: £3,142.00 Save £158.00
£499.00

Special Price £209.00

Was: £219.00 Save £10.00
£599.00

£1,699.00

Save £0.00
£2,984.00

The FBT ProMaxX 114A & Subline 115SA 3200W Active PA Package contains two FBT ProMaxX 114A 14" Active PA Speakers, one Subline 115SA 3200W Active Subwoofer, one pair of QTX Speaker Stands with Bag and free XLR Speaker Leads. This speaker package is a complete bundle that provides a high-quality sound setup with ease.

FBT ProMaxX 114a Active PA Speaker

The new FBT ProMaxX 114a active 14-inch PA speaker strives to combine Italian design with sturdy construction and excellent sound quality. When it comes to B&C compression driver technology, the ProMaxX is top of the line. The FBT amplifier module, powered by a switch-mode power supply, is the heart of the speaker.

The subwoofer is powered by a super-efficient Class-D system that delivers very low total harmonic distortion, and it can put out 700W RMS. The 200W RMS provided by the high-frequency section is driven by a Class-H/AB structure for optimum sound quality. An intuitive graphical user interface on the speaker's rear provides access to a robust digital signal processing platform (DSP).

The ProMaxX 114a speaker offers a selection of six EQ presets. Experts in FBT designed each one to be versatile enough to be used in any situation. On the other hand, the user can customise the EQ settings to their liking by using the five parametric EQs found in both of the preset slots. In addition to the mic/line selector, high-pass filter, low-mid-high tone controls, and delay between 0 and 3.5 metres, there are also two limiter modes (MAX-QUALITY and MAX-SPL).

FBT Subline 115SA Active Subwoofer

Powered by 700 watts, the FBT Audio Subline 115SA features a 15-inch high excursion magnet woofer with a 3-inch voice coil. This subwoofer has a frequency response of 40 Hz to 140 Hz with a bass-reflex design.

The Subline 115SA has a new Class D 700w amplifier, which allows it to produce an extremely loud 135dB. Additionally, a high-powered digital signal processor with eight equalisation profiles, a cardioid polar pattern, and a low-pass filter crossover is built into this sub. The 115SA has a control panel on the back that allows you to adjust the volume, EQ settings, phase, and delay time in increments ranging from 0.25 metres to 3.5 metres.

This subwoofer has two aluminium carry handles built right in. It is protected from damage during transport by its scratch-resistant finish and sturdy 15mm birch plywood housing.

QTX Speaker Stand with Bag

The QTX speaker stands are a pair of sturdy steel stands that can be locked in at different heights. They can withstand large speakers with 35mm top hats. The stands also come with a handy and durable carry bag.

FBT ProMaxX 114a Active PA Speaker Features

  • 2-way, bi-amplified, bass reflex design cabinet
  • Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
  • Digital signal processor with graphic display
  • Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
  • 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
  • 90°H x 60°V constant directivity horn
  • Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
  • 3550mm (15") LF woofer with 64mm (2.5") voice coil, custom made for FBT
  • 35mm (1.4") throat exit B&C HF magnet compression driver with 34mm (1.4”) voice coil
  • Frequency response from 45Hz to 20KHz
  • Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
  • Extremely light only 17.4kg
  • Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our 14” LF Woofer for lower frequency SPL

FBT Subline 115SA Active Subwoofer Features

  • Bass-reflex design with high SPL and punch
  • 380mm (15”) high excursion magnet woofer with 75mm (3”) voice coil
  • Frequency response from 40Hz to 140Hz
  • New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
  • Digital Signal processor with 8 presets, 2 equalization with 2 LPF
  • Crossover settings, cardioid configuration
  • Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
  • 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
  • M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles

QTX Speaker Stand with Bag Features

  • Height adjustable from 1.1 - 1.9m
  • 35mmØ pole
  • Maximum load 35kg

FBT ProMaxX 114a Active PA Speaker Tech Spec

  • Configuration: 2 Way
  • Frequency response: 45Hz - 20kHz -6dB
  • Low frequency woofer: 14"
  • High frequency driver: 1.4"
  • Maximum SPL cont/peak: 127/135.5dB SPL
  • Dispersion: 90 x 60
  • Input impedance: 22kOhm
  • Input connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
  • Net Dimension (WxHxD): 402 x 644 x 345mm
  • Net Weight: 17.5kg
  • Transport Dimension (WxHxD): 800 x 642 x 800mm
  • Transport Weight: 54.5kg
  • AC Power requirements: 640VA
  • Built-in amplifier LF/HF: 900w (700w LF + 200w HF)
  • Built-in amplifier peak LF/HF: 1800w (1400w LF + 400w HF)
  • Power cord: 5m IEC
  • Built in amplifier: 900w (700w LF + 200w HF)
  • Built in amplifier peak: 1800w (1400w LF + 400w HF)
  • Maximum SPL continuous/peak: 127/135.5dB SPL

FBT Subline 115SA Active Subwoofer Tech Spec

  • Configuration: Subwoofer
  • Built-in amplifier LF/HF: 700w
  • Built-in amplifier peak LF/HF: 1400w
  • Frequency response: 40Hz - 140Hz
  • Low Frequency woofer: 15" (3" VC)
  • Maximum SPL cont/peak: 132/135dB SPL
  • Dispersion: Omnidirectional
  • Input connector: Stereo XLR In/Out (High Pass/Link Out)
  • Power cord: 5m IEC

QTX Speaker Stand with Bag Tech Spec

  • Height: 1.1 - 1.9m
  • Max. weight load: 35kg
  • Tube: 35mmØ
  • Dimensions: collapsed 1030 x 110 x 110mm
  • Weight: 3.1kg (per stand)
  • Dimensions: 1060 x 200 x 100mm (bag)
