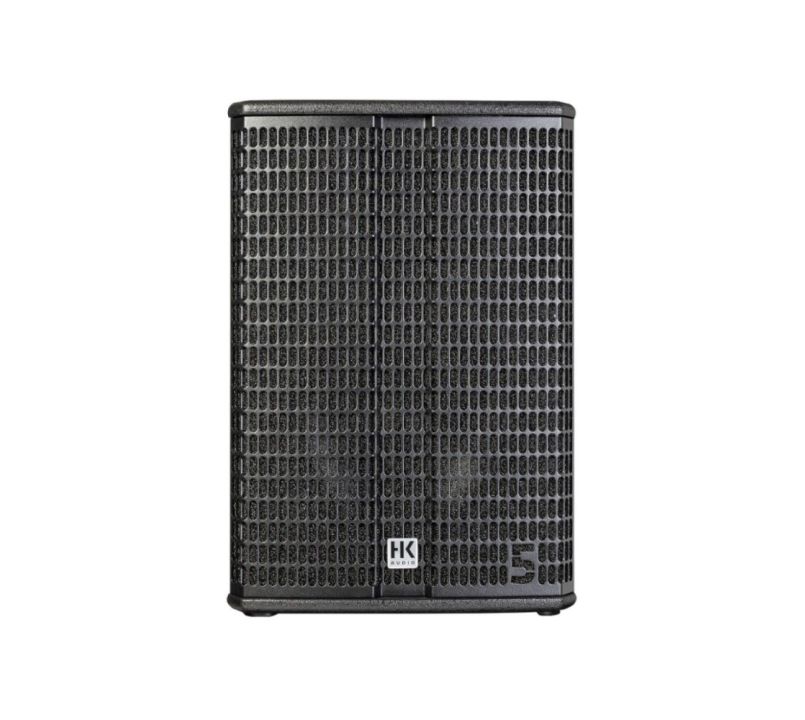

HK Audio LINEAR 5 MKII 110 XA 10-Inch Active Loudspeaker
BACK-ORDER - Estimated Stock Arrival: 26-11-2024
SKU
1007959
£1,194.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The LINEAR 5 MK II 110 XA is the series' smallest multifunctional mid/high unit. It provides low-feedback monitoring even on smaller stages with its crystal-clear, powerful sound.
- See full product description
The LINEAR 5 MK II 110 XA is the series' smallest multifunctional mid/high unit. It provides low-feedback monitoring even on smaller stages with its crystal-clear, powerful sound. The digital signal processor (DSP) may be adjusted remotely and has four user-selectable profiles for maximising usable volume without distortion. Through the DSP Out, the input signal can be sent to a second, non-networked speaker for processing. The LINEAR 5 MK II 110 XA, with its compact birch multiplex hybrid enclosure, is a reliable companion for a wide range of uses, including transverse stage monitoring, speech reinforcement, and system mid/high unit use in tandem with matched subwoofers.
- Smallest mid/high unit in the LINEAR 5 MKII series
- Enclosure shape with 31° monitor slope
- Remote-controllable high-performance DSP with integrated directly selectable presets for the most common applications: Flat, Monitor, Low Cut, Remote
- DSP Out: balanced XLR output, routes the input signal to a non-networked speaker.
- The audio signal applied here can be extensively modified using the DSP CONTROL software
- Lockable EtherCon connector for connection to a Mac or PC to control the system
- Balanced XLR/TRS Combo input, balanced XLR output for analogue looping to an additional speaker
- 10" woofer and tweeter with 1.4" voice coil
- 1200 W peak power bi-amped Class-D power amplifier
- Rotatable horn, 80° x 60° dispersion pattern
- HK Audio DuoTilt with 3° or 7° inclination
- Hybrid enclosure (birch multiplex/MDF)
- Three reinforced M8 (AP-8) fixing points
- Lockable V-Lock mains cable
- 5-year manufacturer warranty after registration
- Max. SPL @ 10% THD: 127 dB half space (70 Hz – 12 kHz averaged)
- Max. SPL peak @ 10 % THD: 135 dB half space
- Frequency response +/-3 dB: 74 Hz – 12 kHz
- Frequency response -10 dB: 68 Hz – 19 kHz
- Power amp output (rms/peak): 600 / 1,200 W
- Amp type: Class D - biamped
- Low-/mid speaker: 1x 10", 2" voice coil
- HF driver: 1", 1.4" voice coil
- Horn directivity: 80° x 60° CD horn, rotatable
- Active crossover frequency: 2,1 kHz FIR X-over with 72 dB/oct.
- Maximum input level: +20 dBu
- Analog inputs: 1x XLR combo balanced
- Analog thru: 1x XLR balanced
- DSP Out: 1x XLR balanced
- Network port: Ethercon RJ45, 1x In
- Filter presets: Flat, Monitor, Low Cut, Remote
- Remote software: DSP CONTROL (Windows, Mac OS)
- DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
- Sample rate: 48 kHz
- System latency: Less than 2 ms
- Mains connector: 1x IEC socket with V-lock cord retainer, 100-240 V
- Power consumption: 1 A / 100–240 V nominal according to EN 62368-1
- Angles up (Monitor angle): 31°
- Pole mount: DuoTilt 3°/7°
- Rigging points: 3x M8 (AP-8)
- Carrying handles: 1x SingleGrip
- Housing: Hybrid (birch multiplex/MDF)
- Finish: Black acrylic enamel
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD): 36 x 52.5 x 30 cm / 14-1/16 x 20-43/64 x 11-13/16"
- Weight: 14.9 kg / 32.85 lbs
