IMG Stageline ECMS-90 Professional Large Diaphragm Condenser Microphone

Availability:Out of stock
SKU
IMG Stageline ECMS-90
£225.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The IMG Stageline ECMS-90 is a professional large diaphragm condenser microphone that is equipped with a 1.1-inch gold-plated diaphragm and makes an excellent addition to any sound engineer's arsenal.

  • See full product description

The IMG Stageline ECMS-90 is a professional large diaphragm condenser microphone that is perfect for professional recording applications and makes an excellent addition to any sound engineer’s arsenal thanks to the natural capturing and smooth sound. This microphone is perfect for home and recording studios, solo performers, vocalists, and live events.

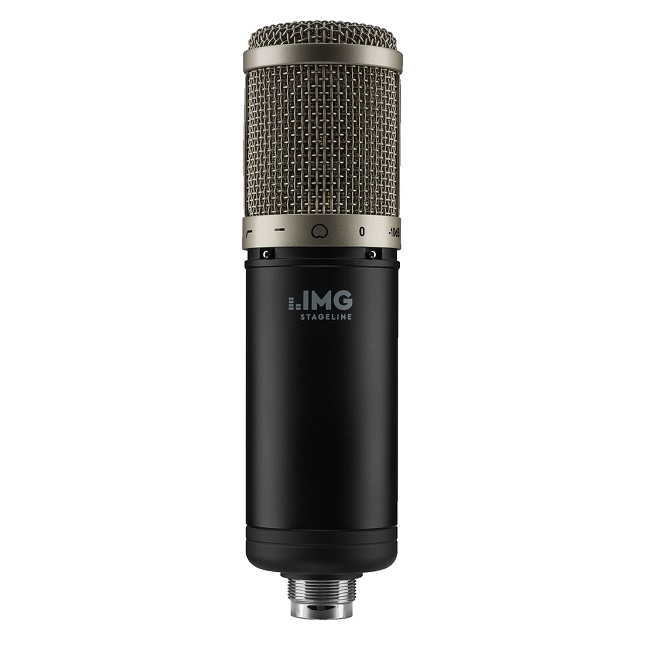

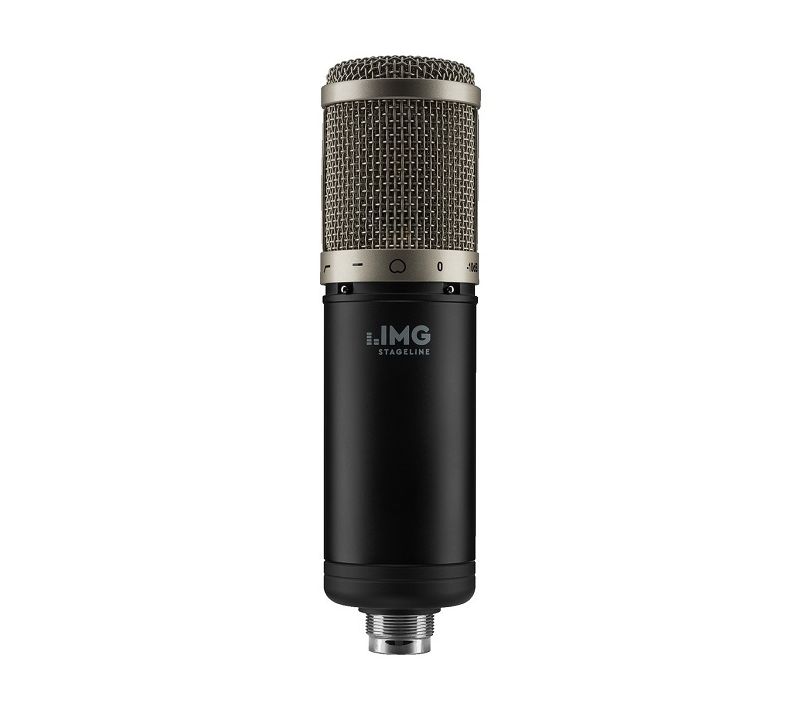

IMGStageline ECMS-90 Microphone

The ECMS-90 comes equipped with an extra thin 1.1-inch gold-plated diaphragm that allows you to capture vocals using a cardioid pickup pattern; this prevents other instruments from bleeding through. A smooth frequency response that ranges from 20 Hz to 20 kHz is ideal for picking up vocals yet is also great for guitar cabs, acoustic guitars, ad a range of other instruments. The microphone is also equipped with a low-cut switch which works as a high-pass filter as well as a 10dB switchable attenuation pad for high-volume instruments.

This microphone requires a 48v Phantom Power power source which is available on most recording mixers while an XLR connection output enables you to connect to a range of outboard gear such as mixers, effects processors, and amplifiers. Also supplied with the ECMS-90 microphone is a vibration absorbing spider support, a 16mm tripod socket and 9mm adapter screw, as well as a microphone windshield and a leather carry bag and comes in a foam-padded transport case.

IMG Stageline ECMS-90 Professional Large Diaphragm Condenser Microphone Key Features:

  • 2.8 cm (1.1") extra thin gold-plated diaphragm
  • Low cut switch
  • 10 dB attentuation, switchable
  • 48 V phantom power
  • Supplied with vibration absorbing support (spider) with 16 mm (⅝") tripod socket and 9 mm (⅜") adapter screw, microphone windshield and leather bag
  • Supplied in a foam-padded case

IMG Stageline ECMS-90 Professional Large Diaphragm Condenser Microphone Technical Specifications:

  • Type: Large diaphragm microphone
  • Transmission method: Cable
  • Polar pattern: Cardioid
  • System: Condenser
  • Audio frequency range: 20-20,000 Hz
  • Nominal impedance: 200 Ω
  • Sensitivity: 20 mV/Pa
  • S/N ratio: 78 dB
  • Max. sound pressure: 135 dB
  • Power supply: DC 48 V, phantom power
  • Housing material: Metal
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: Ø 50 mm x 185 mm
  • Weight: 430g
  • Connection: XLR, bal.
