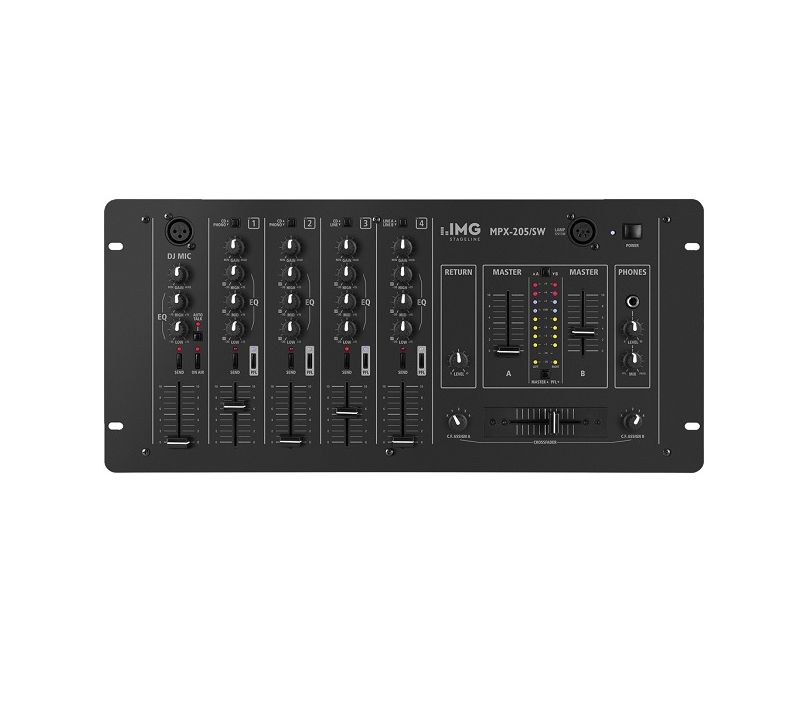

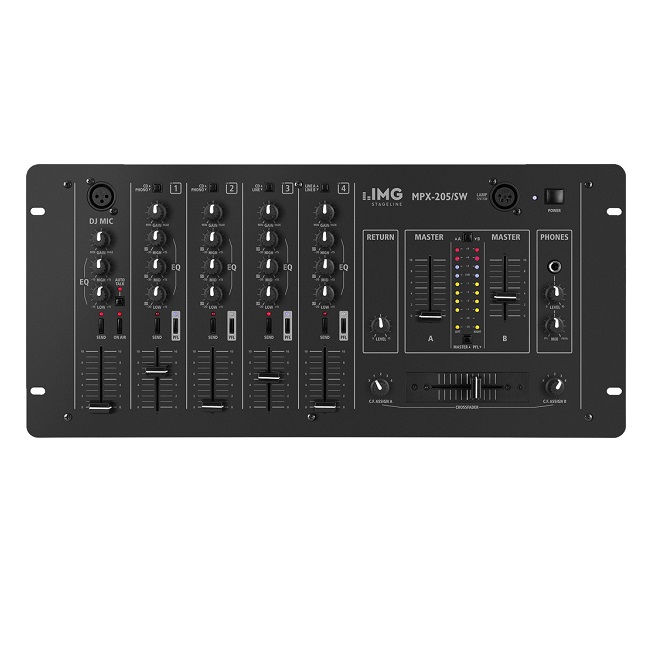

IMG Stageline MPX-205 4-Channel Stereo DJ Mixer

Availability:Out of stock
SKU
IMG Stageline MPX-205/SW
£293.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The IMG Stageline MPX-205 is a 4-channel stereo DJ mixer that can be mounted to a 19-inch rack if required and features all essential DJ functions including 3-band EQ per channel, pre-fader listening for monitoring cue'd tracks, and two master volume outputs with crossfader that comes with a switch for routing channels to the master outputs.

  • See full product description

The IMG Stageline MPX-205 is a 4-channel stereo DJ mixer that comes with the ability to be 19-inch rack mounted, which is perfect for both fixed and mobile applications making it ideal for mobile entertainers, theatres, music venues, schools and colleges, and live events. This 4-channel mixer features plenty of essential professional DJ functions so you can mix with creativity and flair.

The MPX-205 has four stereo channels with a switch that allows you to switch between line and phono input connections as well as an additional dedicated microphone channel with 3-band EQ which is ideal for MC’s, or make use of the automatic talk over feature that ducks the music while you’re using the microphone as well as an on-air switch for the microphone. The rear of the unit also features stereo balanced XLR outputs alongside a recording stereo RCA output and RCA in/outputs for send and return functions allowing you to connect to an external effect processor if required.

Each of the four channels comes with a dedicated 3-band equaliser with a pre-fade listen function so you can monitor your cue’d tracks via a volume adjustable headphone output. There is also a dedicated gain control for each channel while two LED level displays enable you to view when your signals are too hot. There are two master faders for each output channel as well as a crossfader that comes with assignment switches so you can assign any of the four channels to the two main channel outputs.

The MPX-205 features a super-robust construction that is designed for rigorous everyday use and for your convenience the unit comes with the ability to be mounted to a 19-inch rack mount which is perfect for both installed and mobile applications. The unit also features a connection for a gooseneck light so you can still see all controls even in low-light environments.

IMG Stageline MPX-205 4-Channel Stereo DJ Mixer Key Features:

  • 1 DJ mic, 4 stereo channels, switchable line/phono (1+2) and line/line (3+4)
  • Stereo effect send/return
  • 2 master outputs
  • Automatic talkover and on-air switch for DJ mic
  • LED level display, can be switched between the two master outputs and PFL
  • 3-way equalizer with cut function for stereo channels
  • 2-way tone control for DJ mic
  • Gain control for each input
  • Pre-fader listening (PFL) to the stereo inputs and outputs via adjustable headphone output
  • Crossfader with assignment switches
  • Connection for gooseneck light GNL-404

IMG Stageline MPX-205 4-Channel Stereo DJ Mixer Technical Specifications:

  • No. of channels: 5
  • No. of inputs: 10
  • Mic input: 1.5 mV, 1 x 6.3 mm jack
  • Line input: 150 mV, 3 x RCA L/R
  • CD input: 150 mV, 3 x RCA L/R
  • Phono input: 3 mV, 2 x RCA L/R
  • Effect return: 135 mV, 1 x RCA L/R
  • Master output: 1 V/600 Ω, 1 x 3-pole XLR L/R
  • Record output: 330 mV/600 Ω, 1 x RCA L/R
  • Monitor output: 300 mV/600 Ω, 1 x RCA L/R
  • Effect send: 1.2 V/600 Ω, 1 x RCA L/R
  • Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
  • Gooseneck lamp: 12 V/5 W, 1 x 4-pole XLR
  • Frequency range: 20-20,000 Hz
  • THD: 0.05%
  • S/N ratio: > 50 dB
  • Equalizer bass: +15 dB, -30 dB/50 Hz
  • Equalizer midrange: +15 dB, -30 dB/1 kHz
  • Equalizer treble: +15 dB, -30 dB/10 kHz
  • Talkover: -12 dB, automatic
  • Crossfader: Yes
  • Power supply: ~ 230 V/50 Hz/14 VA
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 14 VA
  • Admiss. ambient temp.: 0-40 °C
  • Width: 482 mm
  • Height: 222 mm
  • Depth: 110 mm
  • Rack spaces: RS 5
  • Weight: 4.3 kg
