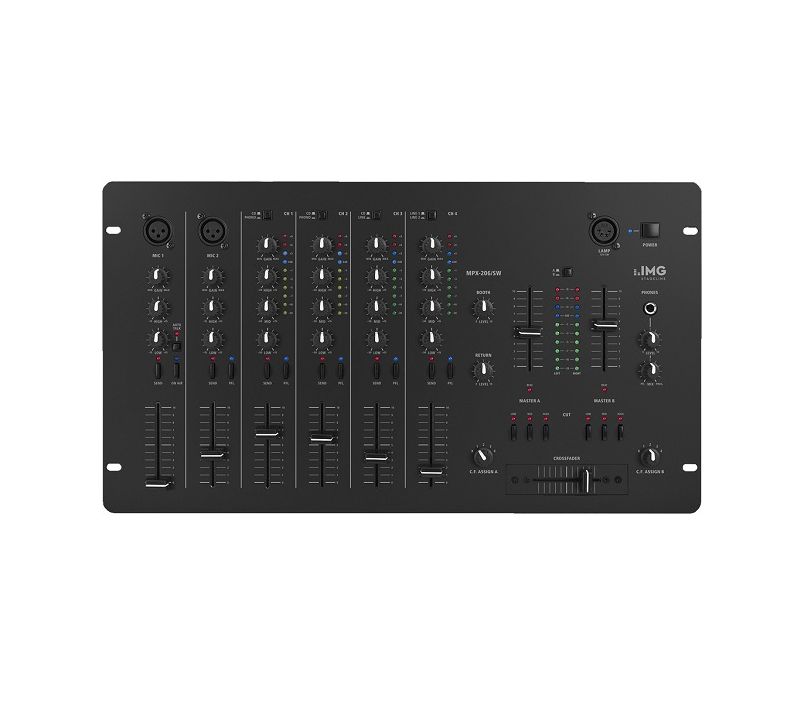

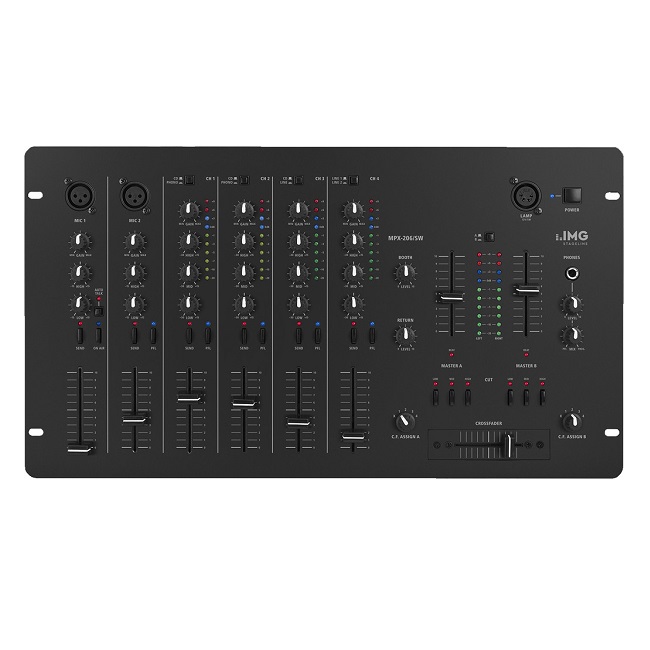

IMG Stageline MPX-206 6-Channel Stereo DJ Mixer

Availability:Out of stock
SKU
IMG Stageline MPX-206/SW
£614.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The IMG Stageline MPX-206 is a 6-channel DJ mixer that comes equipped with four stereo channels as well as two dedicated microphone channels and is equipped with all the essential DJ controls you need or a creative mix. The mixer can also be mounted to a 19-inch rack mount if you require.

  • See full product description

The IMG Stageline MPX-206 is a 6-channel stereo DJ mixer that is equipped with four stereo input channels alongside a dedicated DJ microphone channel and a guest microphone channel for MC’s. This mixer can be mounted to a 19-inch rack mount which makes it ideal for both fixed and mobile applications including mobile entertainers, schools and colleges, music venues, live events, club and bar venues, and theatres.

Each of the four stereo inputs comes with a dedicated LED level display so you can see when you’re overloading the mixer, as well as 3-band EQ controls, a gain control and cut functions alongside switchable line/phono inputs. The dedicated DJ microphone channel features a talk-over function that ducks your music when you’re using the microphone; both microphone channels come with a gain control as well as 2-way EQ controls. There is also a single stereo effect send/return channel for external effects processors.

The versatile crossfader features assignments switches for channels one through four with kill functions to suppress high, mid, and bass frequencies individually. An adjustable headphone output allows you to monitor your cue’d tracks with ease while the two master channel outputs can be assigned to any of the four channels. For ease of use in low lighting environments, there is a gooseneck lamp connection and can be mounted on to a 19-inch rack mount if you require.

The rear of the mixer comes with two master outputs; each comes with a beat LED, as well as a booth output and a dedicated record output so you can easily record your mixes. There is also line and phono inputs for both channel one and two as well as two line inputs for channels three and four while an LED level display allows you to switch between both master output channels.

IMG Stageline MPX-206 6-Channel Stereo DJ Mixer Key Features:

  • 4 stereo input channels, each with separate LED level display, switchable line/phono (channels 1-2) and line/line (channels 3-4), gain control, 3-way equalizer with cut function
  • 1 DJ microphone channel with switchable automatic talkover and 1 guest microphone channel, both channels with gain control as well as 2-way tone control
  • 1 stereo effect way (send/return)
  • 2 master outputs, each with beat LED and 1 booth output
  • 1 record output
  • LED level display, switchable between both master outputs
  • Crossfader with assignment switches for channels 1-4 and cut switch function to suppress high frequencies, midrange and bass frequencies
  • Adjustable headphone output
  • Fader start for the stereo inputs (channels 1-4)
  • Connection for gooseneck light GNL-404

IMG Stageline MPX-206 6-Channel Stereo DJ Mixer Technical Specifications:

  • No. of channels: 6
  • No. of inputs: 12
  • Mic input: 1.5 mV, 2 x 6.3 mm jack
  • Line input: 150 mV, 3 x RCA L/R
  • CD input: 150 mV, 3 x RCA L/R
  • Phono input: 3 mV, 2 x RCA L/R
  • Effect return: 135 mV, 1 x RCA L/R
  • Master output: 1 V/600 Ω, 1 x 3-pole XLR L/R
  • Record output: 300 mV/600 Ω, 1 x RCA L/R
  • Monitor output: 1 V/600 Ω, 1 x RCA L/R
  • Effect send: 300 mV/600 Ω, 1 x RCA L/R
  • Headphones: ≥ 8 Ω, 6.3 mm jack
  • Gooseneck lamp: 12 V/5 W, 4-pole XLR
  • Frequency range: 20-20,000 Hz
  • THD: 0.05%
  • S/N ratio: > 50 dB
  • Equalizer bass: +15 dB, -30 dB/50 Hz
  • Equalizer midrange : +15 dB, -30 dB/1 kHz
  • Equalizer treble: +15 dB, -30 dB/10 kHz
  • Talkover: -12 dB, switchable
  • Crossfader: Yes
  • Power supply: ~ 230 V/50 Hz/14 VA
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 14 VA
  • Admiss. ambient temp.: 0-40 °C
  • Width: 482 mm
  • Height: 266 mm
  • Depth: 110 mm
  • Rack spaces RS: 6 - 19-Inch rack mountable
  • Weight: 6.5: kg
