IMG Stageline MPX-20USB USB Audio Interface Soundcard
Availability:In stock
SKU
0202860
£116.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview

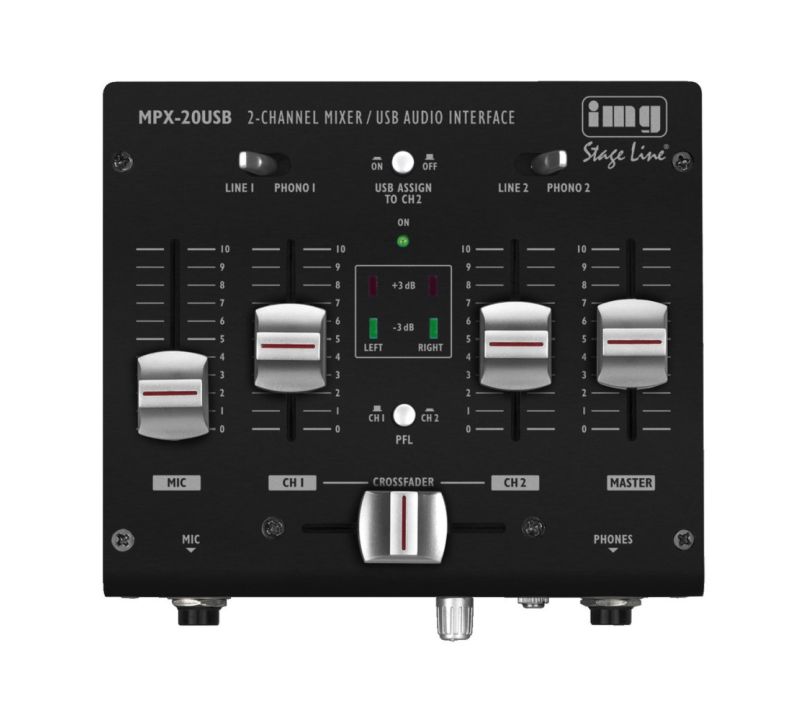

The IMG Stageline MPX-20USB is a 3-channel integrated USB audio interface. The external soundcard features a full-duplex USB port, allowing for simultaneous recording and sound reproduction.
- See full product description
The IMG Stageline MPX-20USB is a 3-channel integrated USB audio interface. The external soundcard features a full-duplex USB port, allowing for simultaneous recording and sound reproduction. The MPX20USB also features a crossfader, an LED level display and pre-fader listening (CUE) to the stereo input channels via adjustable headphone output.
There are several connections on the unit, which include a microphone input channel, two stereo input channels, one stereo output channel (master) and one stereo record output. The power supply is via a USB interface or an optional power supply with a USB port. These features are encased in a compact yet sturdy, robust metal housing.
- 3-channel stereo DJ mixer, with USB interface. Plug and mix!
- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC as well as for recording mixings onto a PC
- 1 microphone input channel
- 2 stereo input channels, switchable line/phono and USB/line/phono
- 1 stereo output channel (master)
- 1 stereo record output
- Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output
- Crossfader
- LED level display
- Robust metal housing of compact size
- Power supply via USB interface or optional power supply with USB port
- No. of channels: 4
- No. of inputs: 5
- Mic input: 1 mV, 1 x 6.3 mm jack
- Line input: 450 mV, 2 x RCA L/R
- Phono input: 9 mV, 2 x RCA L/R
- Master output: 1 V, 1 x RCA L/R
- Record output: 1 V, 1 x RCA L/R
- Headphones: ≥ 8 Ω, 1 x 3.5 mm jack, 1 x 6.3 mm jack
- USB: yes
- Frequency range: 20-20,000 Hz
- THD: 0.1%
- S/N ratio: 63 dB, unweighted
- Crossfader: yes
- Power supply: DC 5 V/500 mA, via USB interface
- Operating voltage (possible alternative): DC 5 V
- Power supply (possible alternative): DC 500 mA
- Admiss. ambient temp.: 0-40 °C
- Width: 150 mm
- Height: 70 mm
- Depth: 140 mm
- Weight: 700 g
- Packing dimensions (W x H x L): 0.18 x 0.1 x 0.245 m
- Gross weight: 0.937 kg
- Net weight: 0.725 kg
