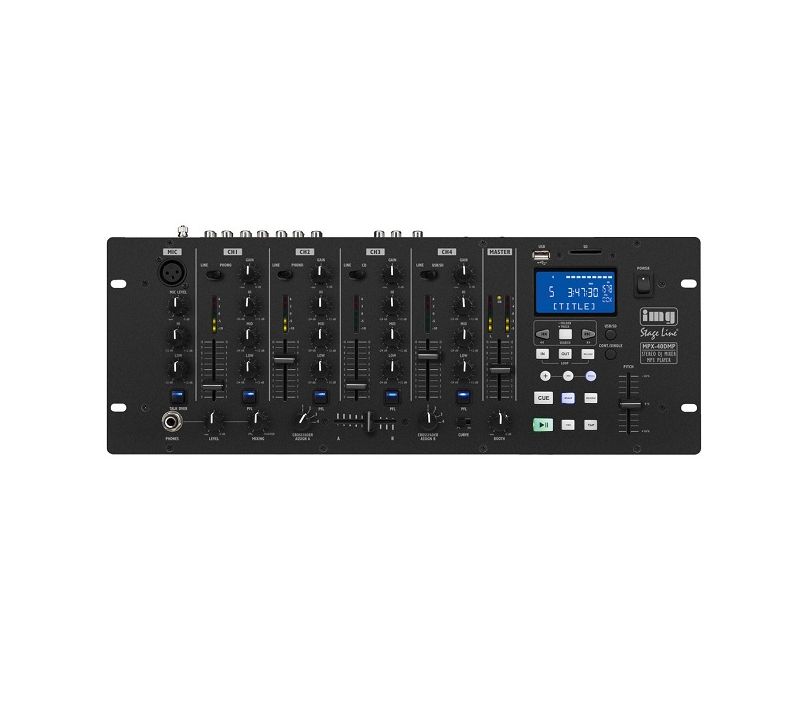

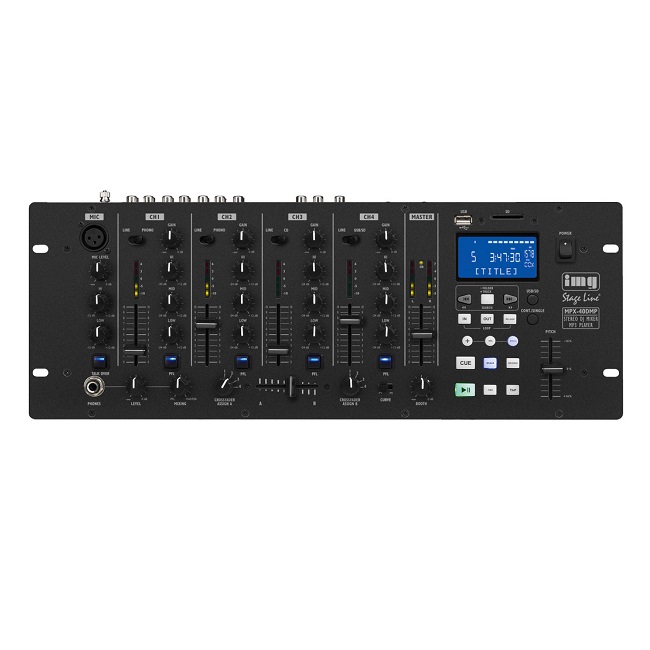

IMG Stageline MPX-40DMP 4-Channel DJ Mixer with Integrated MP3 Player

Availability:Out of stock
SKU
IMG Stageline MPX-40DMP 4-Channel DJ Mixer with MP3 Player
£232.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The IMG Stageline MPX-40DMP is a 4-channel DJ mixer that comes with all essential DJ functions and controls as well as an integrated MP3 player that allows you to play music from off of your digital media devices. This mixer can be mounted to a 19-inch rack mount if required.

  • See full product description

The IMG Stageline MPX-40DMP is a 4-channel DJ mixer that is equipped with an integrated MP3 player with a USB audio interface and USB and SD card inputs for your convenience. The mixer features a dedicated DJ microphone channel with adjustable 2-band EQ controls and manual talk over switch that ducks the music when you’re using the microphone. This mixer can be mounted to a 19-inch rack mount if you require which makes it appropriate for mobile entertainers, schools and colleges, live events, music venues, club and bar venues, and theatres.

The MPX-40DMP features four stereo input channels, two channels feature a switchable line or phono input, while the third channel makes use of a line/CD input and the fourth channel offers a line input as well as a USB/SD input for digital media devices. Each channel is equipped with a gain control, 3-band equaliser, pre-fade listen for monitoring your cue’d tracks, and LED level indicator that allows you to see if your signals are overloading.

Any of the channels can be assigned to the two master volume faders while the crossfader comes with curve adjustment switches and a hamster (reverse) switch for creative mixing techniques. The master output also comes with a stereo LED level indicator so you can see if you’re master channel is being overloaded. An adjustable headphone output allows you to monitor each channel while cueing up tracks or monitor the master output.

The MPX-40DMP is equipped with an integrated MP3 player with a USB input and SD card slot so you can connect your digital media devices directly to the mixer. A blue backlit display enables you to view the MP3 player’s functions while menu buttons and controls allow you to navigate the various settings and features. The MP3 player comes with a loop and reloop function alongside brake and reverse functions and also a +/-16% pitch control for beat matching with precision. Thanks to the high-quality coloured backlit rubber buttons allow you to view all features and controls in low lighting environments.

IMG Stageline MPX-40DMP DJ Mixer with Integrated MP3 Player Key Features:

  • 4 stereo input channels, switchable 2 x line/phono, 1 x line/CD and 1 x line/USB (SD)
  • Input channels, each with gain control, 3-way equalizer and PFL push-button, with LED level display of the stereo master
  • 1 DJ microphone channel, adjustable, with 2-way tone control and manual talkover
  • Adjustable headphone output with pre-fader listening to the stereo input channels and the master output
  • Crossfader with assignment switches and switchable characteristic
  • Master output with stereo LED level display
  • Additional outputs booth and record
  • MP3 player with USB interface and SD/MMC card slot:
  • USB storage media can be connected directly (e.g. USB flash drive)
  • For SD/MMC cards up to 32 GB (FAT16/FAT 32), available at option
  • Supports ID3 tags
  • Pitch control: ±16%
  • Loop/reloop function
  • Brake function and reverse function
  • Safe operation also in darkness due to high-quality rubber buttons with colour illumination
  • Blue backlit display

IMG Stageline MPX-40DMP DJ Mixer with Integrated MP3 Player Technical Specifications:

  • No. of channels: 5
  • No. of inputs: 8
  • Mic input: 4 mV, 1 x 3-pole XLR, bal.
  • Line input: 300 mV, 4 x RCA L/R
  • CD input: 300 mV, 1 x RCA L/R
  • Phono input: 6 mV, 2 x RCA L/R
  • Master output: 870 mV, 1 x 3-pole XLR L/R, 1 x RCA L/R
  • Record output: 800 mV, 1 x RCA L/R
  • Booth output: 950 mV, 1 x RCA L/R
  • Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
  • USB: Yes
  • Frequency range: 20-20,000 Hz
  • THD: 0.04%
  • S/N ratio: > 60 dB
  • Equalizer bass: +12 dB, -24 dB/30 Hz (channels 1-4), ±12 dB/70 Hz (DJ mic)
  • Equalizer midrange: +12 dB, -24 dB/1.2 kHz (channels 1-4)
  • Equalizer treble: +12 dB, -24 dB/15 kHz (channels 1-4)
  • ±12 dB/7 kHz (DJ mic)
  • Talkover: -15 dB, manual
  • Crossfader: Yes
  • Media player: MP3, USB, SD, MMC
  • Power supply: ~ 230 V/50 Hz/20 VA
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation 20 VA
  • Admiss. ambient temp.: 0-40 °C
  • Width: 482mm
  • Height: 190mm
  • Depth: 115mm
  • Weight: 3.4kg
