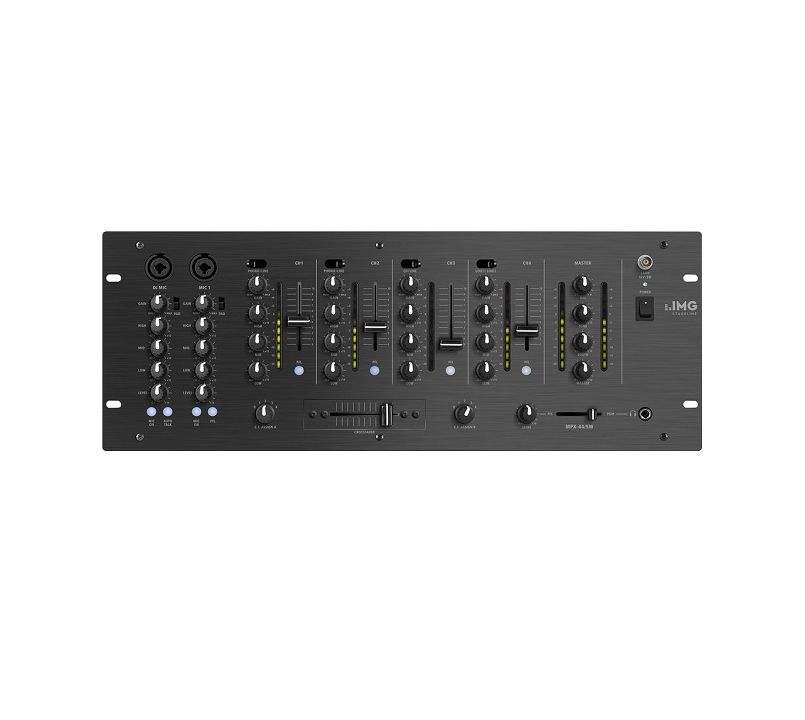

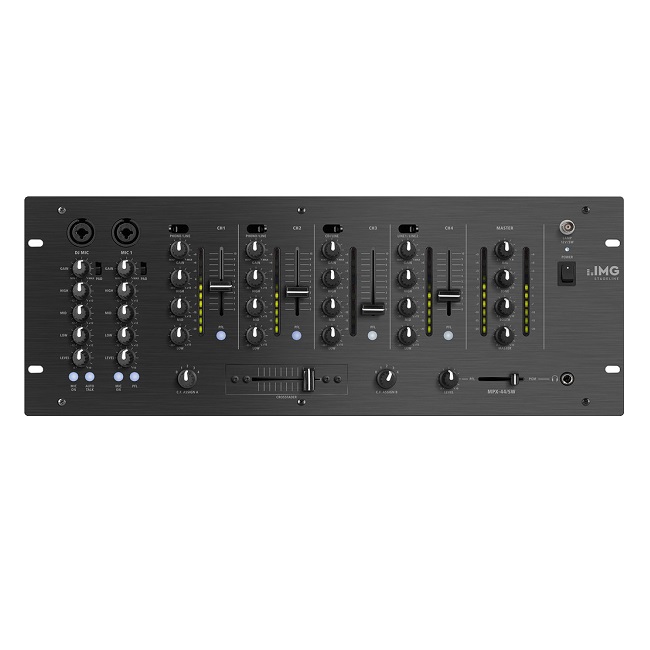

IMG Stageline MPX-44 6-Channel Stereo DJ Mixer

Availability:Out of stock
SKU
MPX-44
£284.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The IMG Stageline MPX-44 is a 6-channel mixer that comes equipped with four input channels alongside two dedicated microphone inputs and is equipped with a plethora of essential DJ functions and controls.

  • See full product description

The IMG Stageline MPX-44 is a 6-channel DJ mixer equipped with four input channels alongside two dedicated microphone channels as well as a plethora of essential DJ functions. This DJ mixer can be mounted to a 19-inch rack mount if you require and is perfect for all styles of DJs and mobile and fixed installations including mobile entertainers, schools and colleges, club and bar venues, live events, and theatres.

The MPX-44 features six inputs consisting of four stereo inputs, two with switchable phono/line inputs and two with line inputs alongside two dedicated microphone channels, each channel comes with an LED level display so you can view when you’re overloading the mixer with too loud a signal. Each channel comes equipped with a gain control, 3-band equaliser, and EQ kill controls for creative harmonic mixing. The DJ microphone input comes with an automatic talk-over function that ducks the music’s volume when you’re using it as well as a PAD switch and an on-air switch. The other microphone input also features a PAD switch and on-air switch. All switches will be illuminated in blue when activated.

A dedicated headphone output with volume control allows you to monitor all channels or any cue’d track as well as the microphone inputs. Each of the channels can be assigned to the master volume faders while the versatile crossfader with assignment switches can easily be replaced if you require a different crossfader. The master output also comes with stereo LED level indicators so you can easily view when you’re overloading the mixer. There are also additional booth and recording outputs so you can monitor in the booth with ease while also recording your mixes directly to an audio recorder. For your convenience, there is a gooseneck light input so you can view the whole mixer during low-level lighting situations.

IMG Stageline MPX-44 6-Channel Stereo DJ Mixer Key Features:

  • 6 input channels (4 stereo ways, 2 microphone ways)
  • Stereo input channels, switchable 2 x phono/line and 2 x line/line, with LED level display of the stereo master
  • Input channels, each with gain control and 3-way equalizer, stereo input channels with cut function
  • DJ mic with automatic talkover, PAD switch and on-air switch
  • Mic with PAD switch and on-air switch
  • Switches illuminate blue when activated
  • Adjustable, crossfader-controlled headphone output with pre-fader listening (PFL) to the stereo input channels and mic
  • Replaceable crossfader with assignment switches
  • Especially easy-sliding high-quality faders
  • Master output with stereo LED level display
  • Additional outputs booth and zone
  • Connection for gooseneck light GNL-204 or GNL-205
  • No. of channels: 6
  • No. of inputs: 12
  • Mic input: 1.5 mV, 2 x 6.3 mm jack
  • Line input: 150 mV, 5 x RCA L/R
  • CD input: 150 mV, 1 x RCA L/R
  • Phono input: 3 mV, 2 x RCA L/R
  • Master output: 1 V/600 Ω, 1 x 3-pole XLR, 1 x RCA L/R
  • Record output: 0.5 V/600 Ω, 1 x RCA L/R
  • Monitor output: 1 V/600 Ω (zone), 1 x RCA L/R
  • Booth output: 1 V/600Ω, 1 x RCA L/R
  • Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
  • Gooseneck lamp: 12 V/5 W, 1 x BNC
  • Frequency range: 20-20,000 Hz
  • THD: 0.1%
  • S/N ratio: 61 dB, unweighted
  • Equalizer bass: +12 dB, -12 dB/50 Hz (mic), +15 dB, -30 dB/50 Hz (channels 1-4)
  • Equalizer midrange: +12 dB, -12 dB/1 kHz (mic), +15 dB, -30 dB/1 kHz (channels 1-4)
  • Equalizer treble: +12 dB, -12 dB/10 kHz (mic), +15 dB, -30 dB/10 kHz (channels 1-4)
  • Talkover: -16 dB, automatic
  • Crossfader: Yes
  • Power supply: ~230 V/50 Hz/20 VA
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 20 VA
  • Admiss. ambient temp.: 0-40 °C
  • Width: 482mm
  • Height: 177mm
  • Depth: 105mm
  • Rack spaces, RS: 4 - 19-inch rack mountable
  • Weight: 4kg
