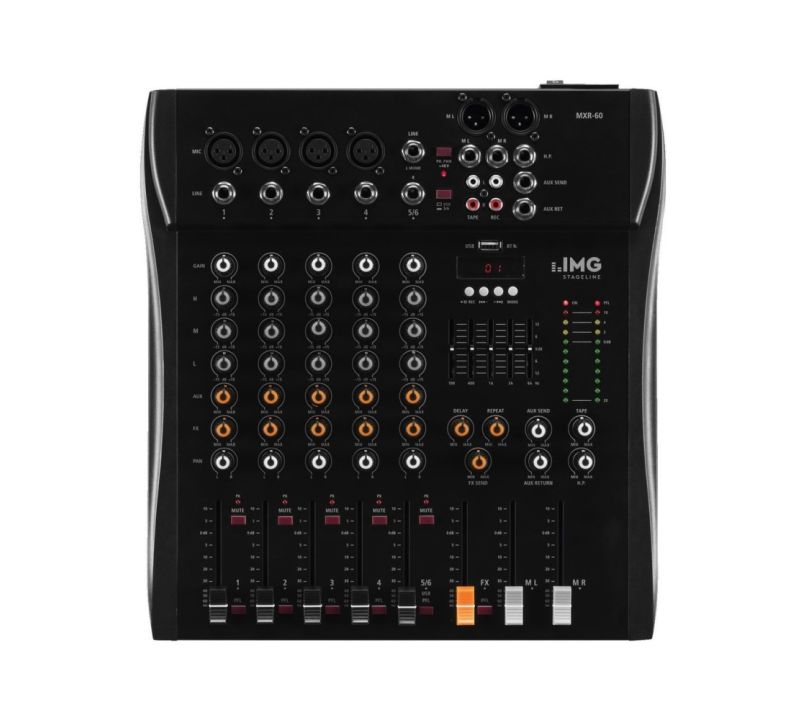

IMG Stageline MXR-60 USB Audio Interface Soundcard
BACK-ORDER - Estimated Stock Arrival: 10-12-2024
SKU
0200630
£169.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The IMG Stageline MXR-60 is a 6-channel integrated USB audio interface that produces excellent sound.
- 6-channel audio mixer
- Integrated MP3 player
- Bluetooth receiver.
- Integrated USB audio interface
- Full-duplex USB port
- 5-band stereo graphic equalizer
- See full product description
The IMG Stageline MXR-60 is a 6-channel integrated USB audio interface that produces excellent sound. It features four onboard mono input channels with gain control, a stereo input channel with a 3-way equaliser and balance control, and adjustable aux inputs, so you have everything you need to experience the best audio in the studio or live on stage. In addition, the external soundcard features a full-duplex USB port, allowing for simultaneous recording and sound reproduction.
The MXR60 is ideal for vocals, instruments, and other sounds and guarantees excellent sound at all times. Controls for each channel, including a powerful 5-band EQ, allowing you to shape your tone, and with a high-quality DSP on board, you know this mixer will deliver.
The mixer is all about versatility. There is an MP3 player, USB interface, Bluetooth receiver, DSP delay, Stereo LED level display, Tape record/play connections and a Pre-Fader Listening (PFL).
- 6-channel audio mixer, with integrated MP3 player and Bluetooth receiver.
- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
- 4 mono input channels with gain control, 3-way equalizer and pan pot
- 1 stereo input channel with 3-way equalizer and balance control
- MP3 player
- USB interface
- Bluetooth receiver
- DSP delay, adjustable
- Adjustable aux return input and FX send output
- Tape record/play connections
- 5-band stereo graphic equalizer
- +48 V phantom power, can be activated as required
- Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output
- Stereo LED level display
- Input channels: 6
- Number of mix/mono: 4
- No. of stereo: 1
- Mic input: 2.2 mV, bal. 4 x XLR
- Line input: 50 mV (stereo), 1 x 6.3 mm jack L/R, 30 mV (mono), 4 x 6.3 mm jack
- Tape (play): 290 mV, 1 x RCA L/R
- Aux input: 420 mV, 1 x 6.3 mm jack L/R
- Master output: 880 mV, bal. 1 x XLR L/R, 880 mV, 1 x 6.3 mm jack L/R
- Effect send: 9 V, 1 x 6.3 mm jack
- Tape (rec): 400 mV, 1 x RCA L/R
- Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
- USB: yes
- Bluetooth: yes
- Frequency range: 20-20,000 Hz
- THD: < 0.03%
- S/N ratio: > 82 dB(A)
- Equalizer bass: ±15 dB/80 Hz
- Equalizer midrange: ±15 dB/2.5 kHz
- Equalizer treble: ±15 dB/12 kHz
- Equalizer: 5-band equalizer
- Phantom power: +48 V
- Power supply: ˜ 230 V/50 Hz/20 VA
- Mains voltage: ~ 230 V
- Mains frequency: 50 Hz
- Power consumption, operation: 20 VA
- Admiss. ambient temp.: 0-40 °C
- Width: 324 mm
- Height: 53 mm
- Depth: 340 mm
- Packing dimensions (W x H x L): 0.37 x 0.405 x 0.09 m
- Gross weight: 3.51 kg
- Net weight: 2.9 kg
