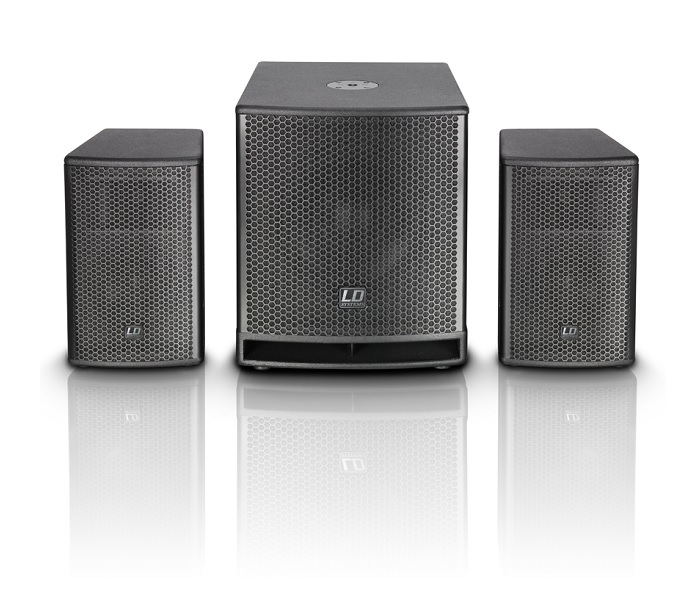

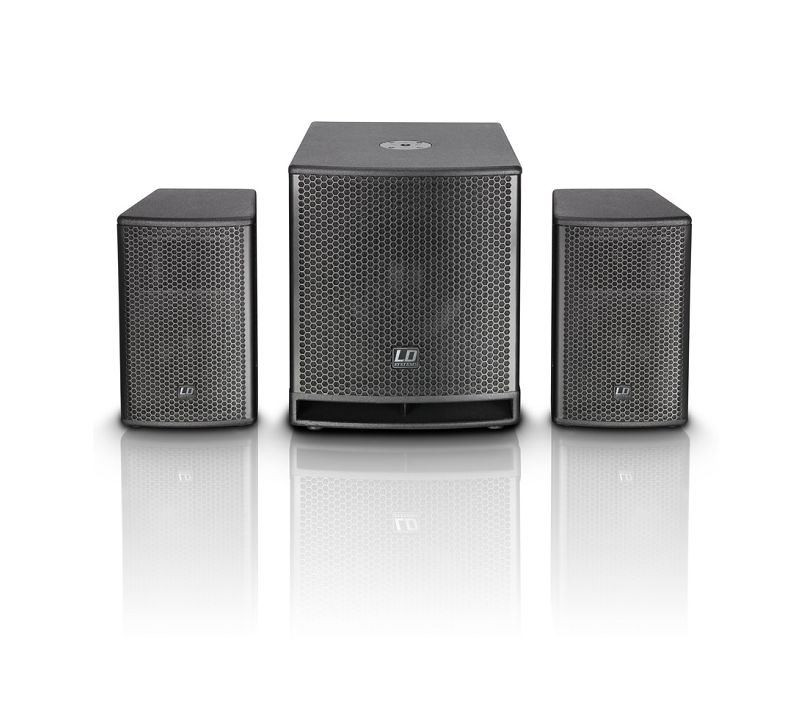

LD Systems DAVE 12 G3 - Active PA-System with DSP
Availability:Out of stock
SKU
LDDAVE12G3
£729.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
LD System's DAVE 12 G3 - Active PA-System with DSP is the perfect solution for venues, bars and clubs wanting to upgrade their in-house sound system setup. With defined bass, mids, and highs this is the system for you.
- See full product description
The LD Systems Dave 12 G3 all-in-one, compact PA system, is the ideal solution for bars and clubs looking to install high-performance speakers that can handle high-pressure environments as well as save on space.
The Dave 12 G3 speakers come with a 12" bass-reflex subwoofer, which combined with the 6.5" satellite provide a good spread of bass, mid-range and high frequencies across any venue. The built-in power amp provides the subwoofer and satellites with 1x300W + 2x120W of continuous power.
LD's Dave 12 comes with a superior quality LECC digital signal processor, which controls all critical operational functions. The DSP includes crossovers that are optimised for low-latency and specific amplitude. As well as EQs and limiters for bass, mid, and treble frequency ranges. Finally, a dedicated, dynamic compressor that controls the subwoofer and provides increased attack at low volumes.
- Product type: PA system
- Type: active
- Colour: black
- Max. SPL (continuous): 119dB
- Max. SPL (peak): 130dB
- Frequency response: 40 - 19000Hz
- Dispersion (H x V): 90 x 40
- Weight: 48,5kg
Subwoofer
- Low/mid driver dimensions: 12"
- Low/mid driver dimensions (mm): 304,8mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 2,5"
- Woofer voice coil (mm): 63,5mm
- Cabinet construction: vented
- Cabinet material: 15 mm Plywood
- Cabinet / Housing surface: texture paint
- Subwoofer width: 435mm
- Subwoofer height: 500mm
- Depth Subwoofer: 540mm
- Subwoofer features: threaded flange M20, LD Systems "Evolutive" handles
Mid/Hi System
- Midrange size: 6,5"
- Midrange size: 165,1mm
- Midrange magnet: Ferrite
- Midrange brand: Custom-made
- Midrange voice coil: 1,75"
- Midrange voice coil: 44,5mm
- Horn: CD horn
- Tweeter dimensions: 1"
- Tweeter dimensions (mm): 25,4mm
- Tweeter magnet: Ferrite
- Tweeter brand: Custom-made
- Tweeter voice coil: 1"
- Tweeter voice coil (mm): 25,4mm
- Mid/Hi system impedance: 4Ohm(s)
- Loudspeaker inputs: 1
- Speaker input connections: Speakon compatible: Closed
- Mid/Hi system cabinet material: 15 mm Plywood
- Mid/Hi system cabinet surface: texture paint
- Mid/Hi system width: 250mm
- Mid/Hi system height: 400mm
- Mid/Hi system depth: 250mm
- Mid/Hi system features: SM707 stand mount 36 mm, ergonomically shaped insert handles
Amplifier Module (integrated in Subwoofer)
- Amplifier: Class A/B
- Amplifier Output System (RMS): 540W
- Amplifier Output System (Peak): 1080W
- Amplifier Output Subwoofer (RMS): 300W
- Amplifier Output Subwoofer (Peak): 600W
- Amplifier Output Mid/Hi (RMS): 2 x 120W
- Amplifier Output Mid/Hi (Peak): 2 x 240W
- Protection circuits: short circuit, overload, limiter
- Cooling: volume-controlled fan
- Controls: sub level, volume, Subwoofer Phase Reverse, Power
- Display: limit, protect (protection circuit engaged), signal, on/off
- Operating voltage: transformer, 220 V AC - 240 V AC
- Line inputs: 2
- Line input connectors: XLR, RCA, 6.3 mm Jack
- Line output connectors: XLR
- Loudspeaker outputs: 2
- Speaker output connections: Speakon compatible
