ADJ Mirage Q6 Pak Up Lighting System - Chrome
BACK-ORDER - Estimated Stock Arrival: 08-01-2025
SKU
ADJMIR600 1226100382
Special Price £2,494.00 Was: £2,599.00 Save £105.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The ADJ Lighting Mirage Q6 PAK is an all-in-one event all-weather up-lighting system that contains six (6) IP65 certified, battery-powered lights as well as a sturdy flight case with integrated battery charging.
- 15 Degree Beam Angle
- 4-touch button OLED display on rear panel
- Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR
Battery Transceiver - 64 built-in Color Macros
- Flicker-Free Operation
- Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
- Rechargeable Lithium-Ion Battery
- Battery Charge Time: 7 Hours
- Battery Life: 40 hours (single colour)
- See full product description
Four 10W RGBA LEDs in each Mirage Q6 IP fixture provide a 15-degree beam angle. This light fixture is IP65-rated and waterproof, making it perfect for temporary outdoor installation (rain, snow, dust and sand). This fixture includes a built-in wireless DMX protocol called WiFLY EXR, which allows it to interact with a lighting controller that also utilises WiFLY EXR at a distance of up to 700 metres.
When it comes to wall cleaning, the Mirage Q6 IP fixtures are ready to use straight out of the box, thanks to an integrated carry handle and built-in feet. If necessary, an inbuilt kickstand allows you to angle the beam towards a wall or into a corner. As a result, the wash is stronger, and less light spills onto the ceiling above.
Each light fixture has an alarm system as well as on/off controls. When the alarm is triggered and someone attempts to remove the fixture, it will produce a beeping noise and glow red.
The long-lasting battery offers a single-colour endurance of 40 hours (20 hours changing colours). This device's battery takes 7 hours to completely charge.
Source:
- 4 x 10-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
- 50,000 Hour Average Life
- LUX: 9903 @ 2M; 2303 @ 4M
Optics:
- 11-degree beam angle
Control:
- 11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels
Control protocol:
- WiFLY EXR Wireless DMX, UC-IR (Included)
5 Operation modes:
- RGBA Dimmer Mode, Auto Run Mode (13 programs, & 1 colour/fade combo mode), Static Colour mode and Wireless DMX Control
- LED pulse and strobe effect (0.2Hz-11Hz)
- Flicker-Free Operation
Electronic Dimming:
- 0 - 100% with 6 dim modes and 4 dim curves
- Run all night – No duty cycle
- IP65 Rated for temporary outdoor use
- Built-in kickstand to angle fixture when sitting on the floor
- Carrying handle
- Built-in alarm system with On/Off
- Battery charge indicator on each fixture
Electrical:
- Power Input: DC 17.3V
- Amperage Draw: 2A
- 40W Max Power Consumption (each unit)
- Battery Type: fixed lithium battery
- Battery Energy: 162.8WH (Watt Hours)
- Battery Weight: 0.84 kg.
- Battery Voltage: 14.8V
- Battery Capacity: 11000mAh (Typical Capacity)
- Battery Charge Time: 7 Hours
- Battery Life: 20 hours (changing colours); 40 hours (single colour)
Connections:
- Contact Charging system. 6x Charging bases and power supplies included in the flight case
Dimensions & Weight:
- Length: 143mm
- Width: 143mm
- Height: 211mm
- Weight: 2.8kg.
PAK SPECIFICATIONS:

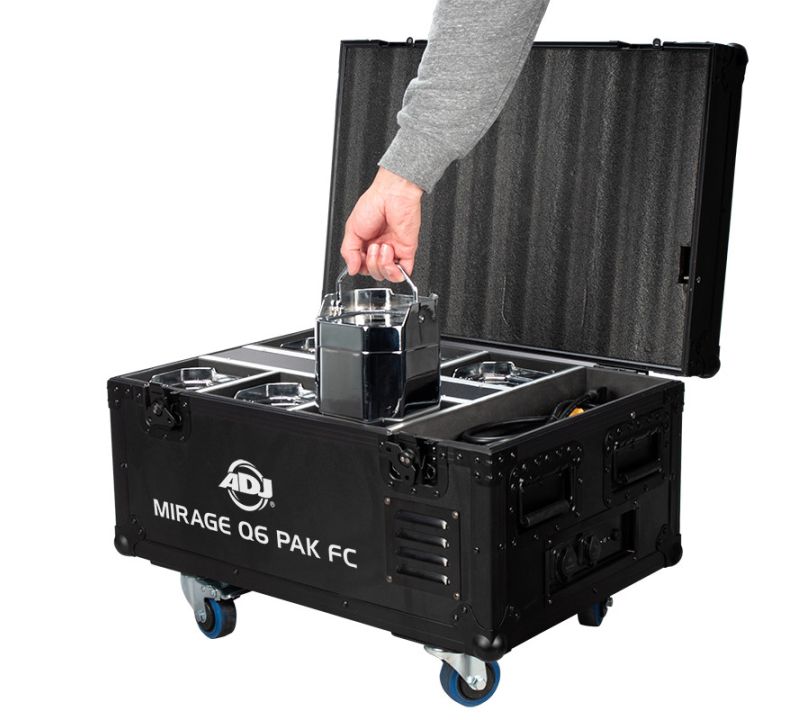

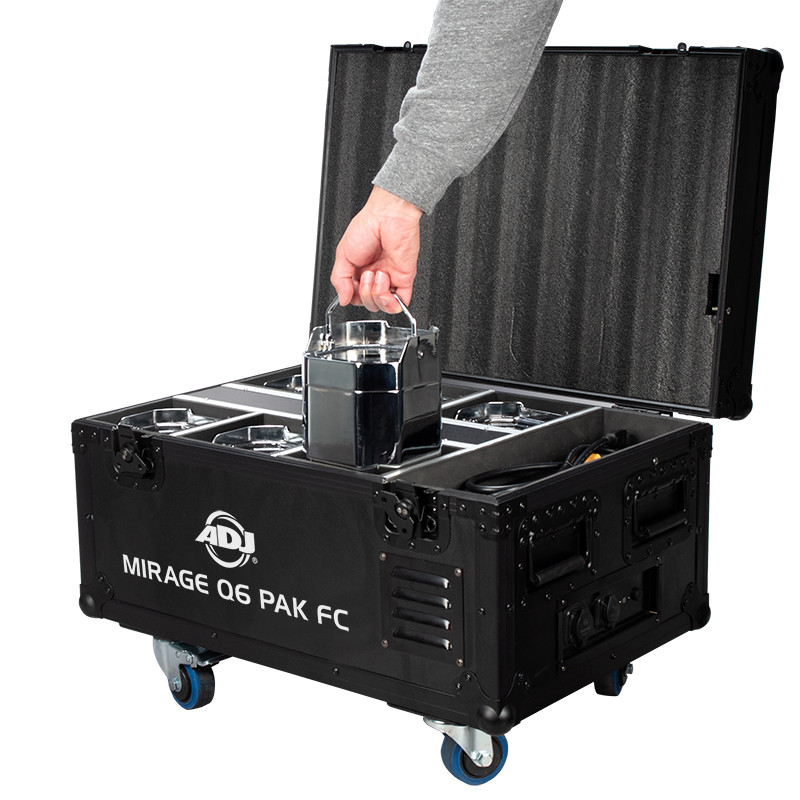

- Mirage Q6 PAK Includes:
- 6 MIRAGE Q6 IP Fixtures
- 1 MIRAGE Q6 FC Flight Case
- 6 MIRAGE Q6 IPCB Charging bases and power supplies
- 1 UC-IR Wireless Infrared Controller
- 1 IP65 Locking Power Cable
PAK Features:
- Houses / Transports and Charges 6 MIRAGE Q6 IP™ fixtures
PAK Dimensions & Weight (loaded case with 6 fixtures): - Length: 672mm
- Width: 461mm
- Height: 449mm
- Loaded Weight: 44.4 kg
PAK Electrical:
- Power Input: AC100VAC~240VAC, 50/60Hz
- IP65 Power Locking Input and Output
- Max Power Consumption: 400 Watts
- Power Draw: 4A
- Charge status indicator
- -10°C to 45°C
