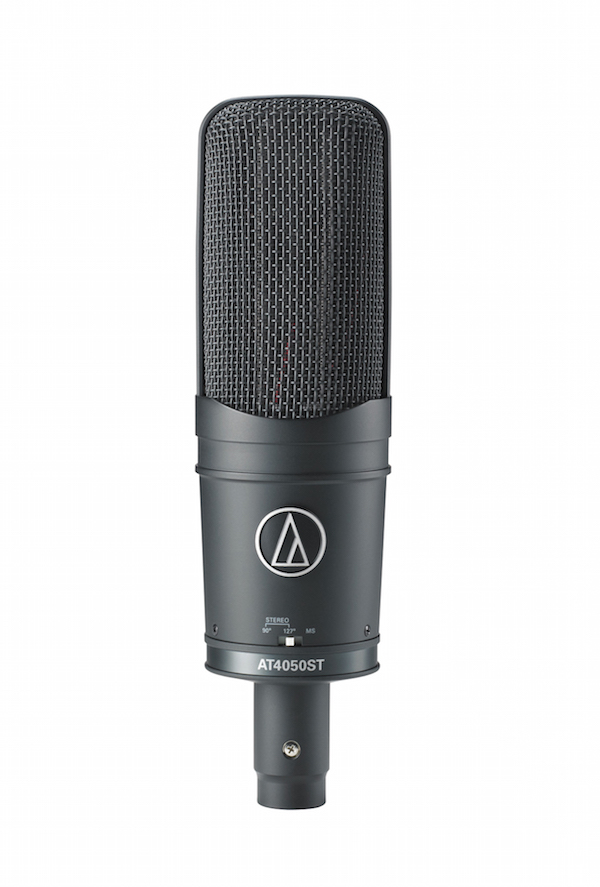

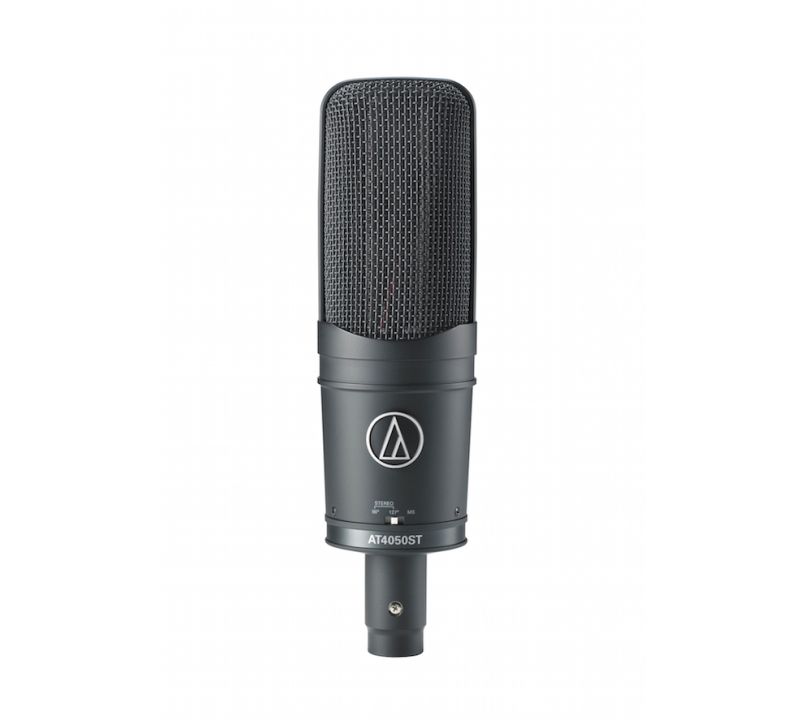

Audio Technica AT4050ST Studio Condenser Microphone
BACK-ORDER - Estimated Stock Arrival: 07-04-2025
SKU
AT4050ST
Special Price £1,329.00
Earn 6,645 Reward Points
Was: £1,369.00 Save £40.00
Finance options available - click here to find out more
i
i
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
Offering the realism of a live sound field, the AT4050ST is a side-address condenser with cardioid and figure-of-eight elements.
- See full product description
Offering the realism of a live sound field, the AT4050ST is a side-address condenser with cardioid and figure-of-eight elements configured in a Mid-Side arrangement. This innovative stereo condenser allows sound recordists the choice of selecting a left-right stereo output or choosing discrete Mid-Side signals for later manipulation, a remarkable flexibility. The microphone’s dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range. Its transformerless circuitry virtually eliminates low-frequency distortion.
- Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcement
- Independent cardioid and figure-of-eight condenser elements
- Switch selection of Mid-Side mode and two internally matrixed stereo modes
- Dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphone
- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
- The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of use
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
- Integral 80 Hz high-pass filter switch and 10 dB pad switch
- State-of-the-art design and manufacturing techniques ensure compliance with A-T’s stringent consistency and reliability standards
- Custom shock mount provides superior isolation
- Element: Externally-polarized (DC bias) condenser
- Polar Pattern: Cardioid and Figure-of-eight
- Frequency Response: 20-18,000 Hz
- Low Frequency Roll-off: 80 Hz, 12 dB/octave
- Open Circuit Sensitivity: Stereo 90°: -42 dB (7.9 mV) dB re 1V at 1 Pa
Stereo 127°: -41 dB (8.9 mV) dB re 1V at 1 Pa
Mid: -36 dB (15.8 mV) dB re 1V at 1 Pa
Side: -36 dB (15.8 mV) dB re 1V at 1 Pa - Impedance: 50 ohms
- Maximum Input Sound Level: Mid and Side: 149 dB SPL, 1 kHz at 1% T.H.D.;159 dB SPL, with 10 dB pad (nominal)
- Noise: Stereo 90°: 25 dB SPL
Stereo 127°: 16 dB SPL
Mid: 15 dB SPL
Side: 17 dB SPL - Dynamic Range (Typcial): Mid: 134 dB, 1 kHz at Max SPL
Side: 132 dB, 1 kHz at Max SPL - Signal-to-Noise Ratio: Stereo 90°: 69 dB, 1 kHz at 1 Pa
Stereo 127°: 78 dB, 1 kHz at 1 Pa
Mid: 79 dB, 1 kHz at 1 Pa
Side: 77 dB, 1 kHz at 1 Pa - Phantom Power Requirements: 48V DC, 6.4 mA typical (both channels total)
- Switches: 90°, 127°, M-S; Flat, roll-off; 10 dB pad (nominal)
- Weight: 517 g (18.2 oz)
- Dimensions: 193.0 mm (7.60") long, 53.4 mm (2.10") maximum body diameter
- Output Connector: Integral 5-pin XLRM-type
- Cable: 5.0 m (16.5') long, 8-conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end
- Accessories Furnished: AT8449 shock mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; microphone dust cover; protective carrying case
- Audio-Technica Case Style: R1
