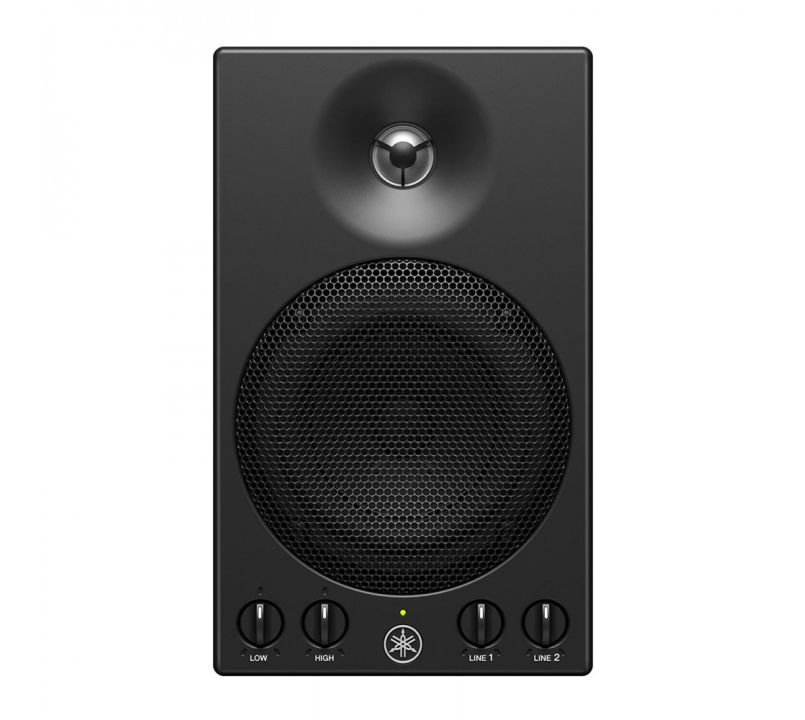

Yamaha MSP3A Powered Monitor Speaker

BACK-ORDER - Estimated Stock Arrival: 07-01-2024
SKU
CMSP3AUK
£209.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The Yamaha MSP3A is an active reference monitor speaker that features a 4-inch woofer alongside an 1/8-inch tweeter and dual front-facing bass ports that work to deliver a huge sound.

  • Ideal for music production, post-production, gaming and general listening
  • New Twisted Flare Port Technology - for powerful clean sounding bass
  • Convenient Front-panel volume and tone controls
  • Integrated M5 fixtures for versatile mounting options
  • See full product description

The Yamaha MSP3A is an active reference monitor speaker that comes equipped with a 4-inch woofer alongside a 1/8-inch tweeter and two front-facing bass ports which all work in perfect harmony to deliver a thick, full-range sound. Although compact in size the MSP3A speaker delivers pristine, reference quality sound that faithfully reproduces your audio whether you’re mixing down or recording directly into your DAW. This loudspeaker makes a great addition to any existing setup and is perfect for both home or as part of a professional studio setup thanks to the compact build and exceptional sound.

The Yamaha MSP3A studio monitor makes use of a two-way bass reflex design alongside a built-in power amplifier that has been optimised for the speaker units and ensures clear natural sound. The integrated power amp offers 22w of power directly to the drivers, which provide you with a huge sound. A built-in magnetic shield works to prevent interference with your monitor TV, computer, and phone and acts like a Faraday cage that stops unwanted clicks and pops from ruining your sound, making it perfect for post-production studios.

The rear of the speaker is equipped with a range of audio connections that let you connect to a variety of audio sources and equipment. An XLR connector allows for a direct connection to a +4dB mixer output while RCA connectors and a ¼-inch TRS Jack input let you connect to electronic musical instruments such as keyboards and synthesisers. A tone control gives you the ability to optimise your sound according to your monitoring environment and effectively compensates for anomalies that are caused by speaker placement or room resonance. The bottom of the MSP speaker features threaded holes that can be used to attach an optional bracket for mounting to a ceiling or wall. Using the BMS-10A mic stand adapter, you can mount the speaker to a standard microphone stand.

  • Compact monitor speaker for music production, post-production, gaming and multimedia work
  • Excellent sound reproduction with high-end sonic accuracy
  • Custom Twisted Flare Port technology delivers clean and precise bass response
  • XLR/TRS line inputs for use with all compatible professional equipment
  • Front panel volume and tone controls
  • Integrated mounting points for ceiling and wall mounting brackets and mic stand adaptor options

Speaker type: 2-way powered speaker, Bass-reflex type (Twisted Flare Port)

Frequency response: (-10dB): 67Hz - 22kHz

Components:

  • LF: 4-inch (10 cm) Cone
  • HF: 0.8-inch (2.2 cm) Dome

Crossover: 4kHz

Output power: 22W

Maximum Output Level: (Measured peak, IEC noise@1m): 99dB SPL

Input sensitivity: LINE 1 : -10 dBu, 10kΩ (RCA), LINE 2 : +4.0 dBu, 10kΩ (Combo)

I/O connectors: LINE 1 : RCA, LINE 2 : Combo (XLR/TRS phone)

Indicators: Power ON (Green LED)

Power requirements: May vary depending on region : 120V 50/60Hz, 110 – 120V 50/60Hz, 230V 50/60Hz, 220 – 230V 50/60Hz, 220V 50Hz, 240V 50Hz

Power consumption: 30W

Others: Level control (LINE1, LINE2); Tone control (LOW = Center, REF = 100Hz : MIN -3.0 ± 2.0 dB, MAX +3.0 ± 2.0 dB; HIGH = Center, REF = 10kHz : MIN -3.0 ± 2.0 dB, MAX +3.0 ± 2.0 dB)

Dimensions: (WxHxD): 144mm (5-5/8") x 236mm (9-1/4") x 166mm (6-5/8")

Net weight: 3.6kg (7.9 lbs.)

Accessories: Power cord, Owner's manual

Flying and mounting hardware: 2 x M5 (Depth 15)
