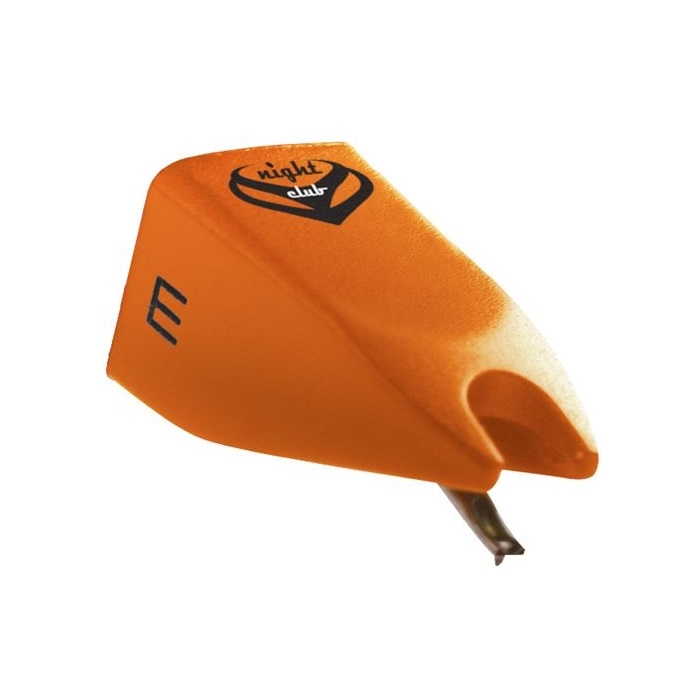

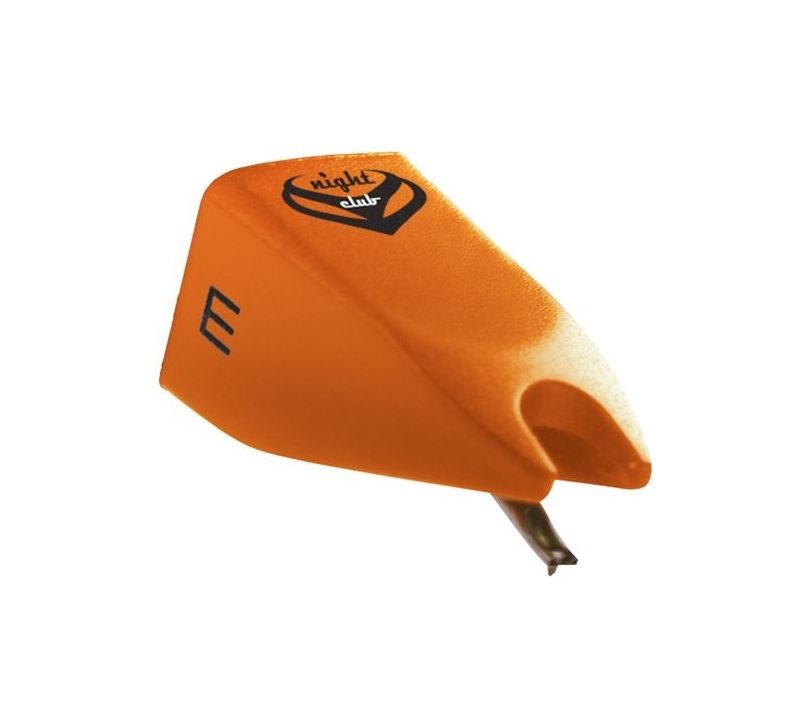

Ortofon Nightclub MK2 Replacement Stylus
Availability:In stock
SKU
0020151
£64.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Ortofon Night Club Mk2 replacement stylus features several improvements that enhance the performance of the cartridge in both club and studio environments.
- See full product description
- Buy 2 for £63.00 each and save 2%
The Ortofon Night Club MK2 replacement stylus has been re-engineered and boasts several sonic improvements that enhance the performance of the cartridge in both club and studio environments. The replacement stylus cartridge provides you with an increased voltage for an energetic sound and an enhanced performance from integrated phono preamps like the ones found on DJ mixers. The Night Club Mk2 high-end cartridge offers a broad frequency response alongside an elliptical needle that sounds excellent when scratching.
- Output voltage at 1000Hz, 5cm/sec: 8 mV
- Channel balance at 1kHz: 1,5 dB
- Channel separation at 1kHz: 23 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at -3dB: 20-22.000 Hz
- Frequency response: 20-20.000 Hz +/- 1,5 dB
- Tracking ability at 315 Hz at recommmende tracking force: 80 μm
- Compliance, dynamic lateral: 20 μm/m N
- Stylus type: Special Elliptical
- Stylus tip radius: r/R 13/25 μm
- Tracking force range: 2,0-5,0 g (20-50 mN)
- Tracking force recommended: 3,0 g (30 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 1.000 Ohm
- Internal inductance: 580 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200-600 pF
- Cartridge weight: 18,5 g
