Q-Audio QWM 1960 V2 BP Dual Channel Wireless UHF Microphone System
BACK-ORDER - Estimated Stock Arrival: 07-01-2024
SKU
QWM1960V2
£209.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview

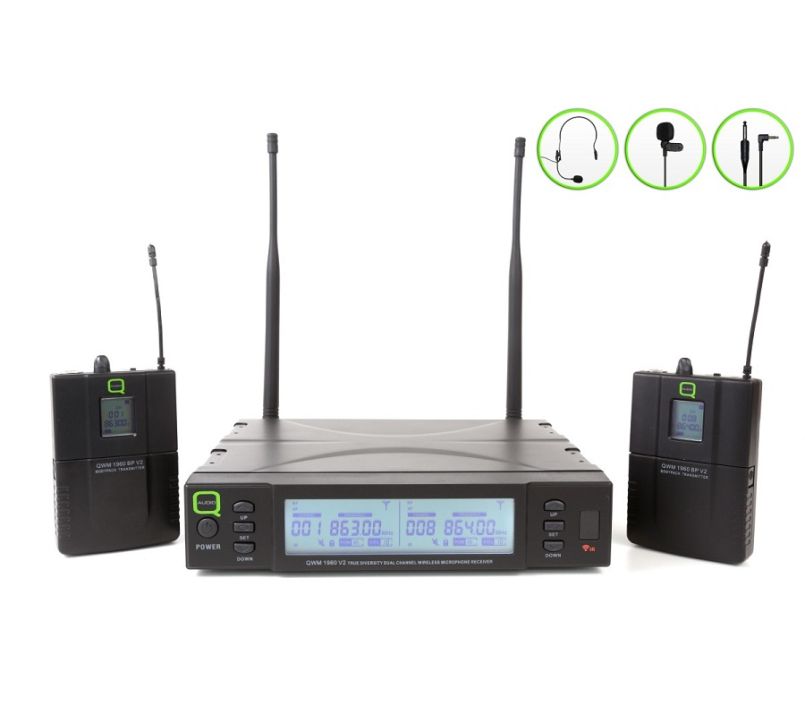

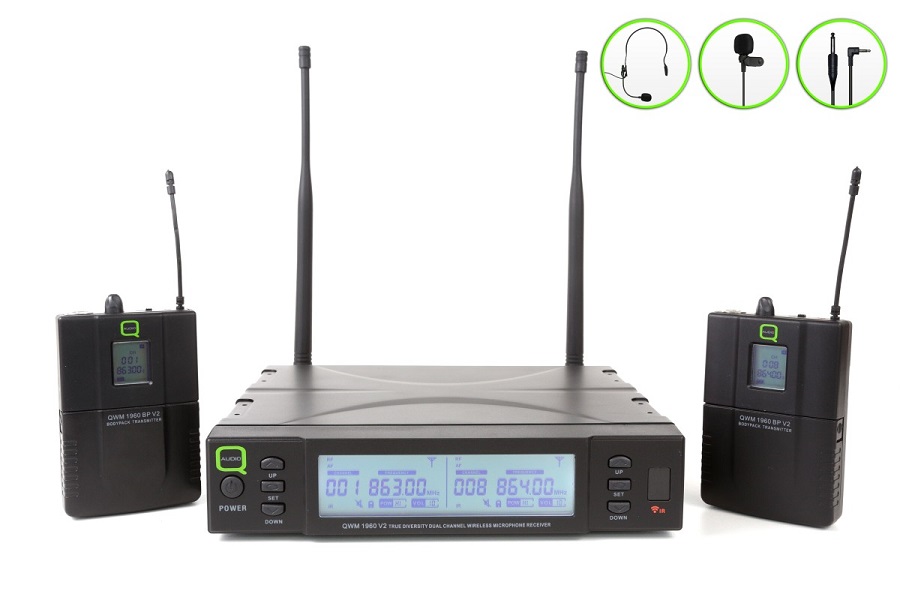

The Q-Audio QWM 1960 V2 BP is a professional dual channel wireless UHF microphone system that includes two headset microphones alongside two bodypack transmitters and a receiver.
- See full product description
The Q-Audio QWM 1960 V2 BP is a dual channel UHF wireless microphone system that includes two headset microphones alongside two bodypack transmitters and one receiver. This wireless system is more than ideal for vocalists and singers, conferences, schools, theatres and public speakers.
The QWM 1960 V2 BP operates on two set frequency bands which are UHF 863.0 to 865.0MHz and 606.0 to 614.0MHz and comes with an automatic frequency stabilizer which means you’ll always get a strong, clear signal coming into the receiver. The receiver features two antennas alongside a digital display that lets you operate the systems settings as well as a frequency response of 40Hz all the way to 15kHz which is perfect for vocals. You can find two balanced XLR outputs and one unbalanced 6.35mm jack mixed output that easily connects to various PA equipment without a problem. The long battery life gives you 5 hours of continuous use while the 50-metre working distance means you have the freedom to move around without having to worry about the microphones disconnecting.
- UHF Dual Channel True Diversity Wireless bodypack and mics system
- Multi-channel UHF PLL receiver and 2 bodypack transmitters
- Large backlit display with multiple status indicators
- ACT infrared pairing of bodypacks to receiver
- 2 x balanced XLR outputs
- 1 x unbalanced 6.35mm jack mixed output
- Includes receiver, 2 x bodypacks, 2 x headset mics,
- 2 x lavalier/lapel mics 2 x guitar/instrument leads,
- plus batteries, PSU and audio cable
- High efficiency battery consumption design
- 2 x adjustable/removable high gain antenna
- Two systems can be connected for 19 inch rackmount
- Working distance: 50 meters
- Continuous usage: 5 hours
- 16 channel frequency range:
- UHF 863.0 to 865.0 MHz
- Frequency stabilisation: <±30ppm
- Dynamic range: >90dB
- Total harmonic distortion: <0.5%
- Frequency response: 40Hz-15Hz±3dB
- Audio output level: 400mV unbalanced/balanced
- Signal to noise ratio: >90dB
- Image and spurious rejection: >80dB
- Border upon channel rejection: >80dB
- Receiving sensitivity: 5dBuV
- De-emphasis: 75uS
- Power supply DC 17V/300mA
- Power consumption: 5w
- Receiver dimensions (WxDxH): 210 x 185 x 45mm
- Transmitter power: 10mW (max)
- Modulation type: FM
- Max deviation: ±25KHz
- Spurious emission: >40dB
- Bodypack dimensions (WxDxH): 65 x 35 x 160mm
- Bodypack battery voltage: 3V (2 x 1.5V AA batteries)
