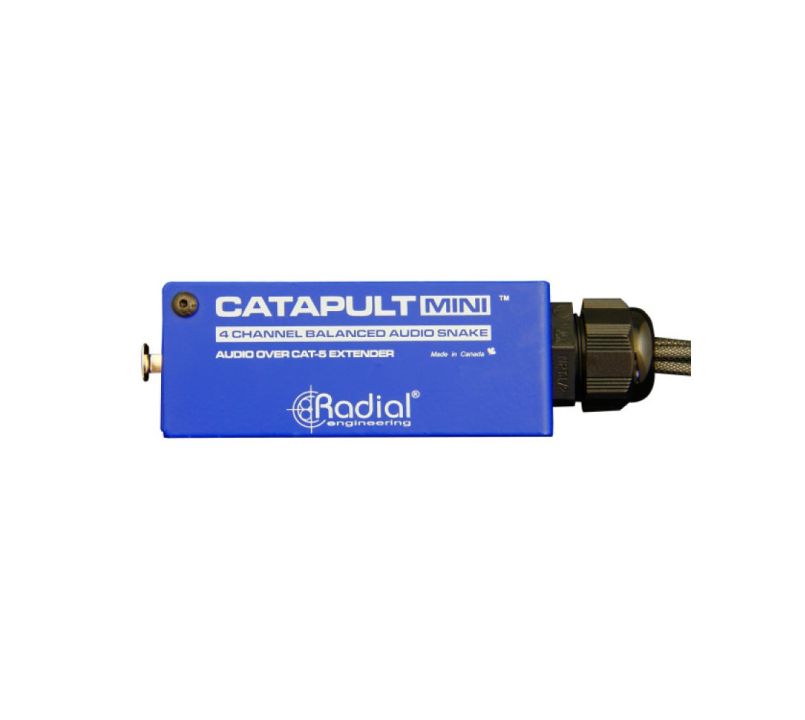

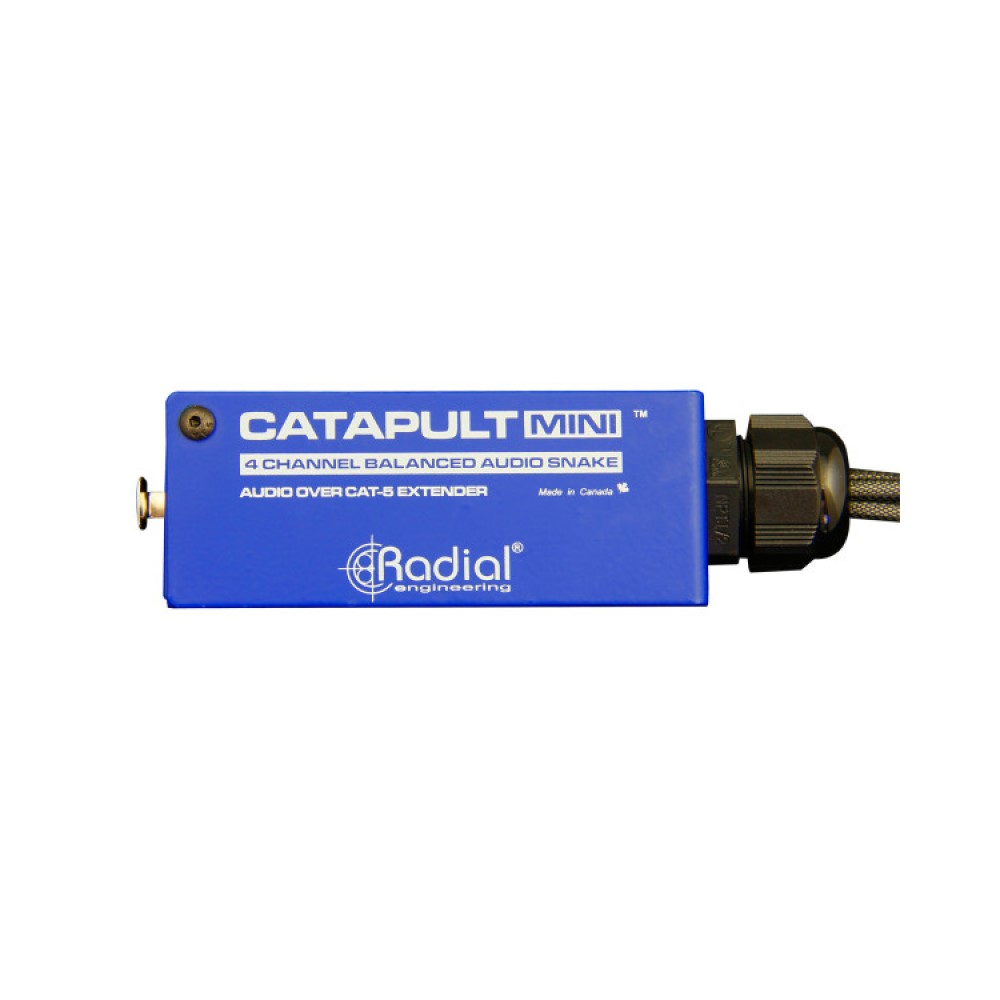

Radial Catapult Mini TX 4-Channel Transmitter
In-stock with brand - Estimated delivery 7-10 days
SKU
R800-8028-00
£157.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Radial Catapult Mini System functions similarly to a normal four-channel analogue audio snake, allowing you to transport mic or line-level signals from one location to another with no signal loss, noise, or interference, and no digital audio conversion required.
- See full product description
The Radial Catapult Mini System functions similarly to a normal four-channel analogue audio snake, allowing you to transport mic or line-level signals from one location to another with no signal loss, noise, or interference, and no digital audio conversion required. The Catapult system is unique in that it uses Cat 5 Ethernet wire, which is widely available, lightweight, and inexpensive. Simply connect a shielded Cat 5 cable between any two Catapult modules, and they will use the cable's analogue conductors to deliver four balanced audio lines to any destination.
- Audio circuit type: Passive splitter
- Frequency response: 7Hz ~ 20KHz
- Dynamic range: 140dB
- Total harmonic distortion: 0.0005% @ 1kHz
- Common Mode Rejection Ratio: >103dB
- Maximum Input: +35dBu
- Input Connectors: XLR, TRS, RJ45 (model dependant)
- Output Connectors: XLR, TRS, RJ45 (model dependant)
- Construction: 16-gauge steel chassis & outer shell
- Size (L x W x D): 4.125" x 1.56" x 1.31" (105 x 40 x 33mm)
- Weight: 0.85lb (0.4kg)
- Shipping size (L x W x D): 6.25" x 4.25" x 3" (159 x 108 x 76mm)
- Shipping weight: 1.1lb (0.5kg)
- Power: Passive, no power required
- Conditions: For use in dry locations only between 5°C and 40°C
