Radial Catapult RX4 4-Channel Receiver with Balanced Outputs
In-stock with brand - Estimated delivery 7-10 days
SKU
R800-8025-00
£299.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview

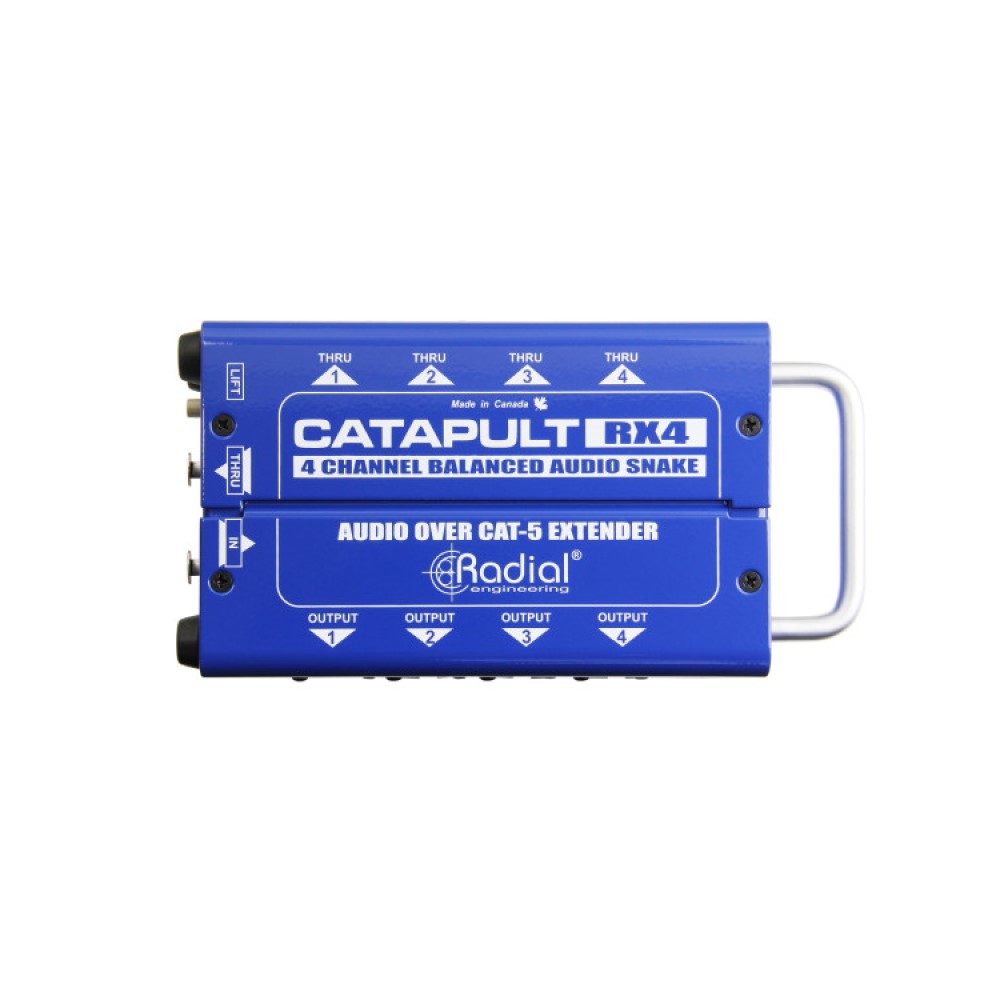

The Radial Catapult RX4 is a passive audio snake that can transport four analogue audio channels via normal Cat 5 or Cat 6 Ethernet cable.
- See full product description
The Radial Catapult RX4 is a passive audio snake that can transport four analogue audio channels via normal Cat 5 or Cat 6 Ethernet cable. The Catapult RX4 function as a standard four-channel analogue audio snake, allowing you to transport mic or line-level signals from one location to another without signal loss, noise, or interference, and without the requirement for digital audio conversion.
The Catapult system is unique in that it uses Cat 5 Ethernet wire, which is widely available, lightweight, and affordable. Simply connect a shielded Cat 5 cable between any two Catapult modules, and they will use the cable's analogue conductors to deliver four balanced audio lines to any destination.
- Audio circuit type: Passive splitter
- Frequency response: 7Hz ~ 20KHz
- Dynamic range: 140dB
- Total harmonic distortion: 0.0005% @ 1kHz
- Common Mode Rejection Ratio: >103dB
- Maximum Input: +35dBu
- Input Connectors: XLR, RJ45
- Output Connectors: XLR, RJ45
- Construction: 14 gauge steel chassis & outer shell
- Size (L x W x D): L: 8 1/8 x W: 4 1/8 x H: 2
- Weight: 2.6 lbs
- Shipping size (L x W x D): L: 11 x W: 5 x H: 2.75
- Shipping weight: 2.9 lbs
- Power: Passive, no power required
- Conditions: For use in dry locations only between 5°C and 40°C
