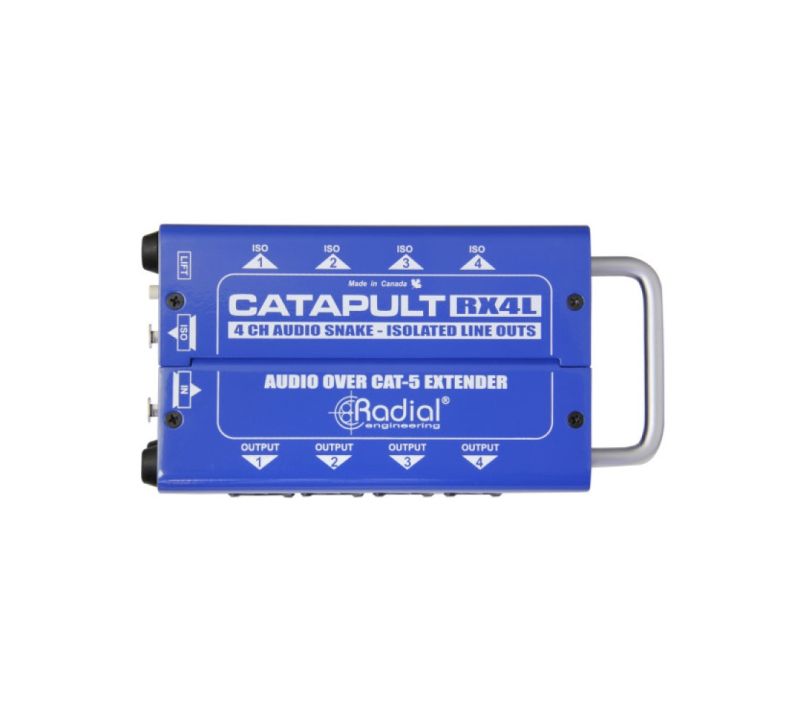

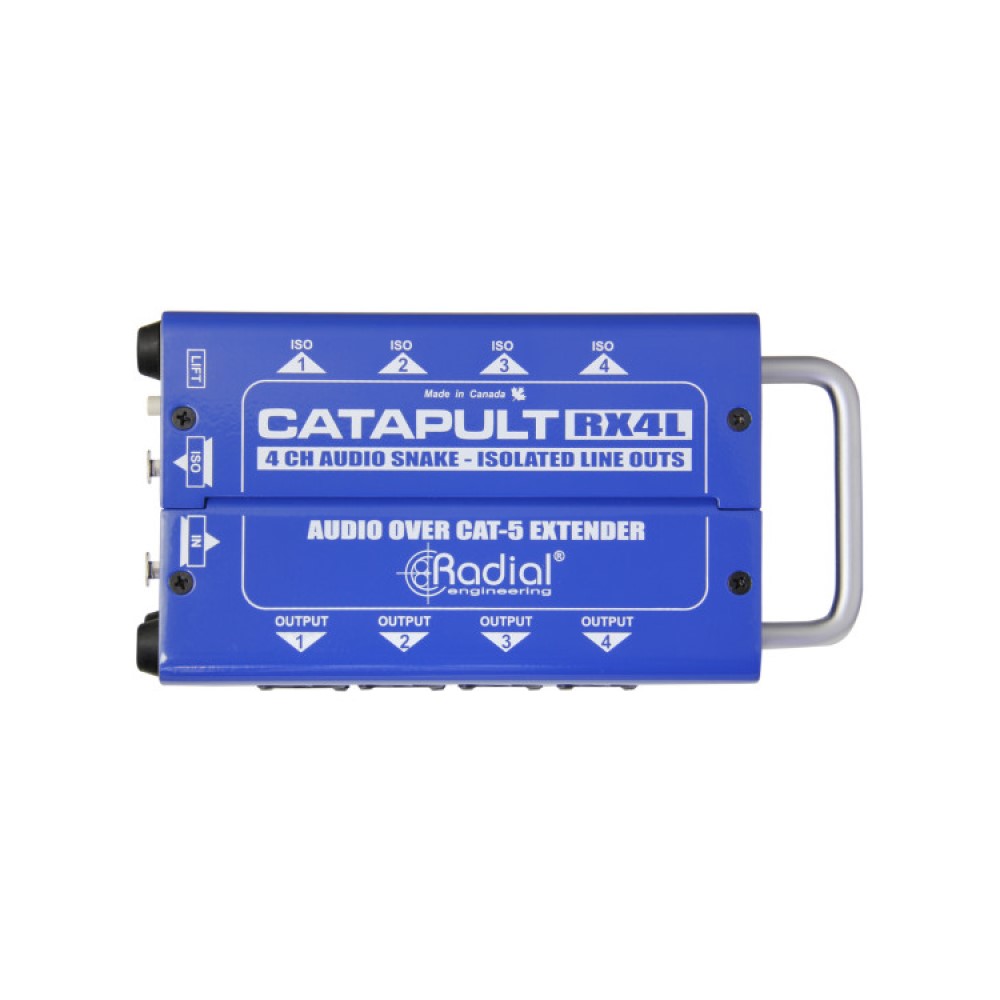

Radial Catapult RX4L 4-Channel Receiver, with Balanced Outputs, Line-Level Transformers

BACK-ORDER - Estimated Stock Arrival: 07-01-2024
SKU
R800-8027-00
£379.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The Radial Catapult RX4L is a 4-channel audio snake that transmits analogue and AES digital audio signals using ordinary Cat 5 shielded twisted pair cable.

  • See full product description

The Radial Catapult RX4L is a 4-channel audio snake that transmits analogue and AES digital audio signals using ordinary Cat 5 shielded twisted pair cable. This allows system contractors to use pre-wired networks to connect rooms, and stage technicians to take advantage of the relatively inexpensive cost of this readily accessible cable for return snakes or conveying channels of balanced audio over a huge stage.

The RX4L Receive module features four isolated XLR-M outputs (-20~+15dB) and one set of pass-through XLR-Ms.

  • Audio circuit type: Passive line splitter, transformer based
  • Frequency response: 7Hz ~ 20KHz
  • Dynamic range: 140dB
  • Total harmonic distortion: 0.0007% @ 1kHz
  • Common Mode Rejection Ratio: >113dB
  • Maximum Input: +35dBu
  • Input Connectors: XLR, RJ45
  • Output Connectors: XLR, RJ45
  • Construction: 14 gauge steel chassis & outer shell
  • Size (L x W x D): L: 8 1/8 x W: 4 1/8 x H: 2
  • Weight: 2.6 lbs
  • Shipping size (L x W x D): L: 11 x W: 5 x H: 2.75
  • Shipping weight: 2.9 lbs
  • Power: Passive, no power required
  • Conditions: For use in dry locations only between 5°C and 40°C
  • Warranty: Radial 3-year, transferable
