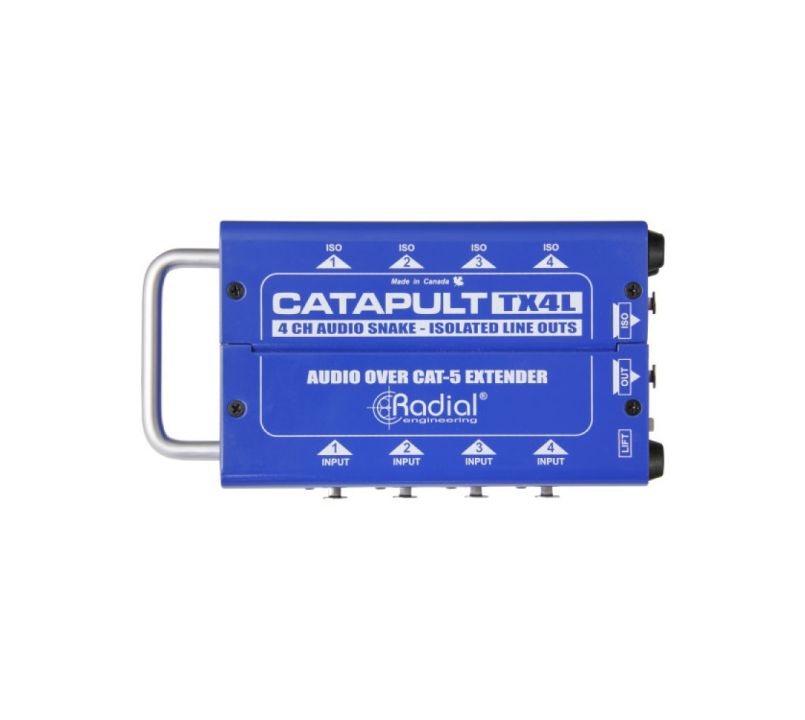

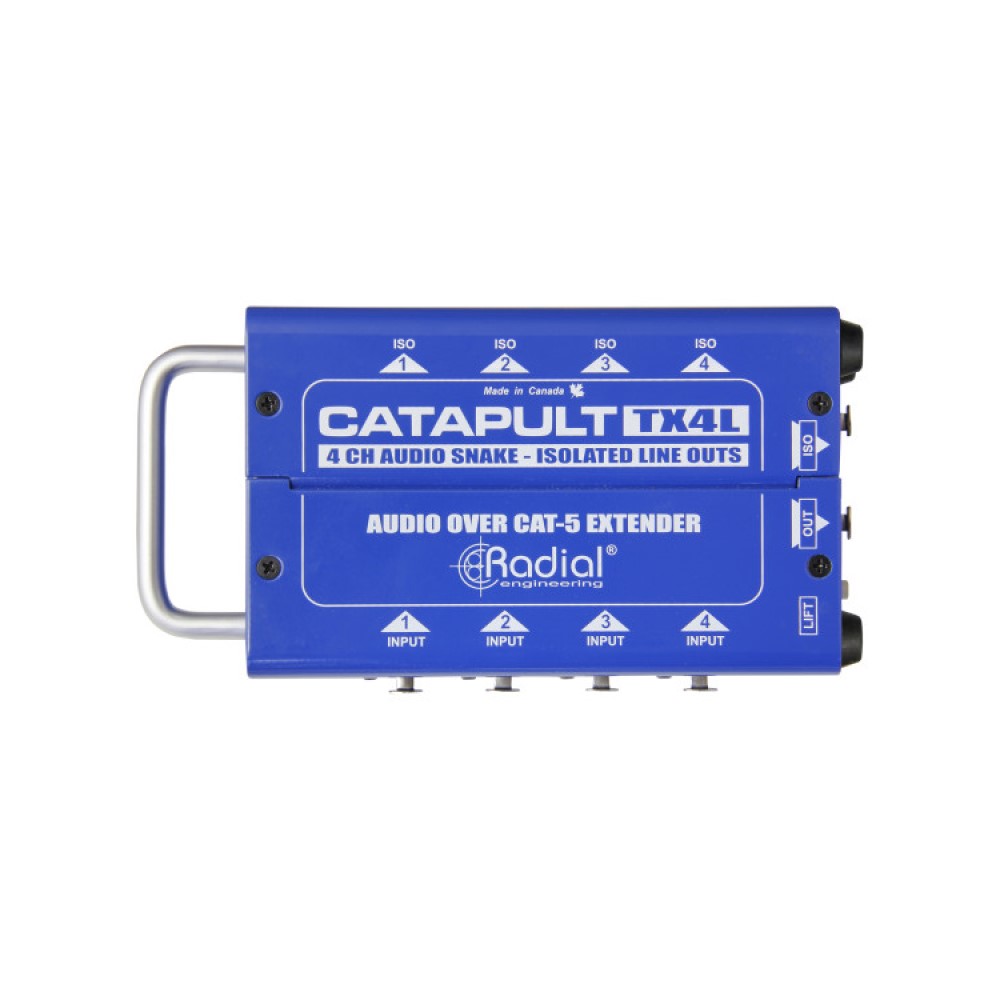

Radial Catapult TX4L 4-Channel Transmitter with Balanced I/O, Line-Level Transformers
In-stock with brand - Estimated delivery 7-10 days
SKU
R800-8024-00
£379.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Radial TX4L Catapult is a four-channel audio snake that can transmit analogue and AES digital audio signals via conventional Cat 5 shielded twisted pair cable.
- See full product description
The Radial TX4L Catapult is a four-channel audio snake that can transmit analogue and AES digital audio signals via conventional Cat 5 shielded twisted pair cable. This allows system contractors to use pre-wired networks to connect rooms, while stage technicians can take use of the relatively low cost of this readily accessible cable for return snakes or transferring balanced audio channels over a huge stage.
The TX4L transmit module features 4 XLR-F inputs and 4 isolated XLR-M outputs with line levels ranging from -20 to +15 dB.
- Audio circuit type: Passive line splitter, transformer based
- Frequency response: 7Hz ~ 20KHz
- Dynamic range: 140dB
- Total harmonic distortion: 0.0007% @ 1kHz
- Common Mode Rejection Ratio: >113dB
- Maximum Input: +35dBu
- Input Connectors: XLR, RJ45
- Output Connectors: XLR, RJ45
- Construction: 14 gauge steel chassis & outer shell
- Size (L x W x D): L: 8 1/8 x W: 4 1/8 x H: 2
- Weight: 2.6 lbs
- Shipping size (L x W x D): L: 11 x W: 5 x H: 2.75
- Shipping weight: 2.9 lbs
- Power: Passive, no power required
- Conditions: For use in dry locations only between 5°C and 40°C
- Warranty: Radial 3-year, transferable
