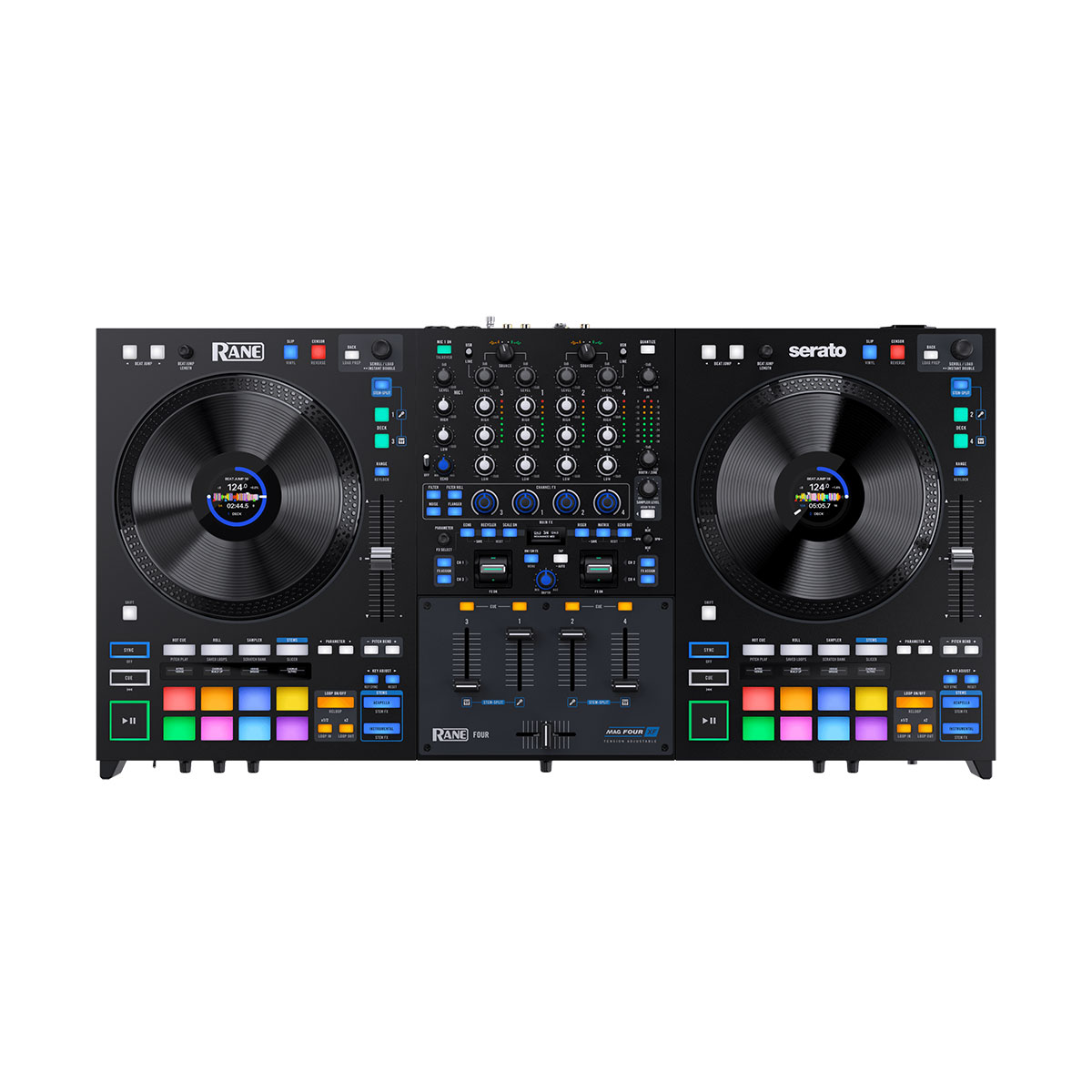

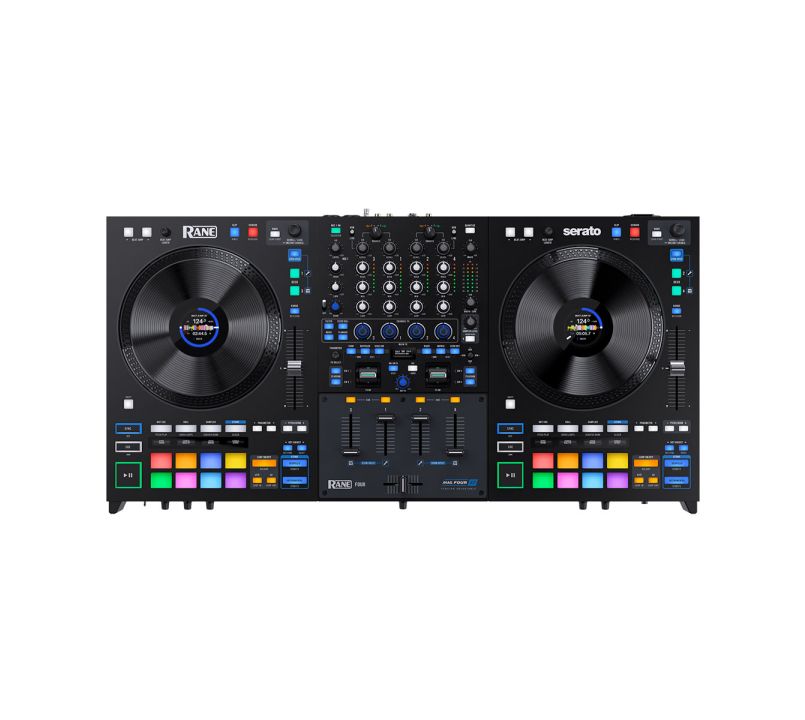

RANE FOUR Advanced 4 Channel Stems DJ Controller
Availability:In stock
SKU
RANEFOUR
£1,499.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
Rane Four is a hybrid 4-channel DJ controller featuring RANE's industry-leading build quality and trademark sound, perfect for innovative DJ performances.
- Hybrid 4-channel DJ controller
- Full Size High-Resolution Jog Wheels
- Designed with Serato for Superior Stems Control
- Chop up vocal samples with Split-Stem
- Dedicated Instrumental/Acapella Buttons
- STEMS Performance Pad Mode
- OLED Visual Pad Displays
- Industry-leading build quality
- See full product description
- See bundle deals
Rane Four is a hybrid 4-channel DJ controller featuring RANE's industry-leading build quality and trademark sound, perfect for innovative DJ performances.
Full Size High-Resolution Jog Wheels
The 8.5" capacitive jog wheels on the Rane Four DJ controller are considered to be the smoothest, most precise static jog wheels on the market. Play head position, BPM, pitch %, pitch range, overview waveform with Hot Cue markers, song key, time, loop size, deck selection, Beat Jump duration, and more are all shown in a central colour display.
Designed with Serato for Superior Stems Control
The partnership between RANE and Serato, which began with the SL1 box in 2004, has resulted in a lengthy line of innovative DJ equipment. The RANE FOUR takes this collaboration to the next level by combining the industrial-grade construction and sound quality of RANE hardware with Serato DJ software's powerful new Stems functionality. As a consequence, the DJ controller is indestructible and feature-rich, with unequalled Serato Stems creative freedom.

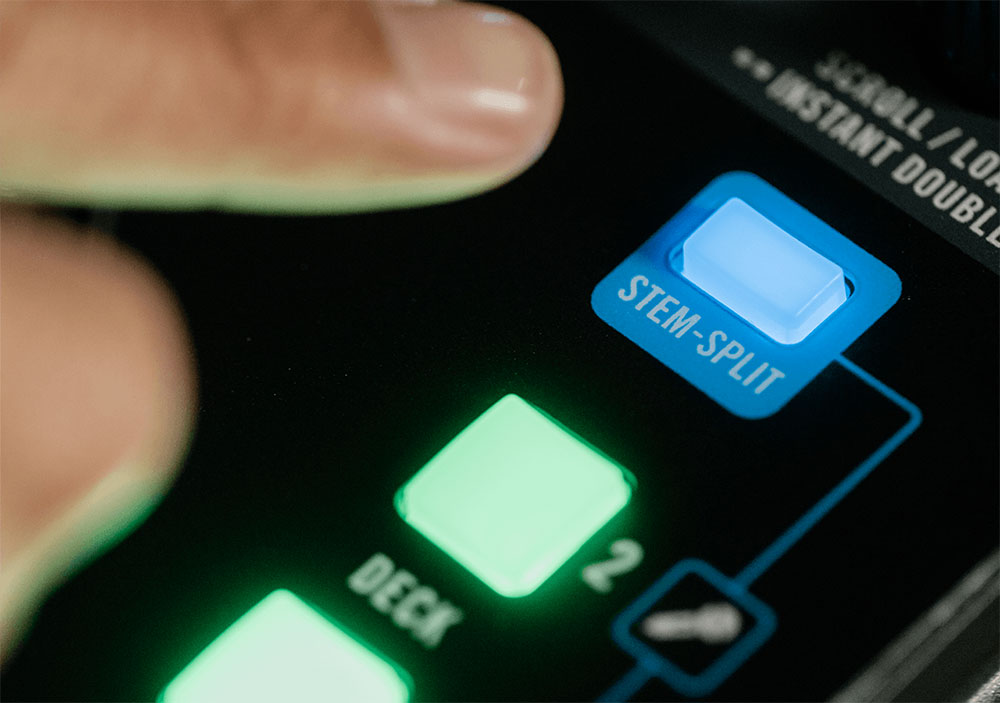

Introducing Stem-Split
The RANE FOUR lets you chop up vocal samples in real-time, apply separate FX to each layer, and more by immediately separating the Acapella and Instrumental of a track over two deck levels in the mixer section with the push of a single button.

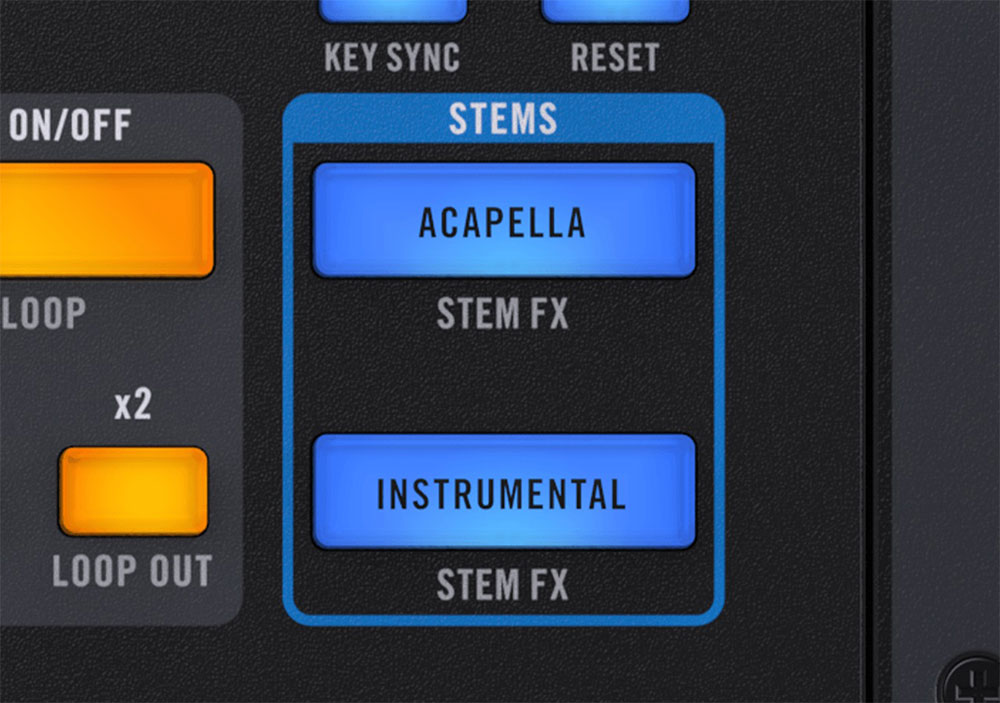

Dedicated Instrumental/Acapella Buttons
Without leaving the current Performance Pad mode, you can quickly and easily separate the vocals or instruments of any track using the dedicated Stems section. Ideal for blending, remixing, and live acapella mixing for innovative DJ performances.

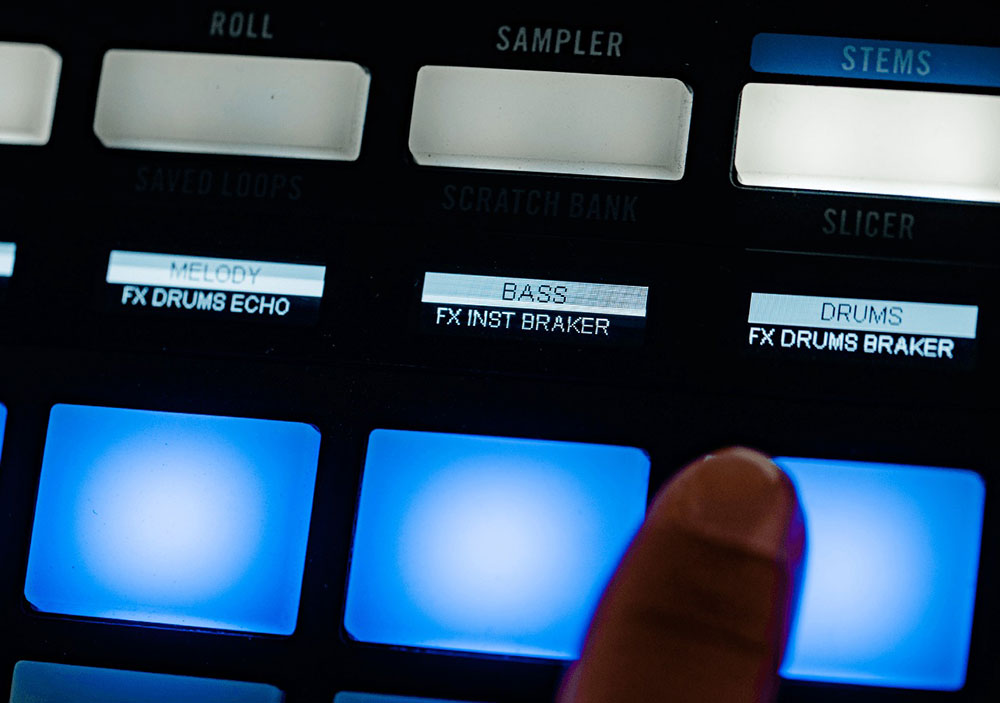

STEMS Performance Pad Mode
Using the STEMS Performance Pad mode, you may instantly separate or eliminate the vocals, melody, bass, and percussion. When eliminating elements, the row of bottom Performance Pads adds in some STEM FX. Any track can have its stems extracted in real time.

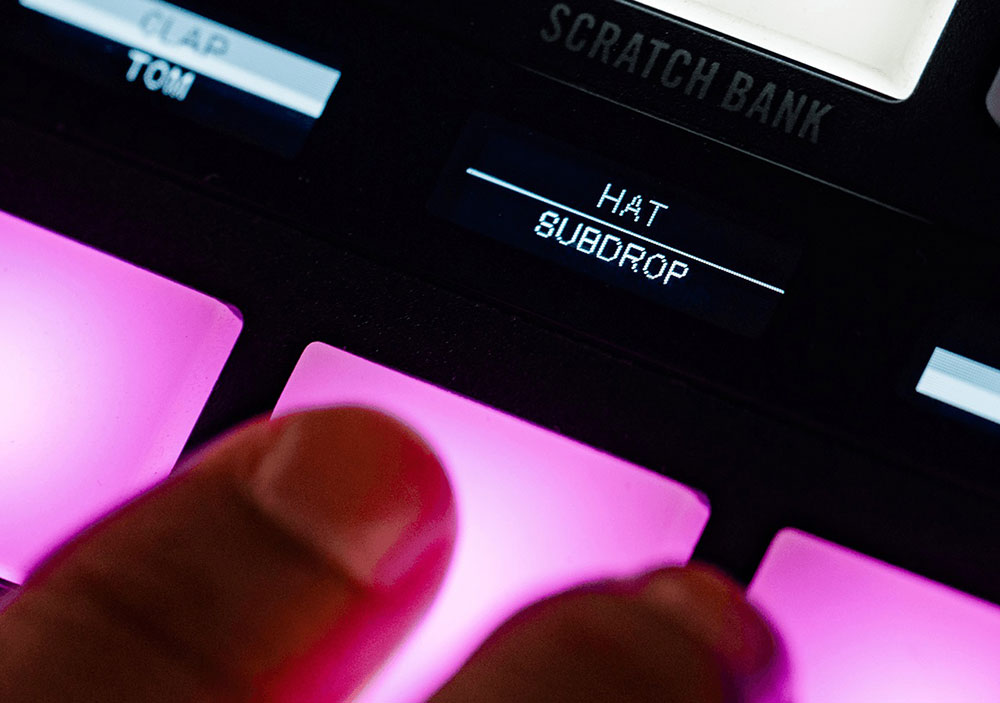

OLED Visual Pad Displays
The eight displays above each deck's Performance Pads provide visual feedback for all pad modes, making it possible to immediately recognise the pad's functionality without having to glance at the computer. See the names of the Cue, Loop, and Sample, as well as the lengths of the Roll and Loop and the beat divisions.
Digital Audio
Converters: Cirrus Logic, 24-bit PCM, 48 kHz
Digital Signal Processing: 32-bit, Floating Point, Double precisio
Dynamic Range (A-weighted, unity gain):
- ADC: 113 dB
- DAC: 113 dB
- CD Input to Analog Output: 110 dB
- CD Input to USB Output: 113 dB
- USB Input to Analog Output: 113 dB
Inputs
Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS):
- Analog Gain: 25 dB
- Maximum Input: 110 mV
- Gain Trim: Off to +26 dB (unity at center)
- Tone Control: 2-band
Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):
- Line: Line
- Maximum Input: 4 Vrms
- Gain Trim: Off to +12 dB
- Tone Control: 3-band, full-cut to +10 dB
- THD+N (20 kHz BW @ 1 kHz: 0.004%
- Phono: RIAA
- RIAA Curve: +/-0.25 dB
- Gain (@ 1 kHz): 31.5 dB
- Maximum Input (@ 1 kHz): 106 mV
- Dynamic Range (A-weighted): 102 dB
Outputs
Main Outputs (XLR):
- Gain Trim: Off to 0 dB
- Maximum Output: 8 Vrms
- THD+N (20 kHz BW @ 1 kHz): 0.004%
- Frequency Response: Flat - 20-20kHz
Main Outputs (RCA stereo pair):
- Maximum Output: 4 Vrms
- THD+N (20 kHz BW @ 1 kHz): 0.004%
- Frequency Response: Flat - 20-20kHz
Booth Outputs (1/4”):
- Gain Trim: Off to 0 dB
- Maximum Output: 8 Vrms
- THD+N (20 kHz BW @ 1 kHz): 0.004%
- Frequency Response: Flat - 20-20kHz
Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS):
- Maximum Output: 4 Vrms Voltage: (no load)
- Output Power: 50 mW (50 ohms)
- Dynamic Range (A-weighted): 108 dB
Pads (16) on/off multi-color back-lit pads (8 per deck, 9 modes each
Wheel Displays (2) 320 x 240 Color LCD’s
Pad & FX Displays (9) 128 x 32 Monochrome OLED’s
Faders
(1) MAG FOUR tension-adjustable crossfader with contour
(4) Standard channel faders
Connections
- (2) XLR outputs (Main)
- (2) 1/4” outputs (Booth)
- (1) RCA stereo output pair (Main)
- (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
- (2) RCA stereo input pairs (Deck 3-4)
- (1) 1/4” (6.35 mm) TRS output (Headphones)
- (1) 1/8” (3.5 mm) TRS output (Headphones)
- (2) USB Type-B ports
- (1) IEC power cable input
Power
- Connection: IEC
- Voltage: 100–240 V, 50/60 Hz
- Consumption: 20 W
Dimensions
(width x depth x height): 30.8” x 15.9” x 4.2” 782.32 x 403.8 x 106.6 mm
Weight (including platters) - 18.25 lbs. - 8.27 kg
