RANE MP2015 4-Channel Rotary DJ Mixer

Availability:Out of stock
SKU
MP2015
Special Price £2,463.00

Was: £2,649.00 Save £186.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The Rane MP2015 4-channel rotary DJ mixer is no longer available, please click here to view our latest range of DJ Mixers.

  • 4-deck mixing, with a 5th deck
  • Additional USB aux
  • Session input in the Submix channel
  • S/PDIF inputs on each of the 4 deck channels
  • 5 stereo playback and 7 stereo record channels on each USB port
  • OUR SHOW MODEL LAST ONE
  • See full product description

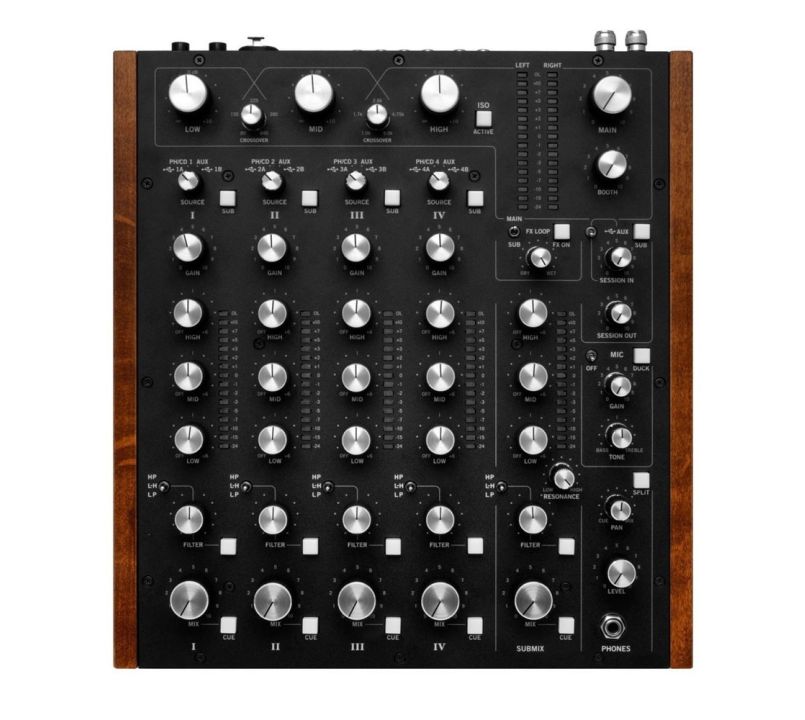

The Rane MP2015 is a no-compromise, 4-channel rotary DJ mixer that provides you with precise control, reliability, and robust durability and is perfect for techno and house DJs who like to seamlessly blend between tracks and feature high-quality audio architecture giving you a pristine sound. This mixer was designed in collaboration with the world’s top techno/house DJs and has been constructed from 40-years of Rane’s experience in rotary mixer design giving you analogue control over a digital mixer. This mixer is perfect for high-end club and bar installations and is ideal for techno/house DJs and works seamlessly alongside Serato DJ and Traktor Scratch DJ applications.

Four Phono-CD analogue inputs come with gold-plated connections and are fitted with studio-quality preamplifiers while a transient overvoltage protection system prevents peaking. The circuitry inside the unit gives you low-noise with high-gain bandwidth alongside low-harmonic distortion, a super-fast slew rate, and high-output. The 18hz high-pass infrasonic filters come with 18dB/octave slopes while ultrasonic filters begin to roll off at 50kHz at 12dB/octave for the smoothest filter control possible. When using CDJs and media players, you can bypass the D/A converters and input directly into a digital S/PDIF input which opens up the phono inputs for more DJ equipment and source select controls allow you to switch between the input routings easily.The MP2015 features high-resolution audio playback with 24-bit/96khz capabilities giving you pristine, studio-quality sound which is perfect for turntablists and digital DJs alike and gives you an excellent dynamic range when using WAV and FLAC file formats. The high-end sound is down the analogue-digital and digital-analogue converters alongside Audio 4 Pro delta-sigma modulator converters and delivers a sound that can reach 116dB while a modified FIR system works to reduce group delay and provides you with a brilliant linear phase response. For lower distortion, this mixer features proprietary 24-bit digital filters and eliminates the need for AC coupling which only works to further the fantastic performance. The in/output converters support 44.1kHz, 48kHz, or 96kHz samples rates and has an astonishingly low THD+N performance of 0.001%.

Each of the four channels, as well as the Submix channel, are equipped with the advanced filters with a three-position selector switch that gives you low-pass, high-pass, and low/high-pass filtering options and all come with a super-steep 24dB/octave slope for the smoothest filter sweeps. When using the low/high-pass filter option the 12 o’clock position doesn’t affect the channel when turned to the left you access a low-pass filter when turned to the right you can access a high-pass filter. A single resonance control allows you to shape and craft the filters for creative mixing effects and all filters are high-resolution offering fast, artefact-free sound all accurately calculated for your selected sample rate.

The unique Submix input channel allows you to group any number of inputs which opens up the world of multi-source mixing and lets you group multiple channels, so you do not need to juggle numerous controls to affect multiple channels. This means you can control all channels using only one set of EQs, filter, and volume controls and can be quickly assigned. The Submix comes with its own level meter, headphone cue, and USB record output and works great alongside your preferred external effects unit or can be used an additional input channel; no other mixer provides you with the ease of multi-track control.

Every input channel comes equipped with 3-band EQ controls which give you +12dB/octave and total kill frequency control with selectable crossover points which are accessible through the control panel when hooked up to a laptop via the USB ports. At the top of the mixer is a 3-band isolator EQ system with adjustable low-mid and mid-high crossover points and provide you with the best control possible over the overall sound of your mix.

On the rear of the MP2015 rotary DJ mixer are dual USB ports which allow for seamless back-to-back DJ sets and DJ transitions and using the source select control you can easily and quickly switch between computers and can stream 24-channels of low-latency 24-bit/ audio at 44.1, 48, and 96kHz sampling rates which gives you the most precise sound possible.



our show model last one

MP2015 DJ Mixer Key Features:

  • 4-deck mixing, with a 5th deck
  • Additional USB aux
  • Session input in the Submix channel.
  • Submix allows grouping any number of inputs for easy multi-source mixing from one channel.
  • S/PDIF inputs on each of the 4 deck channels.
  • 1 aux line input, assignable to any of the 4 channels.
  • 5 stereo playback and 7 stereo record channels on each USB port.
  • Mic input has switchable phantom power.

MP2015 DJ Mixer Tech Spec

ADCs: 24-bit @ 44.1, 48, or 96 kHz
DACs: 24-bit @ 44.1, 48, or 96 kHz
Digital Signal Processing: 32-bit floating point
FlexFX: Stereo unbalanced ¼" TS (tip-sleeve) jacks, Send and Return.
Mic Input: Balanced ¼" TRS & XLR combo jack with Mic / Line switch and +48V Phantom Power switch.
THD+N: 0.0009%
Internal Universal Power Supply: 100 to 240 VAC, Max 20 W, 50 Hz to 60 Hz.
Unit Size (HxWxD cm): 35.5 x 33.3 x 8.3 (includes knobs)]
Weight: 5.7 kg

Analog Inputs

Four Analog Deck Inputs: Each is Phono-CD-S/PDIF switchable
Analog Stereo RCA jacks: Phono (RIAA) or CD (line-level)
Phono Response: RIAA +0.1/-0.2 dB, Gain: 31 dB at 1 kHz, Butterworth 3rd-order Infrasonic (rumble) and 2nd-order Low-pass Filters
Max Phono Input: 126 mV
Max Line Input: 4 Vrms, all unbalanced inputs
Analog Aux Input: Line Level, stereo unbalanced RCA jacks
Session Analog Input: Line Level, stereo unbalanced RCA jacks

S/PDIF

Deck Input S/PDIF RCA jacks: Input 16-bit or 24-bit PCM only
Dynamic range of 128 dB with ultra low jitter and 16:1 SRC conversion range.
Session S/PDIF Input / Output: RCA jacks (Dynamic range of 128 dB)
Input 16-bit or 24-bit PCM only, sample Rate 16 kHz to 144 kHz

Dynamic Range

Digital/USB Input to Line Output: 116 dB A-weighted
Line Input to Digital/USB Output: 116 dB A-weighted
Line Input to Line Output: 113 dB A-weighted

USB Audio

Seven stereo record, five stereo playback, each port, 24-bit PCM @ 44.1 kHz, 48 kHz or 96 kHz.
Class-compliant, no driver needed for Mac OS X*.
ASIO driver provided for Windows 7 and higher.
*Firmware update required for support on macOS 10.12 Sierra and higher.

Line Outputs

Main is on balanced XLR jacks
Booth is on balanced TRS 1/4" jacks
Session is on unbalanced RCA line level or S/PDIF digital RCA jacks
FlexFX Loop Send is unbalanced RCA jacks.
Frequency Response: 20 Hz to 20 kHz ±0.25 dB
Unbalanced jacks (Session & FlexFX): Max 4 Vrms
Balanced jacks (Main & Booth): Max 8 Vrms
