RCF EVOX J8 Two-Way Portable Active Array Speaker System (B-Stock)
Availability:In stock
SKU
EVOXJ8-BSTOCK
Special Price £675.00 Was: £775.00 Save £100.00
Finance options available - click here to find out more
i
i
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
Please be aware that there is slight damage to the corner of the speaker. Check the image section to view the damage.

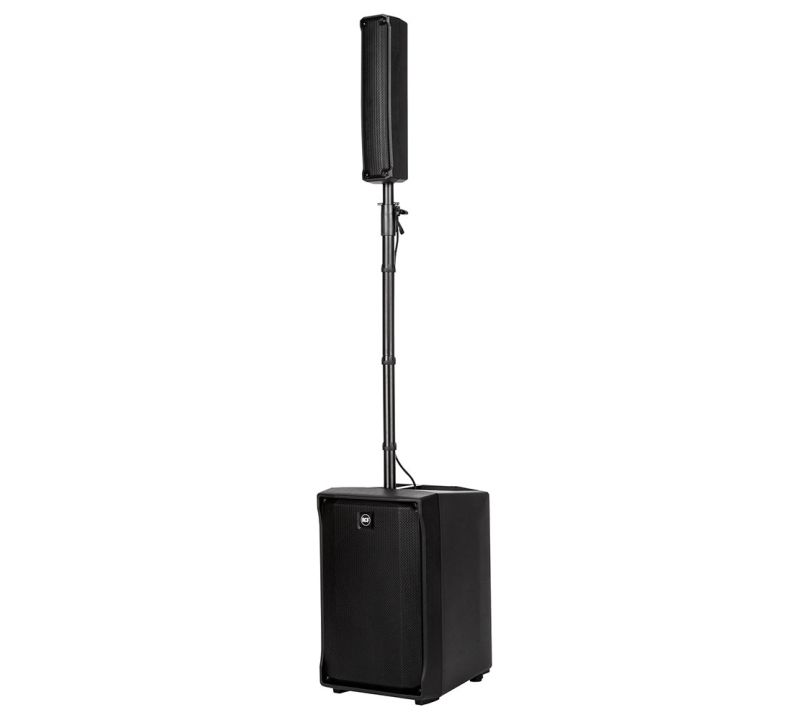

The RCF EVOX J8 is a compact, portable PA system that combines reliability with top-grade transducers to give you a speaker system with an incredible amount of amplification power. With eight 2-inch full range transducers alongside a massive 12-inch woofer for powerful lowend, this EVOX J8 system is a perfect live sound solution for bands and DJs as well as conferences or speeches thanks to its clarity and dynamic vocal reproduction.
- See full product description
The RCF EVOX J8 is a compact, portable PA system that combines reliability with top-grade transducers to give you a speaker system with an incredible amount of amplification power. With eight 2-inch full range transducers alongside a massive 12-inch woofer for powerful lowend, this EVOX J8 system is a perfect live sound solution for bands and DJs as well as conferences or speeches thanks to its clarity and dynamic vocal reproduction.
The Evox 8 system is driven by a 1400w, two-way, Class-D digital amplifier and, thanks to the frequency dependent drivers, is able to control distortion and guarantees an unmatchable output compared to similar systems.
This PA system also boasts an outstanding DSP that carefully controls the crossover frequency of both speakers and protects itself from overloading. Found on the rear of the bass speaker are controls for volume and EQ as well as stereo XLR inputs alongside an XLR and Speakon output so you can daisy chain speaker systems together.
Thanks to the intelligent design the EVOX system can easily be dismantled and transported with the top speaker, subwoofer, pole mount and cables all able to fit into the dedicated transportation bag (sold separately). The birch plywood construction is coated in a heavy-duty, textured epoxy and features a perforated hex grille that covers both the satellite and sub speakers.
Powerful class d amplifier
RCF's Class-D power amplifier technology crams massive performance and outstanding efficiency into a lightweight package. D-Line amplifiers provide lightning-fast attack, realistic transient response, and outstanding audio performance. The amplifier has a sturdy mechanical aluminium frame that not only keeps the amplifier stable during transit but also aids in fan-less heat dissipation. The EVOX J amplifiers include an SMPS power supply portion to deliver maximum output while weighing the least amount possible.
Superior transducers
HIGH FREQUENCIES - The ultra-compact full-range 2-inch RCF drivers can handle high SPL and power while delivering a superb sound performance.
LOW FREQUENCIES - The 12" RCF woofer's strong excursion extends to the lowest frequencies, providing a rapid and accurate punch. The bass-reflex port design reduces distortions by avoiding air turbulence. The EVOX design provides ideal coverage with consistent directivity coverage of 120°x30°(HxV). The vertical array is gradually curved to provide continuous sound coverage from the start to the final row.
Ready to play in a few simple steps
PORTABILITY - The trolley, which is entirely built into the optional cover of the speaker, makes transporting simple in addition to the grip on top of the woofer's cabinet. The metal pole is securely fastened to the trolley using the cover's handles during transit.
MOUNTING - On top of the subwoofer, screw the pole into the pole mount. Connect the SpeakOn to the top column, and you're done! The length of the pole may be adjusted thanks to an adjustable fastener.
PLAY! - It's never been easier to transport and install your audio equipment.
J System configurations
The EVOX J system's versatility is essential for solo performers as well as large DJ events. It's simple to provide the optimal listening experience in any venue thanks to the various outputs and FiRPHASE processing with 0° phase response. To have a better understanding of how the system works, look at some typical settings.
Other Features
- 128 dB Max SPL
- 1400 Watt 2-way power
- DSP Processing with FiRPHASE
- 12" woofer, high power 2.5" voice coil
- 8 x 2" ultra compact fullrange 1.0" voice coil
- 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
- 23,8/52.5 kg/lbs
Applications:
- DJs
- Corporate events
- Presentations
- Performers
ACOUSTICAL SPECIFICATIONS
- Frequency Response: 40 Hz ÷ 20000 Hz
- Max SPL @ 1m: 128 dB
- Horizontal coverage angle: 120°
- Vertical coverage angle: 30°
TRANSDUCERS
- Fullrange: 8 x 2.0'', 1.0'' v.c
- Woofer: 12'', 2.5'' v.c
INPUT/OUTPUT SECTION
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
- Crossover Frequencies: 220 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, Mic/Line
POWER SECTION
- Total Power: 1400 W Peak, 700 W RMS
- High frequencies: 400 W Peak, 200 W RMS
- Low frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: VDE
PHYSICAL SPECIFICATIONS
- Cabinet/Case Material: PP Composite
- Handles: 1 Top
- Grille: Steel
- Color: Black, White
SIZE
- Height: 2285 mm / 89.96 inches
- Width: 400 mm / 15.75 inches
- Depth: 460 mm / 18.11 inches
- Weight: 20.2 kg / 44.53 lbs
SHIPPING INFORMATION
- Package Height: 676 mm / 26.61 inches
- Package Width: 451 mm / 17.76 inches
- Package Depth: 581 mm / 22.87 inches
- Package Weight: 29.9 kg / 65.92 lbs
