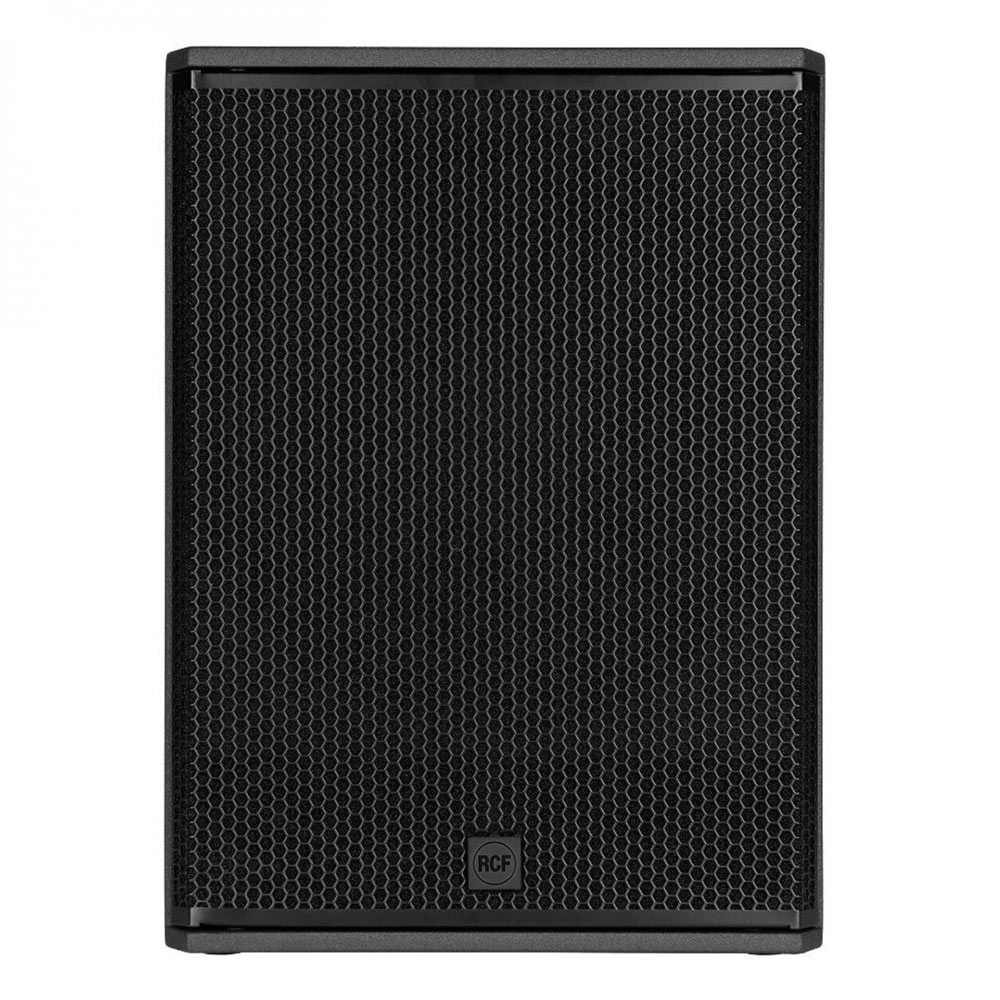

RCF SUB 8003-AS MK3 18-inch Active Subwoofer

Availability:In stock
SKU
8003-ASMK3
£1,499.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The RCF SUB 8003-AS MK3 is an 18-inch subwoofer equipped with a powerful DSP and a 2200w digital amplifier.

Important notice: This product weighs over 30 kg and requires an additional carriage charge.

  • See full product description

The RCF SUB 8003-AS mk3 is a 2200w active subwoofer that is equipped with an 18-inch woofer, a powerful DSP and a digital amplifier that gives you an incredibly high output with amazingly low distortion and a super-clear, natural sound. The 8003-AS is perfect for any 12/15-inch satellite speaker setup and works best alongside RCF Art 7, D-Line or 4PRO speakers.

The 8003-AS MK3 features a built-in digital signal processor that comes with a selection of presets so the subwoofer can adapt to the speakers you integrated it in to. Found on the rear is an innovative input patch bay that provides you with stereo XLR inputs alongside an XLR link-crossover with a switchable crossover frequency of 80Hz or 120Hz. The highly efficient 2200w amplifier features a rugged aluminium, mechanical structure that dissipates heat without a fan and stabilizes itself while in transit.

With the 8003-AS, you get an input sensitivity encoder so you can set the input signal level to a volume that suits the situation, the amount ranges from +0dB gain reduction all the way to +99dB of gain reduction. A XOVER section gives you a broad range of 24dB/octave low and high pass filter options which allows you to get the perfect sound for your system.

This subwoofer has been crafted from super-robust birch plywood which is then coated with a heavy-duty textured epoxy while the cabinet features a bass-reflex design that creates an incredibly high SPL yet also works to reduce distortion.

  • 2200 W
  • 135 dB max SPL
  • 35 Hz - 120 Hz frequency response
  • 18" Woofer, 4.0" v.c.
  • Birch tour grade cabinet
  • Selectable gain, X-over, cardioid mode and time delay
  • Stereo XLR input, Stereo XLR signal output

Applications

  • Live sound reinforcement
  • Portable and installed audio-visual systems
  • Live theatre and houses of worship
  • Auditoriums, retail, ballrooms and night clubs

Acoustical specifications

  • Frequency Response:  35 Hz ÷ 120 Hz
  • Max SPL @ 1m:  135 dB
  • Transducers
  • Woofer:  18'', 4.0'' v.c

Input/Output section

  • Input signal:  bal/unbal
  • Input connectors:  XLR
  • Output connectors:  XLR
  • Input sensitivity:  -2 dBu/+4 dBu

Processor section

  • Crossover Frequencies:  Selectable
  • Protections:  Thermal, RMS
  • Limiter:  Soft Limiter
  • Controls:  Gain, EQ, Phase, Xover, Delay, Cardioid

Power section

  • Total Power:  2200 W Peak
  • Cooling:  Convection
  • Connections:  Powercon IN/OUT
  • Standard compliance
  • Safety agency:  CE compliant

Physical specifications

  • Cabinet/Case Material:  Plywood
  • Handles:  One handle each side
  • Grille:  Steel with clothing
  • Colour:  Black
  • Physical & Dimensions
  • Height:  693 mm / 27.28 inches
  • Width:  505 mm / 19.88 inches
  • Depth:  685 mm / 26.97 inches
  • Weight:  37.6 kg / 82.89 lbs
