Sennheiser XSW1-CI1-GB Wireless Instrument Set
Availability:In stock
SKU
506999-XSW1-CI1-GB
£259.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview

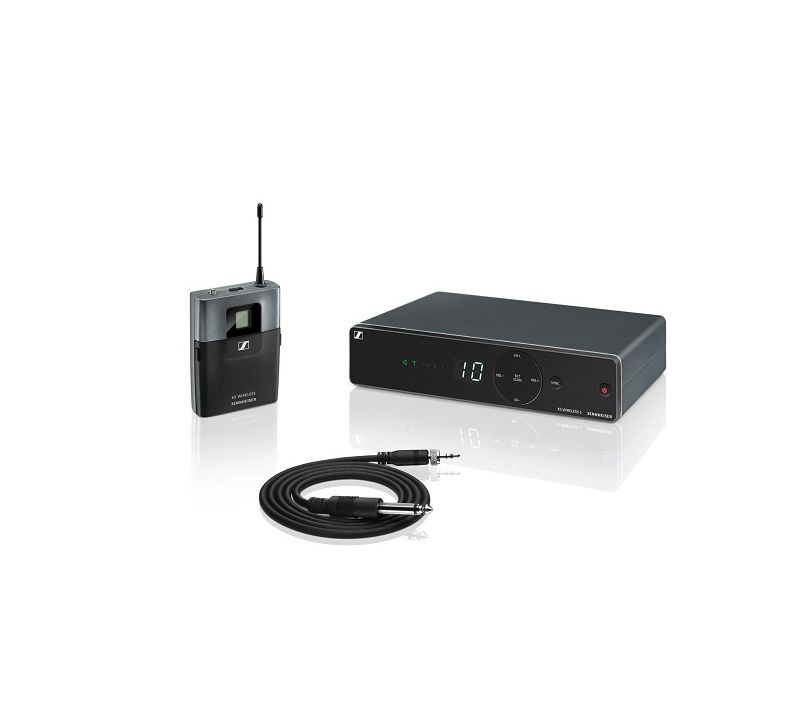

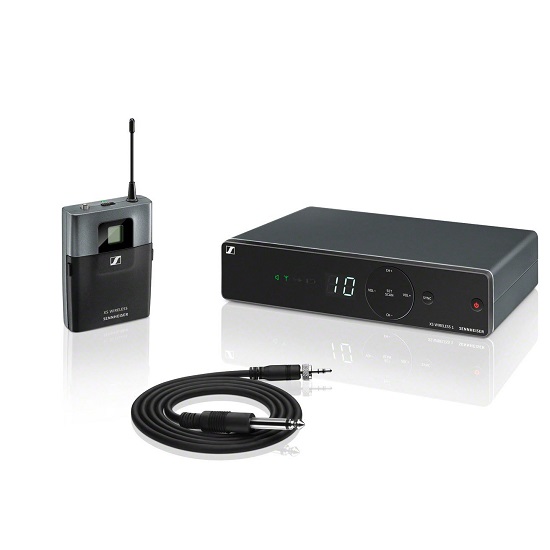

The Sennheiser XSW1-CI1 is a wireless instrument set that is designed for guitars and basses and consists of a lightweight body-pack transmitter, robust instrument cable and signal receiver.
- See full product description
The Sennheiser XS Wireless 1-CI1 is a UHF wireless system for guitars and basses and consists of a lightweight body-pack transmitter, robust instrument cable and signal receiver and is perfect for live events. The system can be set up within minutes thanks to the plug and play functioning.
The XS Wireless 1 – CI1 uses automatic frequency management that can have up to 10 wireless connections at any one time making this system perfect for bands with multiple instrumentalists.
The XSW1-CI1 provides you with the acclaimed quality that Sennheiser are world-known for, all parts have been made from high-quality components that ensure loud and natural sounding instruments that your audience will scream for. Feedback protection is also in place so you no longer need to worry about horrible noises coming through your sound system.
The XS Wireless – CI1 has been made to last, the transmitter is sweat resistant and has been built to withstand the everyday stresses of on-stage performances.
- Compact bodypack transmitter, rugged instrument cable
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
In The Box
- 1 receiver EM-XSW 1
- 1 bodypack transmitter SK-XSW
- 1 instrument cable Cl1
- 1 power supply NT 12-5 CW
- 2 AA batteries
- Dimensions: Receiver: approx. 200 x 42 x 127 mm
- Bodypack transmitter: approx. 71 x 96 x 28 mm
- THD (total harmonic distortion): ≤ 0.9%
- Weight: approx. 340g (receiver), approx. 95g (transmitter)
- Signal-to-noise ratio: ≥ 103 dBA
- RF output power: 10 mW
- Switching bandwidth: up to 24 MHz
- Operating time: approx. 10 hrs
- Modulation: Wideband FM
- Power supply: Receiver: 12 V DC nom. / 300 mA
- Transmitter: 2 AA size batteries, 1.5 V
- Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Housing: Rugged ABS housing
- Frequency: 8 frequency banks, each with up to 10 factory-preset channels
- Frequency range
- A: 548-572 MHz, GB: 606-630 MHz
- B: 614-638 MHz
- C: 766-790 MHz
- D: 794-806 MHz
- E: 821-832 MHz, 863-865 MHz
- K: 925-937.5 MHz
- SPL for peak deviation: 130 dB
- Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
- Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity: 1.5 mV / Pa
- AF frequency response Receiver: 50 to 16,000 Hz (–3 dB)
- Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range: 45 dB, adjustable in 5-dB steps
- Line/Mic level: 20 dB, switchable
- Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle: Double superheterodyne
- Diversity principle: Antenna switching diversity via internal antenna
- Sensitivity: < 3 μV at 52 dB(A)rms S/N
