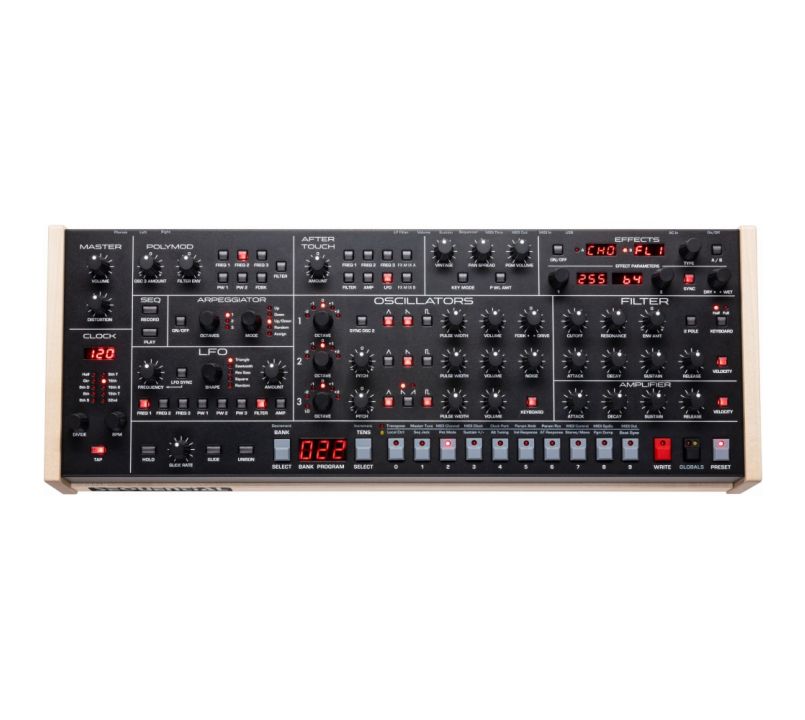

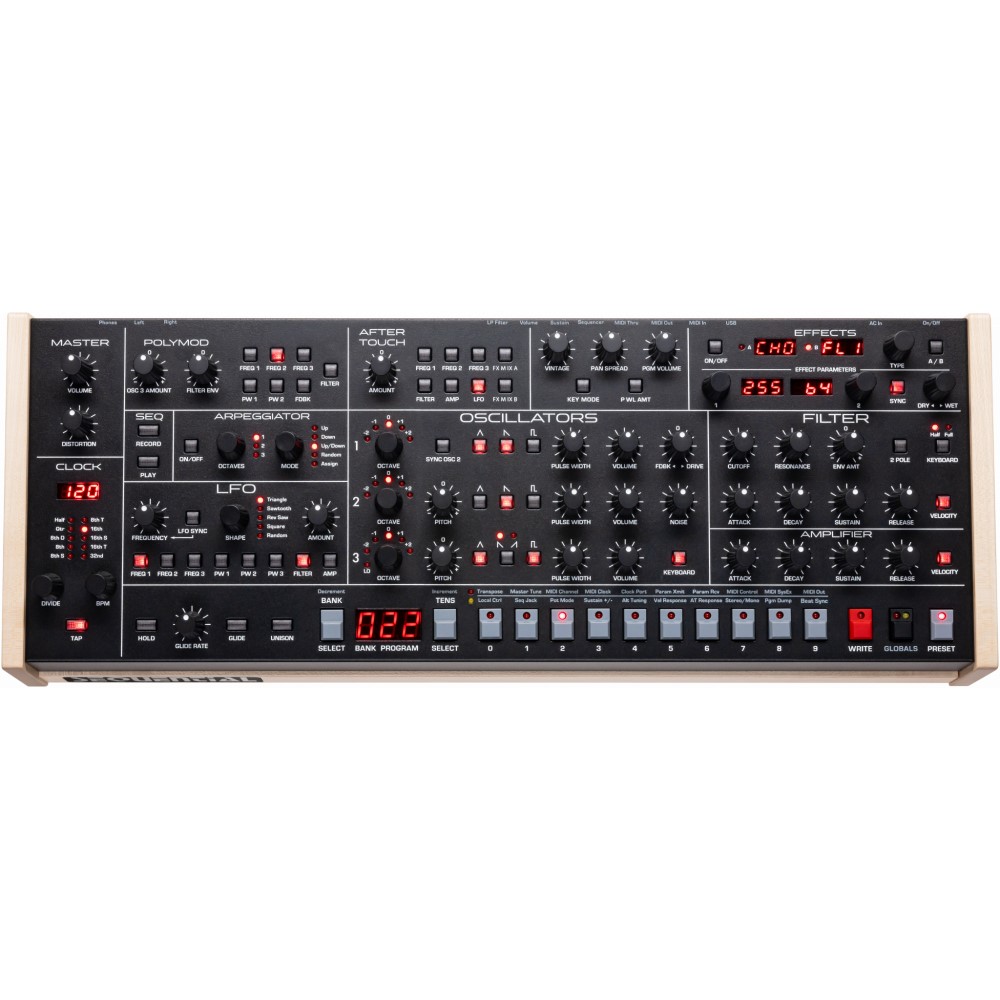

Sequential Trigon-6 Desktop Module Analogue Synth
BACK-ORDER - Estimated Stock Arrival: 07-01-2024
SKU
SEQ-3810-UK
£2,399.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Sequential Trigon-6 desktop module has the same huge sound and hands-on control over the timbre shape as the Trigon-6 keyboard. It has the same high-quality digital effects and the identical pure analogue input path with separate oscillators and filters. It also has an easy-to-use layout with large buttons and switches that make it quick and easy to generate new sounds.
- See full product description
The Sequential Trigon-6 desktop module has the same huge sound and hands-on control over the timbre shape as the Trigon-6 keyboard. It has the same high-quality digital effects and the identical pure analogue input path with separate oscillators and filters. It also has an easy-to-use layout with large buttons and switches that make it quick and easy to generate new sounds.
The Sequential Trigon-6 module sounds vast, comparable to the keyboard, as it is the same six-voice polyphonic instrument, just smaller in form. If you want even more polyphony, you can use the poly chain tool to connect any two Trigon-6s to make a beautiful twelve-voice synth.
The desktop version is a small, portable instrument that can still make all the sounds its powerful keyboard brother can make. It has three oscillators per voice and a ladder filter that has been updated with a separate drive and feedback control. This makes it easy to go from smooth and silky to loud and crunchy with the turn of a knob. Because of this, Trigon-6 is the right instrument to use in the studio or on stage.
The desktop module is not only a smaller form of the Trigon-6 keyboard. It's a powerful and expressive instrument that makes its own warm, natural analogue sound.
Sequential Trigon-6 Overview
The Trigon-6 desktop module is based on some of the most famous analogue synths ever made. It has a standard three-oscillator synth design with an improved ladder filter. The three oscillators make a sound source that is rich and flexible, with patterns like triangles, saws, and pulses whose width can be changed. Mix and match the oscillators to make complicated harmonies, detune them for thick chorusing effects, or sync oscillator 2 for hard-edged growls.
The ladder filter, on the other hand, is the Trigon-6's heart and soul. It has a smooth and musical response and can change your sound from smooth and mellow to mangled and aggressive. The filter has a 2/4-pole switchable slope and an adjustable resonance that can add a unique peak or self-oscillate for roaring leads and sci-fi effects.
Expression
MIDI Polyphonic Expression (MPE) is an extension of MIDI that lets devices compatible with MPE-enabled synths handle multiple parameters of each note. This enables each note to have its own pitch bend, filter cutoff, amplitude, and other modulations, which makes instrumental acts more expressive. You will be able to bend, slide, tremble, swell, and change the sounds you make in ways that have never been done before. Trigon-6 is a revolutionary polyphonic analogue synth that lets you play every detail of your music with MPE. It lets you hear the classic 3-oscillator ladder filter sound like never before.
The Trigon-6 synthesiser is an excellent example of Dave Smith's influence and ability to develop new ideas. It has all Sequential's well-known Prophet-6, and OB-6 synths, featuring 6-voice harmony, unmatched playability, and easy programming. It also has a global LFO, a multiple-step sequencer, an arpeggiator, and a dual effect processor with chorus, ring modulation, phaser, flanger, reverb and delay effects.
Strong and Familiar Sound
The Trigon-6 is Sequential's polyphonic take on the famous 3-oscillator-plus-ladder-filter analogue sound that marked the start of the synth era. It's a sound that blends different genres and styles, and Sequential's own modern stamp has made it even more effective and unique.
Brand-New Design for the Filter and Oscillator
At the heart of the Sequential Trigon-6 sound are three voltage-controlled oscillators with triangle, saw, and pulse waves. Additionally, there is an improved version of the ladder filter that Sequential made for its Pro 3 mono synth. The switchable 2-pole/4-pole resonant filter's drive and feedback settings make it easy to go from smooth and silky to loud and crunchy with just a turn of a knob.
Putting the Pieces Together
The Trigon-6 has all of Sequential's "must-have" sound-shaping tools, like envelopes that respond quickly, an LFO that can be synced and has multiple waveforms and destinations, an arpeggiator and a polyphonic step sequencer. The best part is that the Trigon-6's front panel, which has a knob for each function, puts these settings right where you can reach them. And the 500 factory presets and 500 user presets give you a wide range of basses, leads, and pads to get any project off the ground.
Dual Effects
The studio-quality reverbs, delays (both standard and BBD), flanger, chorus, phaser, and ring modulator can be found in the dual effects area. The separate stereo distortion effect makes the music more aggressive and can be turned on and off at will.
Vintage Knob
The Vintage Knob adds different tuning and component behaviour from voice to voice, giving an already classic synth even more classic organic warmth. Vintage response can be changed from subtle to extreme to make it sound like a perfectly stable current instrument or a relic from a long time ago.
Powerful and Transportable
With all that the Trigon-6 can do, it's hard to believe that it fits into a desktop module that's light enough to carry in a bag. And now that Trigon works with MPE, this instrument is easier to play and has more tones than ever before. It is the best choice for a project studio or a singer on the road who wants to get the most out of Sequential synthesis.
OSCILLATORS
- Three discrete VCOs per voice
- Simultaneously selectable wave shapes: triangle, sawtooth, reverse sawtooth, and variable-width pulse
- Pulse width per oscillator
- Hard sync: oscillator 1 syncs to oscillator 2
- Keyboard tracking on/off (oscillator 3)
- Low frequency mode (oscillator 3)
- Oscillator feedback and drive controls for increased signal saturation
- White Noise source
LOW-PASS FILTER
- Switchable two/four-pole, discrete, resonant, low-pass, ladder filter per voice
- Filter can be driven into self-oscillation with the Resonance control
- Bi-polar filter envelope amount
- Velocity modulation of envelope amount
- Keyboard tracking: off, half, full
FILTER ENVELOPE
- Four-stage (ADSR) envelope generator
- Velocity modulation of envelope amount
AMPLIFIER ENVELOPE
- Four-stage (ADSR) envelope generator
- Velocity modulation of envelope amount
LOW FREQUENCY OSCILLATOR
- Five wave shapes: sine, sawtooth, reverse sawtooth, square, and random (sample and hold)
- LFO sync
- Initial amount
- Mod destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, oscillator 1 pulse width, oscillator 2 pulse width, oscillator 3 pulse width, filter cutoff, amp (VCA)
POLY MOD
- Sources: oscillator 3 (bi-polar) and filter envelope (bi-polar)
- Destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, oscillator 1 pulse width, oscillator 2 pulse width, filter cutoff, feedback amount
VINTAGE KNOB
- Recreates vintage synth characteristics by adding voice-to voice variations in component behavior
AFTERTOUCH
- Source: channel (mono) aftertouch with bi-polar amount
- Destinations: Destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, LFO amount, amplifier envelope amount, filter envelope amount, FX mix A, FX mix B
CLOCK
- Master clock with tap tempo
- BPM control and display
- MIDI clock sync
ARPEGGIATOR
- Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
- One, two, or three octave range
- Up, down, up/down, random, and assign modes
SEQUENCER
- Polyphonic step sequencer with up to 64 steps and rests
EFFECTS
- Stereo analog distortion
- Dual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade), chorus, flanger, phase shifter, and ring modulator
- Delay sync
- True bypass maintains fully analog signal path when digital effects are off
PERFORMANCE CONTROLS
- Hold switch latches held notes on
- Polyphonic portamento
- Unison (monophonic) mode with configurable voice count, from one to all six voices, and key modes to control voice triggering priority
- Preset switch: when on, the front panel is live — what you see is what you hear
PATCH MEMORY
- 500 user and 500 factory programs in 10 banks of 100 programs each
- Direct program access, including single-button access to the current set of 10 programs
IN/OUT
- Left/mono and right audio outputs (2 x 1/4” phone jack)
- Headphone output (stereo, 1/4” phone jack)
- MIDI in, out, and thru ports
- USB for bidirectional MIDI communication
- Filter cutoff expression pedal input
- Volume expression pedal input
- Sustain footswitch input
- Sequencer start/stop footswitch input
POWER
- IEC AC power inlet for internal power supply
- Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption
PHYSICAL SPECS
- Maple end panels
- Trigon-6 desktop module weighs approximately 10.9 lbs. (4.95 kg) and measures 22.00” L x 8.45” W x 4.54” H (55.88 cm x 21.46 cm x 11.53 cm).
