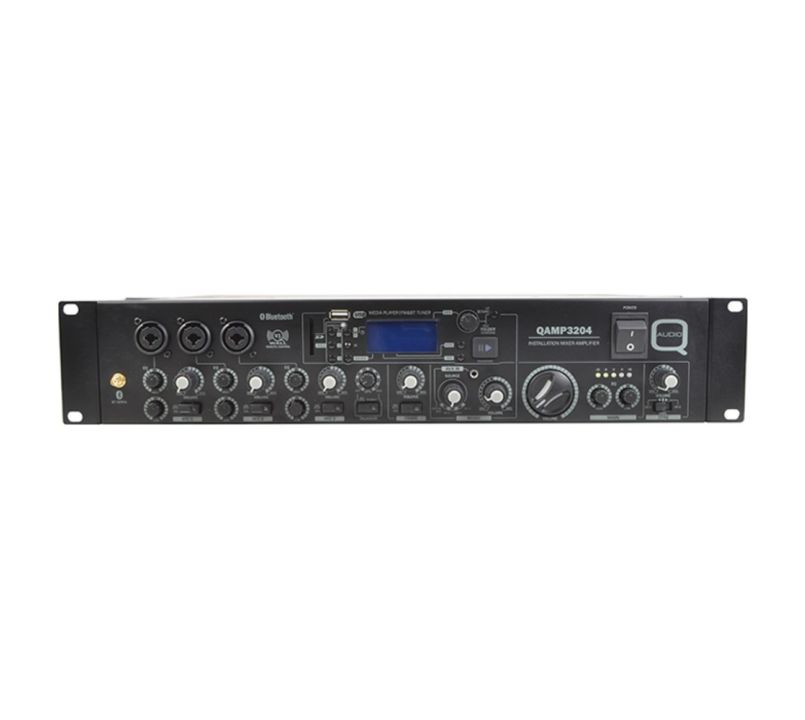

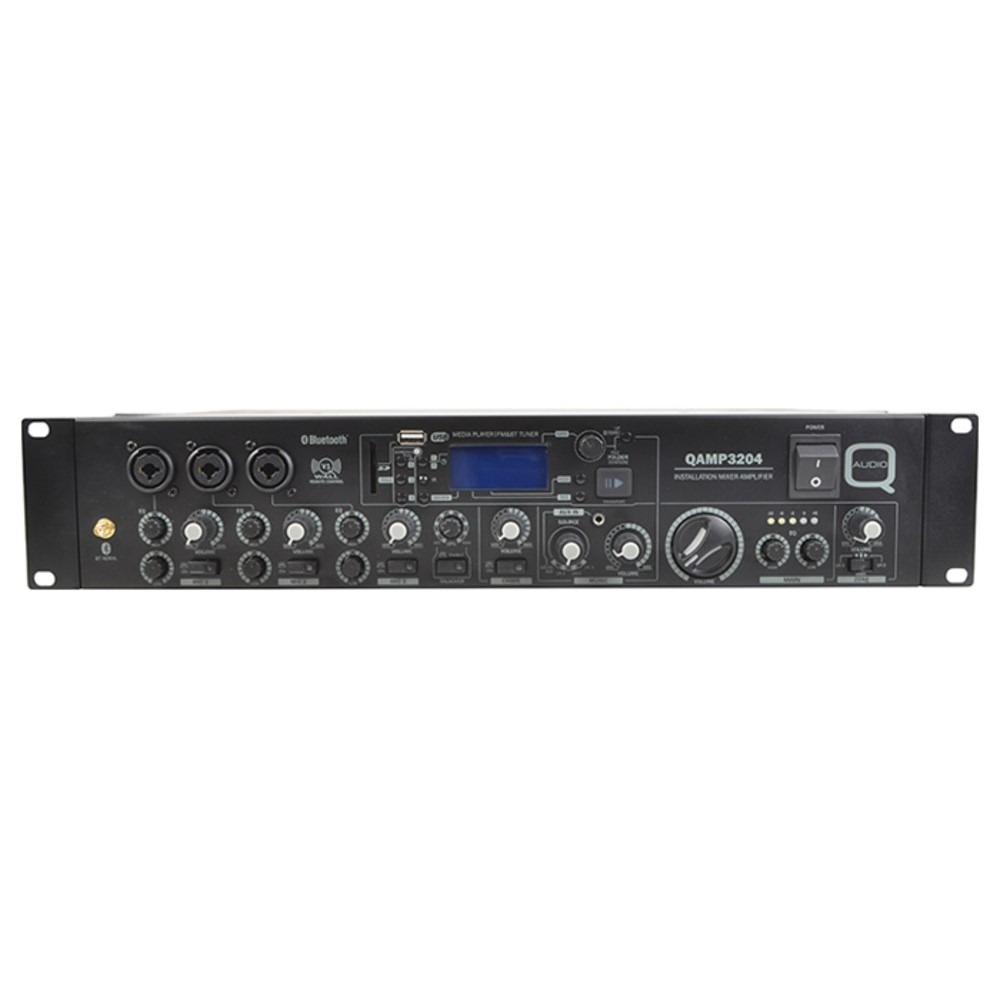

Q Audio QAMP3204 High Performance Media Amplifier
BACK-ORDER - Estimated Stock Arrival: 14-04-2025
SKU
91004
£499.00
Earn 2,495 Reward Points
Finance options available - click here to find out more
i
i
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Q Audio QAMP3204 is a stereo amplifier that provides 2x100W at 8 Ohms or 2x160W at 4 Ohms, making it perfect for bars, restaurants, gyms, and schools. It features a mixer section with one music input and three microphone inputs. Music can be switched between the built-in media player, three external line inputs, or a 3.5mm front jack, all with adjustable volume.
- See full product description
The Q Audio QAMP3204 is a stereo amplifier that provides 2x100W at 8 Ohms or 2x160W at 4 Ohms, making it perfect for bars, restaurants, gyms, and schools. It features a mixer section with one music input and three microphone inputs. Music can be switched between the built-in media player, three external line inputs, or a 3.5mm front jack, all with adjustable volume.
The media player supports FM radio, Bluetooth, USB, and SD cards (up to 16GB/2,000 songs). It displays MP3 names on a large screen and offers regular and shuffle play modes. A jingle player lets you play up to three pre-recorded announcements or ads, either on a schedule or via front-panel buttons.
Microphone inputs include phantom power, EQ, and volume controls, plus an auto talk-over feature that lowers music volume during announcements. The master section includes a 2-band EQ, LED output meter, and a rear volume limiter. A chime generator lets you play custom sounds, triggered externally or via a memory card.
The amplifier also supports a separate zone output with its own volume control. The two internal amps can be configured for stereo or mono outputs, and an optional 80Hz filter reduces bass for smaller speakers. Speaker connections are made via binding posts.
For emergencies, the QAMP3204 includes a priority input and mute contact to override outputs with important messages.
Built to last, the QAMP3204 comes in a durable 2U 19-inch metal case with removable rack ears for easy installation.
- 320 Watt Installation Mixer Amplifier.
- Built in media Player.
- Bluetooth Receiver, FM Tuner, SD Card, USB Input.
- Suitable 8 and 4Ohm Speakers.
- Two Amplifier Channels.
- Mixer section with 1 music and 3 microphone sources
- Music source switchable between media player/tuner, 3 external line levels.
- Front 3.5mm Jack Input.
- Jingle Player for announcements and advertising.
- Microphone inputs with phantom power, isolation transformer (Mic 1 only)
- Adjustable auto talk-over for automatic music level reduction.
- 2 Band EQ.
- Rear side Level Controls.
- Remote volume control option via optional wall panel (QWALL)
- Chime sound generator with adjustable volume, external trigger, and user-loadable sound on memory card.
- Zone section with separate volume control.
- Silent fan cooling with temperature-controlled speed.
- Linear power supply with toroidal transformer.
- Phoenix-compatible speaker output.
- Music on hold (MOH) output with adjustable music and mic levels, isolation transformer, and selectable music source.
- Emergency priority input and output mute contact for external output muting/emergency message priority.
- 2u 19" Rack mountable with detachable rack ears.
- S/N Ratio: >82dBu (unweighted 22Hz-22KHz)
- Frequency Range: 20Hz-20kHz
- Weight: 8.85 kg
- AC Power: 115/230V~ 50Hz-60Hz (max. 350W)
- THD: < 0.05%
- Power: 2×100/160 @ 8/4 Ohms
- Cross Talk: >65dB
- Dimensions (WxHxD): 483mm x 88.5mm x 228mm
