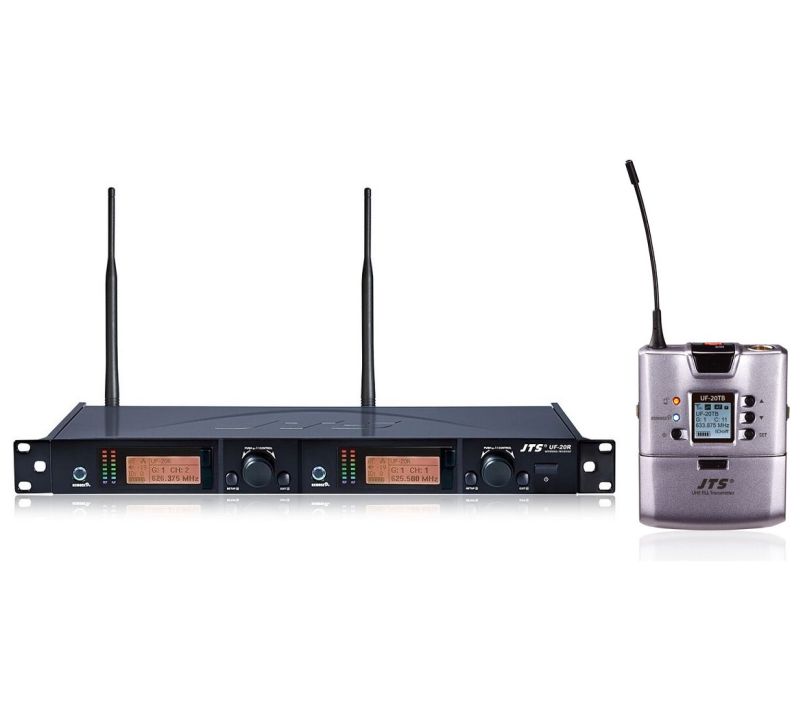

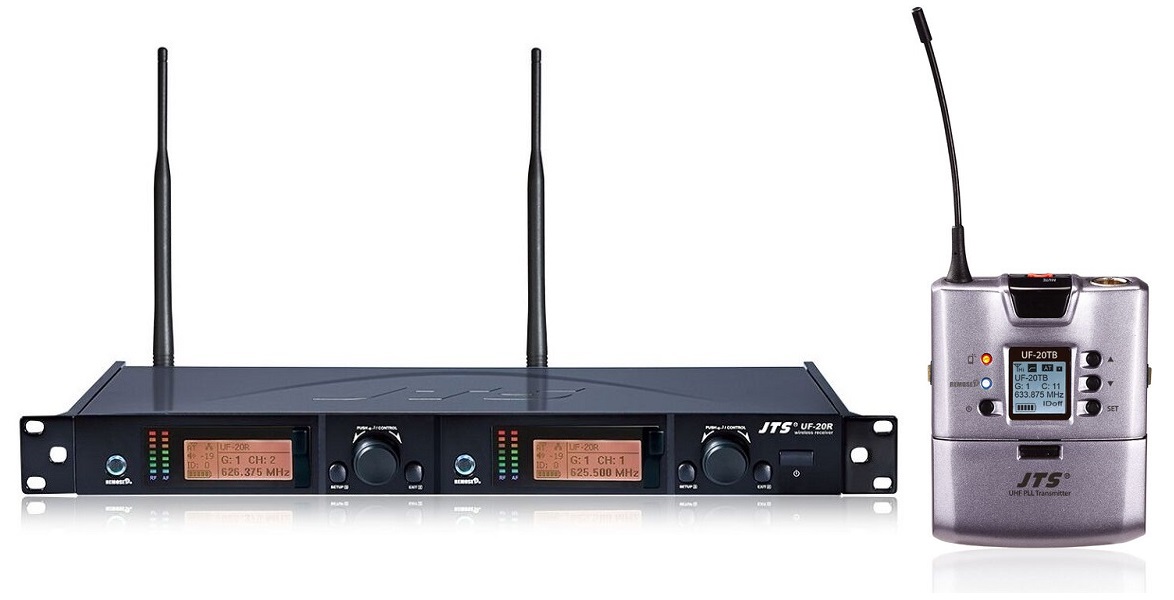

JTS UF-20R Receiver and UF-20TB Transmitter UHF Wireless Microphone System
Availability:In stock
SKU
81244/81247
Special Price £1,019.00 Was: £1,124.00 Save £105.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The JTS Professional UF-20 is a UHF wireless microphone system that includes a UF-20R receiver alongside a UF-20TB bodypack transmitter that provides you with excellent sonic capabilities and plenty of professional features and functions.
- See full product description
This JTS Professional UHF wireless microphone system includes a UF-20R dual channel true diversity wideband receiver as well as a UF-20TB bodypack transmitter. This system provides you with pristine audio and plenty of professional features.
The UF-20R receiver has been built to JTS’ high-quality standard and features incredibly low companding noise that gives you crystal clear audio everytime. The one-touch setup facilitates smooth operation while the massive 200-480 meter operational distance allows you to walk around freely without having to worry about accidentally disconnecting from the system. The receiver also features Remoset technology that allows you to operate the transmitter’s settings from the receiver itself at the press of a button.
The compact, lightweight UF-20TB bodypack features a 4-pin mini-xlr connection that allows you to input a range of JTS headsets, lavalier or lapel microphones. The bodypacks aluminium alloy chassis has been designed to be extremely robust so it can handle rigorous everyday use while the housing ensures there is absolutely zero handling noise.
UF-20R Receiver
- UHF True diversity technology renders 200-480 meters of operation distance
- Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
- Preset 15 groups each of up to 63 compatible channels
- User programmable 6 groups each of 64 channels
- Free space scan function
- JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
- JTS LCX circuit design technology minimizes Companding noise
- REMOSET - This now not only sends the frequency data but also the transmitter’s
- RF power, sensitivity, low cut, key lock and user's name.
- RF “NO SIGNAL” alert function.
- AF “MUTE” alert function.
- Transmitter “LOW BATTERY” alert function. Built in equalizer
- Power / Antenna cascading output provided.
UF-20TB Bodypack Transmitter
- 2400 to 3000 selectable frequencies
- Preset 15 groups each of up to 63 compatible channels
- Phase-Locked Loop (PLL) synthesized tune
- Extended dynamic range and smooth frequency response.
- Adjustable transmission power between Low and High
- The panel Lock-On function prevents tampering and RF interruption
- Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.
- It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.
UF-20R Receiver
- Diversity Wireless: True Diversity
- Frequency: 606-681MHz
- Bandwidth: 75Mhz Super wideband
- RF In/Outs: 2x Inputs / 2x Outputs
- Power In/Outs: IEC In & Out
- Code: 81244
UF-20TB Bodypack Transmitter
- Frequency Preperation: PLL Synthesized Control
- Carrier Frequency: UHF 606-681MHz
- Bandwidth: 75Mhz Super wideband
- RF Outputs: High/Low Option
- Stability: <10KHz
- Frequency Deviation: 48KHz (Peak)
- LCD Display: Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
- Controls: Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET
- ID Pairing, RF Output Adjust
- Freq. Response: 50Hz - 18kHz
- Battery: 2x AA
