FBT J1000 PA Speaker Package
BACK-ORDER - Estimated Stock Arrival: 07-01-2024
SKU
100114
£3,049.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The J1000 speaker package is a perfect for a small club venue or bar that wants an entire upgrade to your in-house sound system. Or even a larger club looking to add some significant support to their current system.

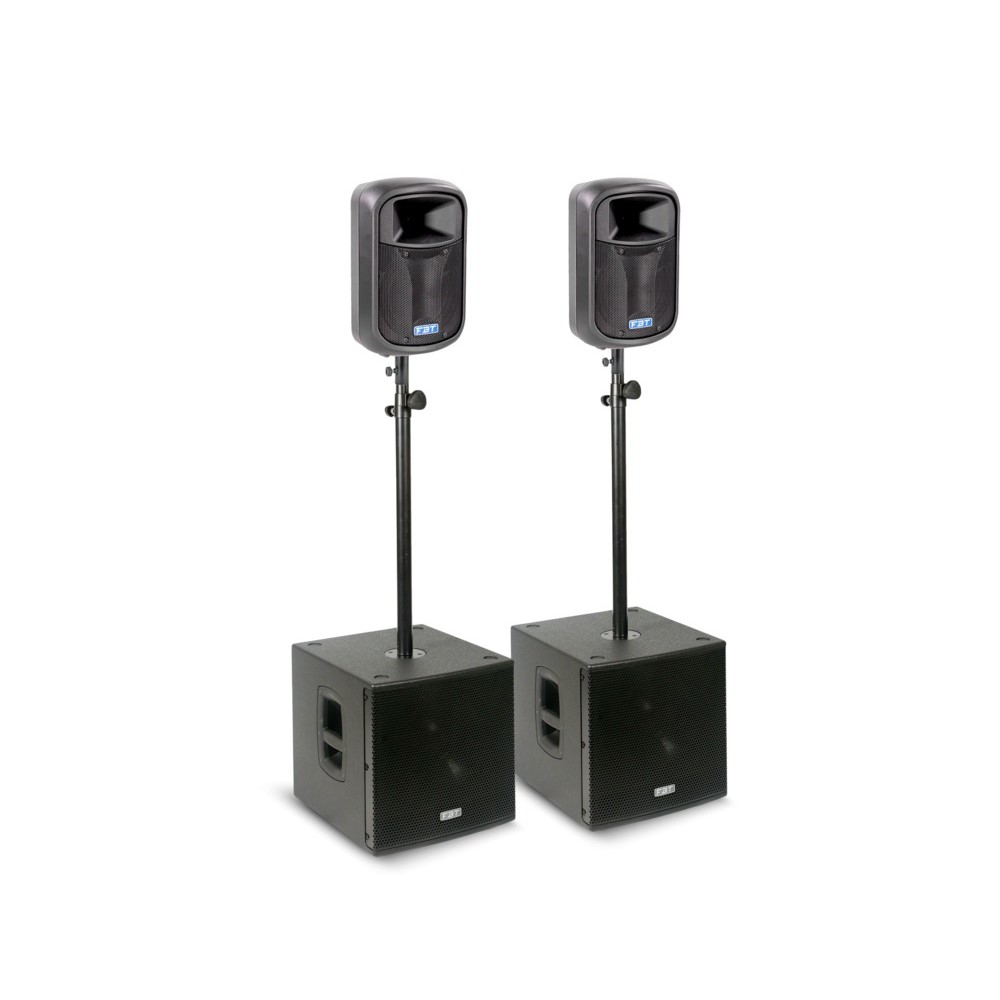

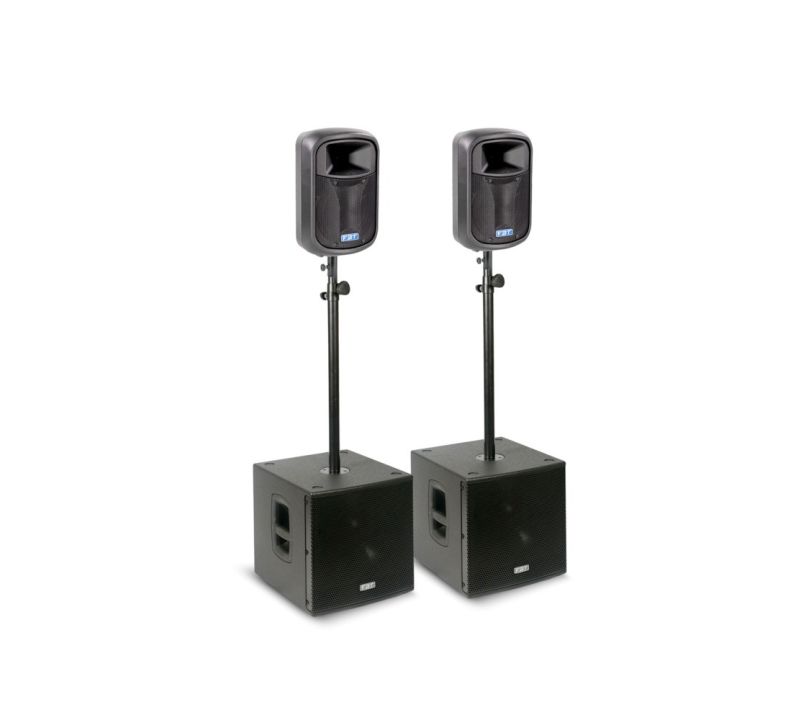

This package contains:
- 2x J8A PA Speaker
- 2x Subline 112SA Subs
- FREE Poles and Covers
- See full product description
- See bundle deals
The J1000 speaker package is a perfect for a small club venue or bar that wants an entire upgrade to your in-house sound system. Or even a larger club looking to add some significant support to their current system.
The J8A Active Speaker comes with a high-performance Class D amplifier. Designed by FBT's research and development department, these amps provide you with unbeaten sonic quality.
FBT J8A PA Speaker
- 200mm (8’’) custom woofer with improved efficiency and linearity
- 200Wrms class D amplifier for LF and 50Wrms for HF.
- Low noise toroidal transformer power supply
- On-board Digital Signal processing with dynamic equalizations and protections for high SPL and high reliability.
- 2 DSP preset for maximum acoustical flexibility
- 2-way bi-amplified system in Bass-Reflex
- Polypropylene enclosure with integrated handle
- 2 x M6 suspension points
- 25mm (1”) HF custom AF compression driver
- 90°H x 60°V constant directivity horn
FBT Subline 112SA Subwoofer
- Bass-reflex design with high SPL and punch
- 320mm (12”) high excursion magnet woofer with 75mm (3”) voice coil
- Frequency response from 40Hz to 140Hz
- New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
- Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration
- Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from
- 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
- 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
- M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
FBT J8A Speaker Spec
- System Type: 2-Way
- Internal Amplifiers*: cont. 150W+40W RMS, max.: 200W+50W RMS, max peak.: 400W+100W
- Input Impedance: 22kOhm
- Frequency Response: 60Hz-20kHz (@-6dB)
- Maximum SPL cont.peak**: 120dB/124dB
- Dispersion: 90°H x 60°V
- Crossover Frequency: 2.5kHz
- AC Power Requirement: 160VA
- Low Frequency Woofer: 8" / 1.7" coil
- High Frequency Driver: 1" / 1" coil
- Input Connectors: XLR-Jack with loop
- Enclosure Material: Polyproylene
- Grille: Steel with powder coat black paint finish
- Dimensions (WxHxD) inch: 10.03 x 16.33 x 9.64
- Weight: 18.7 lbs
*Cont.: 500mS burst, rms power on nominal speaker impedance. Max.: 2mS burst, rms power on nominal speaker impedance. Max peak: based on max peak output voltage and nominal speaker impedance
** Cont. SPL: free space, based on continuous power amp rating and LF transducer average sensitivity data, 125mS time average. Peak SPL: free space, based on max. peak power amp rating and system peak sensitivity, 10mS time average.
FBT Subline 112SA Subwoofer
- System type: 1 way
- Internal amplifier*: max.: 700W RMS, max. peak: 1400W
- Low frequency woofer: 1 x 12" / 3" coil
- Frequency response @-6dB: 40Hz - 140Hz
- Input impedance: 22kOhm
- Max. SPL cont/peak**: 130 / 133
- Dispersion: omnidirectional
- Crossover frequency: 90 or 140Hz
- AC power requirement: 600VA
- Input connectors: Stereo XLR
- Net dimensions (WxHxD): 16.92 x 17.59 x 18.89 inch
- Net weight: 50.70 lbs
- Enclosure material: birch plywood
- Power supply cable: 16.4 ft
*MAX:2mS burst, RMS power on nominal speaker impedance. MAX PEAK: based on max peak output voltage and nominal speaker impedance.
**CONT. SPL: half space, based on continuous power amp rating and LF transducer average sensitivity data, 125mS time average. PEAK SPL: half space, based on max peak power amp rating and system peak sensitivity, 10mS time average.
