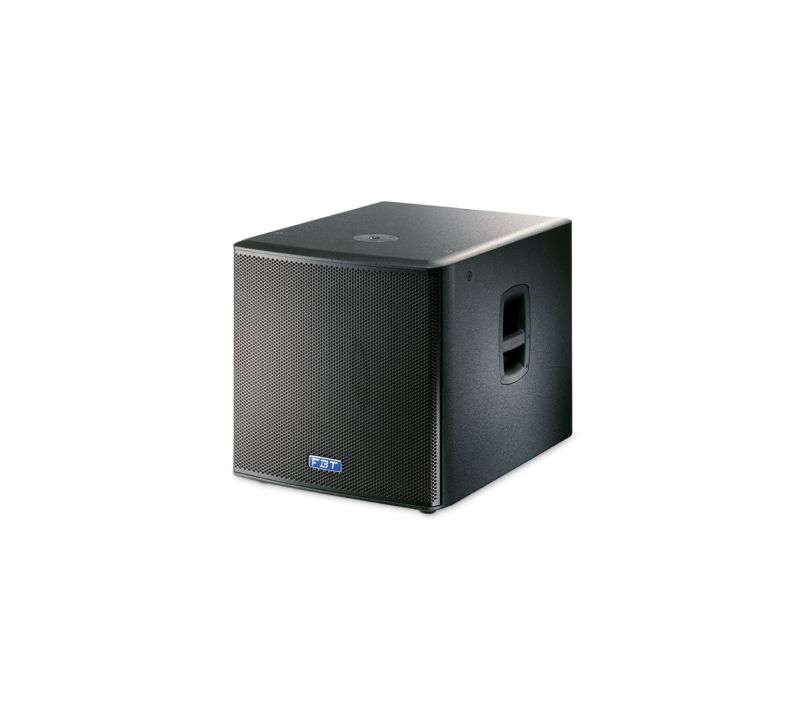

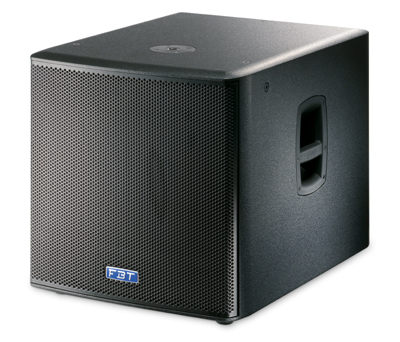

FBT MITUS 118SA Processed Bass Reflex Active Subwoofer
BACK-ORDER - Estimated Stock Arrival: 07-01-2024
SKU
31757
£2,191.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The FBT MITUS 118SA is a Perfect low-frequency extension for the MITUS range and an ideal companion for the MITUS 206LA line array for ground stack applications with an optional MTB206 metal base.
- Compact vented band pass subwoofer design enclosure
- 460 mm (18’’) custom B&C neodymium magnet high excursion woofer
- Class D amplifier
- DSP with 8 presets
- Control panel
- 18 mm (3/4’’) birch plywood enclosure
- See full product description
The FBT MITUS 118SA is a Perfect low-frequency extension for the MITUS range and an ideal companion for the MITUS 206LA line array for ground stack applications with an optional MTB206 metal base.
The Mitus has a completed vented bandpass subwoofer enclosure made from 18 mm (3/4’’) birch plywood enclosure, finished in scratch-resistant black paint. The MITUS 118SA has 460 mm (18’’) custom B&C neodymium magnet high excursion woofer with 75 mm (3’’) voice coil giving a Frequency response from 36Hz to 100Hz, with a Class D amplifier delivering 1200WRMS and a switch-mode power supply.
The MITUS 118SA has a DSP with eight presets, cardioids and infra configurations, delay and a Control panel with XLR input and link, volume, presets, delay, phase 0°-180°and ground lift. the subwoofer also comes with Eight M10 fly points, an M20 top mount stand socket and two FBT design aluminium handles, and along with the optional MTB206 metal base, you can get a 4 swivel-mount casters 80 mm (3.15’’) available on request
- Compact vented band pass subwoofer design enclosure
- 460 mm (18’’) custom B&C neodymium magnet high excursion woofer with 75 mm (3’’) voice coil
- Frequency response from 36Hz to 100Hz
- Class D amplifier delivering 1200WRMS
- Switch mode power supply
- DSP with 8 presets, cardioids and infra configurations, delay
- Control panel with XLR input and link, volume, presets, delay, phase 0°-180°, groundlift
- 18 mm (3/4’’) birch plywood enclosure, scratch resistant black paint
- Eight M10 fly points, M20 top mount stand socket and two FBT design aluminum handles
- Optional 4 swivel-mount casters 80 mm (3.15’’) on request
- Perfect low-frequency extension for the MITUS range and an ideal companion for the MITUS 206LA line array for ground stack applications with optional MTB206 metal base
- Configuration: 1 Way
- Frequency response: 36Hz - 100Hz
- Low frequency woofer: 18" with 3" VC
- Maximum SPL cont/peak: 135 / 139 dB
- Dispersion: Omnidirectional
- Input impedance: 22kohm
- Crossover frequency: Preset Dependent
- Input connector: XLR with link out
- Net Dimension (WxHxD): 574 x 594 x 730mm
- Net Weight: 47kg
- Transport Dimension (WxHxD): 640 x 760 x 780mm
- Transport Weight: 56.2kg
- AC Power requirements: 640VA
- Built-in amplifier LF/HF: 1200 RMS
- Built-in amplifier peak LF/HF: 2400w
- Power cord: 5m PowerCon
