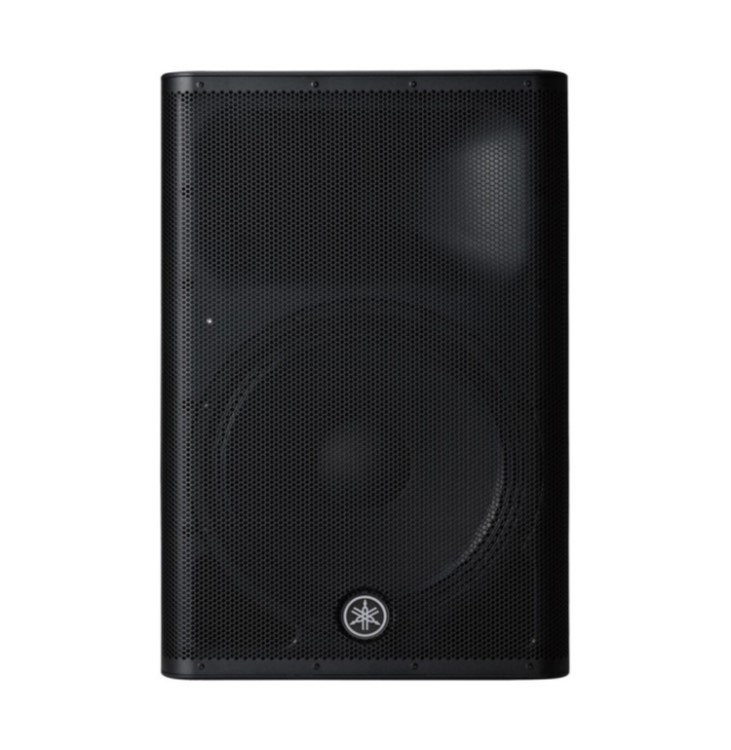

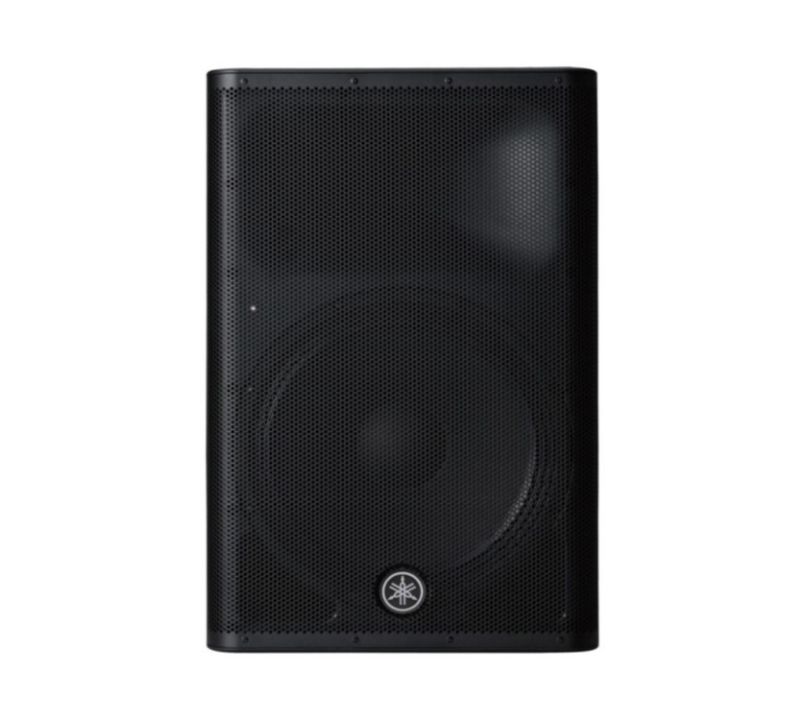

Yamaha DXR15mk2 15'' Active PA Speaker (1100w)
Availability:In stock
SKU
DXR15MK2UK
£899.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Yamaha DXR15mk2 15” Active PA Speaker is a powerful 1100 watt powerhouse, with a 134 dB SPL output, Class-D amp, intelligent multiband compressor and seven years extended warrant at no extra cost when you register your product.
- See full product description
- Buy 2 for £889.00 each and save 1%
The Yamaha DXR15mk2 15” Active PA Speaker features a dynamic power of 1100 watts, a class-D amplifier and a continuous power rating of 700 watts. There is a frequency range of 49Hz – 20kHz, capitalising on those low sounds, and an SPL of 134 dB.
The FIR-X tuning feature not only splits your high and low frequencies but also stops phase issues within the mid-range, resulting in clean sounds and extremely smooth crossovers. Added to this is an intelligent multi-band D-contour compressor, which boosts your sound.
This Yamaha Active Speaker features an integrated three-channel mixer that enables you to balance your sound sources with ease. There are two ¼” jack inputs, one XLR/¼” jack combo input and two RCA inputs.
Integrated into the speaker is a 50° symmetrical floor monitor angle. Additionally, there are two 35mm speaker pole mounts at 0° and 7°, which allows for more speaker positioning options, along with two top and one rear rigging points.
One final point worth mentioning is when you register your DXR15mk2 Speaker on Yamaha’s website, you will receive an extended seven years warranty, at no extra charge!
- Register your product with Yamaha and receive an extended 7 year warranty
- D-contour intelligent multi-band compressor optimises your sound
- FIR-X tuning crossover stops phase issues in the mid-range
- 50° monitor angle when laid on the side
- Two 35 mm speaker pole mounts at 0° and 7°
- Super efficient class D amplification with 700 watts continuous output
- Integrated 3 channel mixer lets you easily balance input sources
- Easy to use presets for different rooms and PA configurations
Yamaha DXR15mk2 15'' Active PA Speaker Technical Specification
General
- System type: 2 way, bi-amped, bass reflex powered speaker
- Frequency range (-10 dB): 49 Hz - 20 kHz
- Coverage angle: H 90° x V 60° constant directivity horn
- Crossover type: FIR-X tuning (linear phase FIR filter)
- Max SPL (peak): 134 dB SPL
Transducers
- Low frequency: Diameter: 15'' cone, Voice coil: 2.5'', Magnet: Ferrite
- High frequency: Voice coil: 1.75'', Diaphragm: PET, Type: 1'' throat compression driver
- Magnet: Neodymium
Enclosure
- Material, finish, colour: ABS, matte black
- Floor monitor angle: 50° Symmetrical
- Dimensions (WxHxD): 445 x 700 x 380 mm
- Net weight: 21.8 kg
- Pole socket: 35 mm x 2 (0° or 7°)
- Rigging points: Top x 2, Rear x 1, fits for M10 eyebolts
Amplifier
- Amplifier type: Class-D
- Dynamic power rating: 1100 watts
- Continuous power rating: 700 watts
- Cooling: fan cooling, 4 speeds
- AD/DA: 24 bit, 48 kHz
- Signal processing: 48 bit
- HPF/LPF: off, 100, 120 Hz 24 dB/octave
- DSP presets: D-contour, FOH/main, monitor, off
- Input connectors: 1 x XLR/1/4'' jack combo, 2 x 1/4'' jack, 2 x RCA pins
- Output connectors: 2 x XLR
- Idle power consumption: 35 watts
