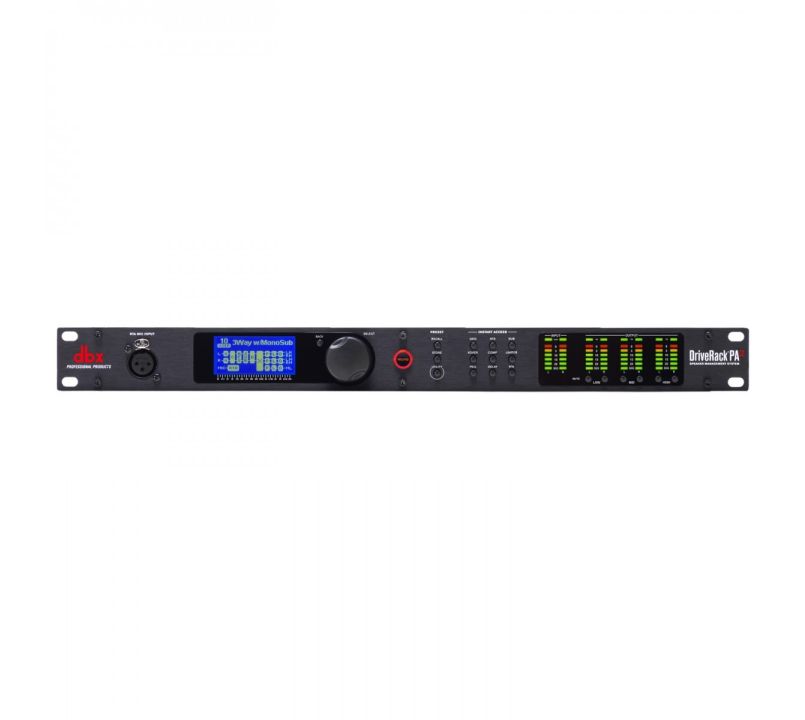

dbx DriveRack PA 2 Loud Speaker Management System
BACK-ORDER - Estimated Stock Arrival: 02-12-2024
SKU
dbx DriveRack PA2
£457.00
Seen it cheaper? We aim to match authorised UK dealers
- See full product description
The dbx DriveRack PA 2 Loud Speaker Management System is an intelligent and essential piece of equipment for managing live sound. Its features include intelligent equalization, feedback suppression, and limiting to protect your speakers. The installation process is straightforward and quick, thanks to dbx's setup Wizard. It also offers built-in mobile connectivity, allowing you to control your speakers from anywhere using the app. With DriveRack PA 2, you have complete control over your audio, no matter where you are. It is an excellent investment for anyone in need of reliable and sophisticated sound management.
AutoEQ
Get the best sound possible effortlessly with dbx's AutoEQ. Say goodbye to tedious sound tests and hello to a seamless experience. The fast, accurate, and effective algorithm automatically sets speaker levels and room EQ, taking the pressure off you. Enjoy the ultimate sound experience with dbx's AutoEQ.
Show feedback the door
Eliminate annoying feedback for good with dbx's AFS feedback elimination system. This powerful tool is lightning-fast and incredibly precise, detecting and neutralizing feedback before it has a chance to disrupt your sound. With automatic speaker level adjustments, rest assured that your sound will always be crystal-clear and completely free from feedback.
- All New Setup Wizard
- Streamlined AutoEQ
- All New AFS (Advanced Feedback Suppression)
- Mobile Control (Android, iOS, Mac, Windows)
- dbx Compression
- Graphic EQ
- 8-Band Parametric EQ (adjusted when using the AutoEQ) Input
- Subharmonic Synthesis
- Crossover (supports full range, 2-way, and 3-way systems)
- 8-Band Parametric EQs (used for speaker tunings) Output
- dbx Limiting
- Driver Alignment Delays
- Input: (2) line inputs. (1) RTA Mic input
- Input Connectors: (2) Female XLR line inputs. (1) Female XLR RTA Mic input
- Input Type: Electronically balanced/RF filtered
- Input Impedance: >50 kohm
- A/D Converter: dbx Type IV Conversion System
- CMRR: > 45dB
- Mic Preamp Phantom Power: +15VDC (RTA)
- Mic Preamp Equivalent Input Noise (EIN):
- Output: (6) Line Outputs
- Output Connectors: Male XLR
- Output Type: Electronically balanced, RF filtered
- Output Impedance: 120
- Max Output: +20dBu
- A/D Dynamic Range: 112 dB A-weighted, 110 dB unweighted
- Type IV Dynamic Range: 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW
- Alignment Delay: 10ms per channel (60ms total)
- Sample Rate: 48kHz
- Dynamic Range: >110 dB A-weighted, >107dB unweighted
- THD+Noise: 0.003 typical at +4dBu, 1kHz, 0dB input gain
- Frequency Response: 20Hz - 20kHz, +/- 0.5dB
- Interchannel Crosstalk:
- Operating Voltage: 100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz
- Power Consumption: 22 W
- Unit Weight: 5.25 lbs. (2.4 kg)
- Shipping Weight: 6.75 lbs. (3.1 kg)
- Dimensions: 1.75" (H) x 5.75" (D) x 19" (W), 4.4cm (H) x 14.6cm (D) x 48.26cm (W)
- D/A Dynamic Range: 112 dB A-weighted, 110dB unweighted
