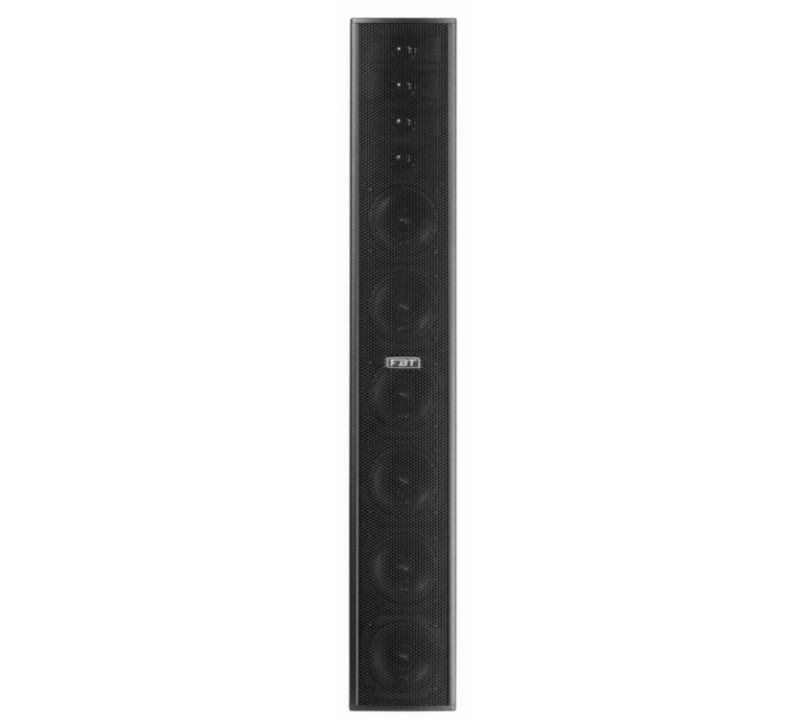

FBT VERTUS CLA604A Active Line Array Column
Availability:In stock
SKU
34549
£1,195.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The FBT VERTUS CLA604A is a 2-way bi-amplified Line Array Column speaker, with 6 x 4” (100mm) custom woofer with 1” (25 mm) voice coil and 4 x 1” (25mm) neodymium dome tweeter on waveguide, give a frequency response between 130Hz to 20KHz.
- 2-way bi-amplified Line Array Column.
- 6 x 4” (100mm) custom woofer with 1” (25 mm) voice coil.
- 4 x 1” (25mm) neodymium dome tweeter on waveguide.
- Class D 400Wrms amplifier for LF and 100Wrms for HF
- DSP processor
- Control panel
- See full product description
- Buy 2 for £1,175.00 each and save 2%
The FBT VERTUS CLA604A is a 2-way bi-amplified Line Array Column speaker, with 6 x 4” (100mm) custom woofer with 1” (25 mm) voice coil and 4 x 1” (25mm) neodymium dome tweeter on waveguide, give a frequency response between 130Hz to 20KHz.
The Vertus uses a Class D 400Wrms amplifier for LF and 100Wrms for HF with a switch mode power supply. The Vertus has a DSP processor with 4 EQ presets with a Control panel that includes volume, presets, HP filter, Mic-Line control and a status LED. The Vertus has XLR input and Neutrik POWERCONN supply input at the lower part of the column; XLR link and Neutrik POWERCONN loop output at the higher part, in order to hide each connection cable.
The Vertus has 100°H x 20°V dispersion. The speaker is enclosed in Extruded-aluminum powder-coated cabinets. Superior latching system, enables the extension of the length of the line array by adding CLA604A modules for increased modularity of the system giving the Possibility to angle the columns of +/- 30° on a horizontal plane. The speaker Ideal for both live applications, assisted by the CLA 208SA active subwoofer, as well as for fixed installation. and is also availible in white.
- 2-way bi-amplified Line Array Column.
- 6 x 4” (100mm) custom woofer with 1” (25 mm) voice coil.
- 4 x 1” (25mm) neodymium dome tweeter on waveguide.
- 130Hz to 20KHz frequency response.
- Class D 400Wrms amplifier for LF and 100Wrms for HF with switch mode power supply.
- DSP processor with 4 available equalization presets.
Control panel with volume, presets, HP filter, Mic-Line, status LED. - XLR input and Neutrik POWERCONN supply input at the lower part of the column; XLR link and Neutrik POWERCONN loop output at the higher part, in order to hide each connection cable.
- 100°H x 20°V dispersion.
- Extruded-aluminum powder-coated cabinets. Superior latching system, enables the extension of the length of the line array by adding CLA604A modules for increased modularity of the system.
- Possibility to angle the columns of +/- 30° on a horizontal plane.
- Ideal for both live applications, assisted by the CLA 208SA active subwoofer, as well as for fixed installation.
- Easily expandable for a total power of 6600W (stereo system composed of 3 x CLA604A and 3 x CLA208SA).
- Very light and easy to carry.
- Available in white colour: Vertus CLA 604A W.
- Configuration: Line Array - 2 Way
- Frequency response: 130Hz - 20kHz
- Low frequency woofer: 6x 4" with 1" VC
- High frequency driver: 4x 1" with 1" VC
- Maximum SPL cont/peak: 122 / 125db
- Dispersion: 100 x 20 (H x V)
- Input impedance: 22kohm
- Crossover frequency: 2.5kHz
- Input connector: XLR with link out
- Net Dimension (WxHxD): 130 x 841 x 130mm
- Net Weight: 9kg
- Transport Dimension (WxHxD): 220 x 930 x 220mm
- Transport Weight: 11.5kg
- AC Power requirements: 450VA
- Built-in amplifier LF/HF: 400/100w RMS
- Built-in amplifier peak LF/HF: 800/200w
- Power cord: 5m IEC
