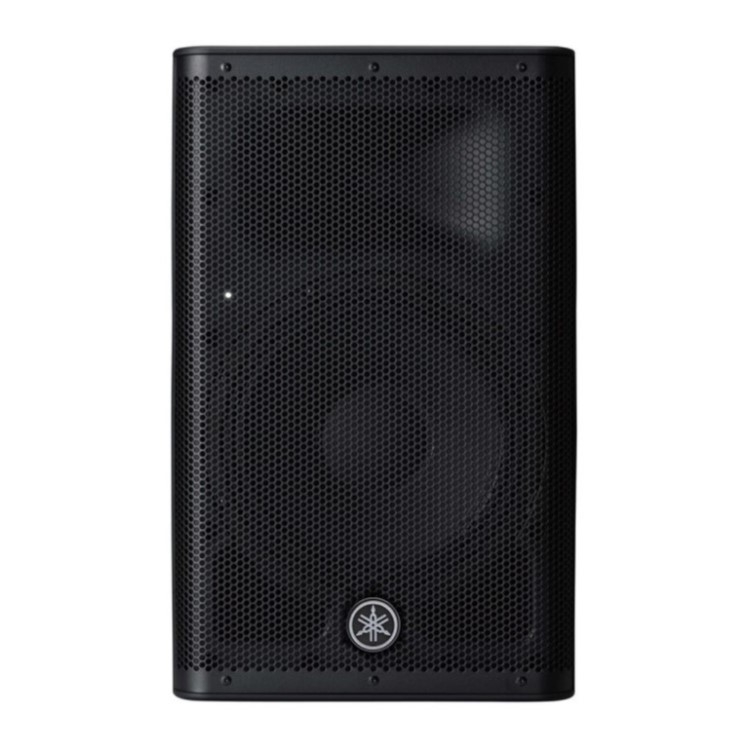

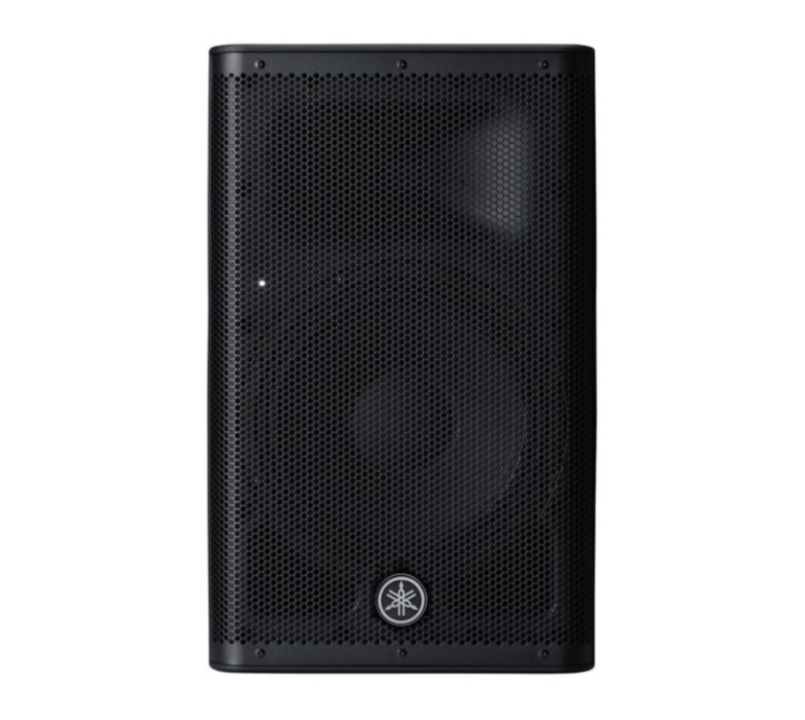

Yamaha DXR8mk2 8'' Active PA Speaker (1100w)

Please note - pre-ordered items will be shipped via your chosen delivery method when they arrive in store.
SKU
CDXR8MK2UK
£663.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The Yamaha DXR8mk2 8” Active PA Speaker is a powerful 1100 watt powerhouse, with a 130 dB SPL output, Class-D amp, intelligent multiband compressor and seven years extended warrant at no extra cost when you register your product.

  • See full product description

The Yamaha DXR8mk2 8” Active PA Speaker boasts an array of audio technology onboard a deceiving lightweight exterior. Not only does it feature an impressive 130 dB SPL output, but also a frequency range of 57Hz – 20kHz.

The 2-way, bi-amped, bass reflexed powered speaker features an intelligent multi-band D-contour compressor which enhances your sound, while the FIR-X tuning not only splits your high and low frequencies but also stops phase issues within the mid-range. The Class D amplification is highly efficient with a continuous output of 700 watts and has a dynamic power of 1100 watts.

The Yamaha’s integrated three-channel mixer allows you to configure input sources. These are present in the form of two ¼” jack, one XLR/¼” jack combo and two RCA inputs. There are also two 35mm speaker pole mounts at 0° and 7°, which allows for flexible positioning.

When you register the Yamaha DXR8mk2 Speaker on Yamaha’s website you receive an extended 7 years warranty at no extra cost to you! Overall, this Active PA Speaker is a little force to be reckoned with.

Yamaha DXR8mk2 8'' Active PA Speaker Key Features

  • 130 dB SPL output
  • 12.8 kg weight
  • Register your product with Yamaha and receive an extended 7 year warranty
  • D-contour intelligent multi-band compressor optimises your sound
  • FIR-X tuning crossover stops phase issues in the mid-range
  • Two 35 mm speaker pole mounts at 0° and 7°
  • Super efficient class D amplification with 700 watts continuous output
  • Integrated 3 channel mixer lets you easily balance input sources
  • Easy to use presets for different rooms and PA configurations

Yamaha DXR8mk2 8'' Active PA Speaker Technical Specifications

General

  • System type: 2 way, bi-amped, bass reflex powered speaker
  • Frequency range (-10 dB): 57 Hz - 20 kHz
  • Coverage angle: H 90° x V 60° constant directivity horn
  • Crossover type: FIR-X tuning (linear phase FIR filter)
  • Max SPL (peak): 130 dB SPL


Transducers

  • Low frequency: Diameter: 8'' cone, Voice coil: 2'', Magnet: Ferrite
  • High frequency: Voice coil: 1.75'', Diaphragm: PET, Type: 1'' throat compression driver
  • Magnet: Neodymium


Enclosure

  • Material, finish, colour: ABS, matte black
  • Dimensions (WxHxD): 280 x 458 x 280 mm
  • Net weight: 12.8 kg
  • Pole socket: 35 mm x 2 (0° or 7°)
  • Rigging points: Top x 2, Rear x 1, fits for M8 eyebolts


Amplifier

  • Amplifier type: Class-D
  • Dynamic power rating: 1100 watts
  • Continuous power rating: 700 watts
  • Cooling: fan cooling, 4 speeds
  • AD/DA: 24 bit, 48 kHz
  • Signal processing: 48 bit
  • HPF/LPF: off, 100, 120 Hz 24 dB/octave
  • DSP presets: D-contour, FOH/main, monitor, off
  • Input connectors: 1 x XLR/1/4'' jack combo, 2 x 1/4'' jack, 2 x RCA pins
  • Output connectors: 2 x XLR
  • Idle power consumption: 35 watts
