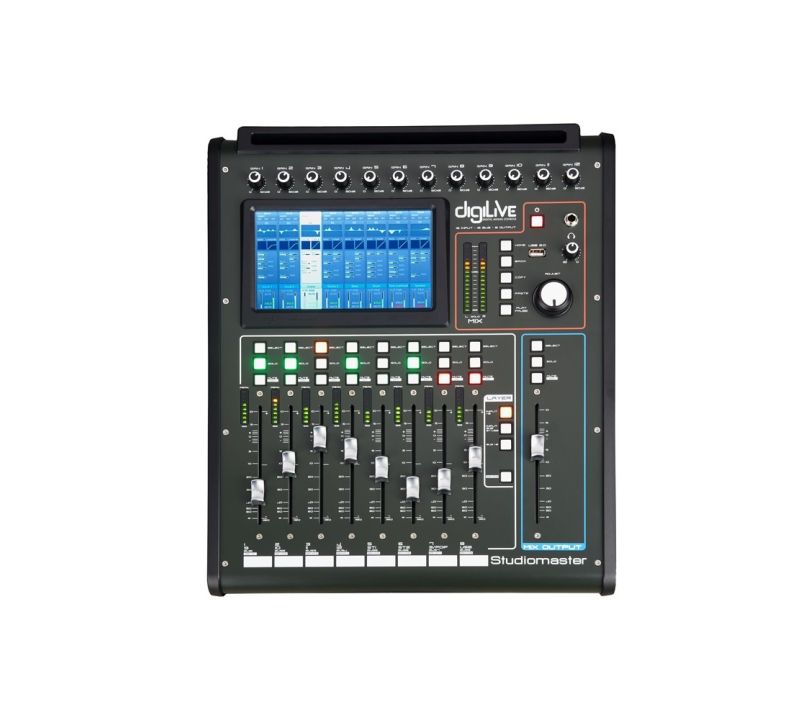

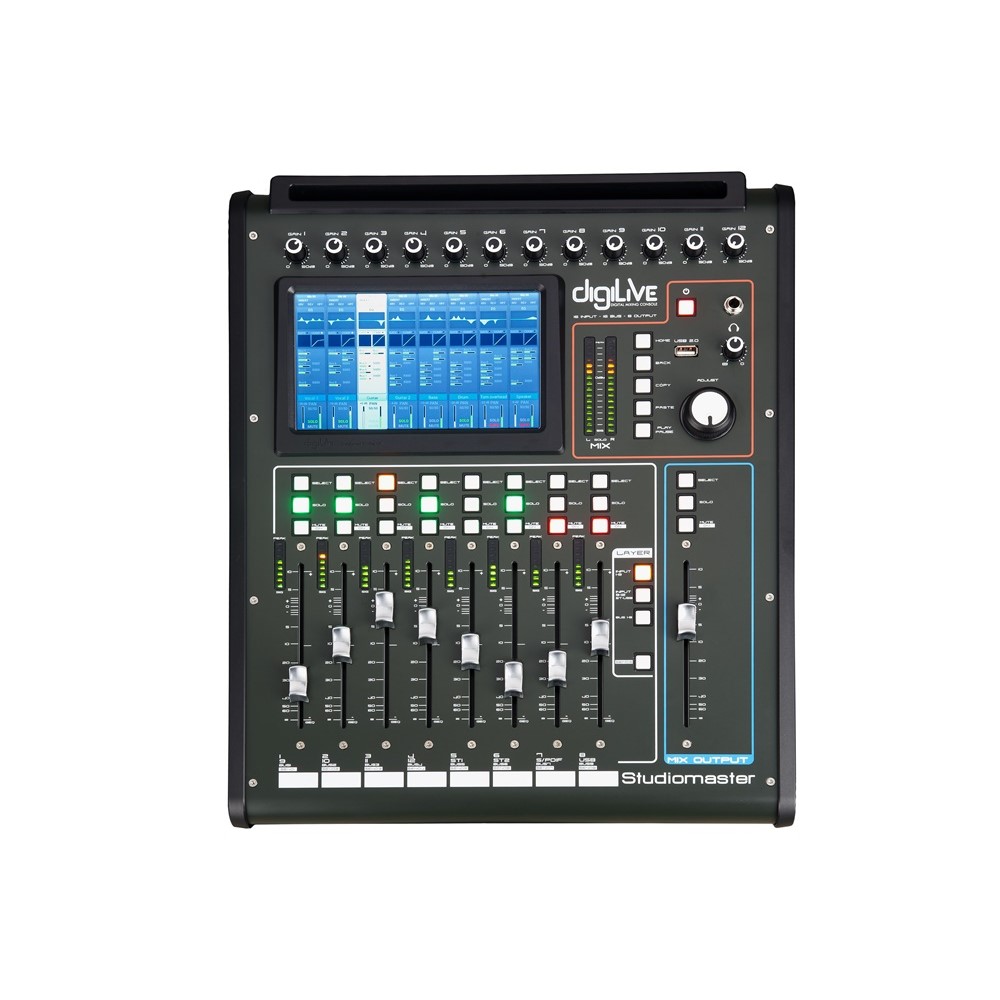

Studiomaster DigiLive 16 Digital Mixer
Availability:In stock
SKU
130002
£869.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Studiomaster DigiLive 16 digital mixer is the finest hybrid stand-alone mixing console that includes motorised faders.
- See full product description
The Studiomaster DigiLive 16 digital mixer is the finest hybrid stand-alone mixing console that includes motorised faders. The console represents the result of years of research and development. It meets every need for functionality, audio quality, and ease of use.
The Ultra Compact design conceals a feature-rich solution for any mixing application, and the addition of eight 100mm motorised faders, a full DSP section, and scene selection simplifies digital mixing.
The 12 analogue inputs with improved microphone preamps can be routed and controlled by hardware buttons, a 7" high-resolution touch screen, or an Android or iPhone app.
- 16 input with 16 internal busses
- 12 professional mic input channels
- 2 stereo inputs
- 8 configurable smart outputs
- 7 high resolution touch screen
- 9 motorised 100mm faders
- Advanced hybrid user interface
- Mic Inputs: 12 (8x XLR / 4x Combo XLR)
- Stereo Inputs: 2
- Master Output: 2 (Left/Right balanced XLR)
- Smart Outputs: 6 (assignable balanced XLR)
- Internal busses: 16
- Stage monitor: 1 TRS Jack output
- Headphone: 1 TRS Jack output
- Screen: 7″ high definition touch screen
- Faders: 8x motorised 100mm channel faders + 1x motorised 100mm master L/R mix
- Operation system: Android system
- Network: Yes, via included WiFi module
- Remote control: iPad iOS via ‘Digilive Blackbox’ app
- Sample Frequency: 48 KHz
- AD/DA: 192 KHz, 24-bit
- DSP: 40 bit float point, SHARC processor
- Effects: up to 8 assignable effect modules
- AES/EBU: Output XLR
- S/PDIF: Input / Output (RCA Phono)
- USB Interface: 2 for playback/recording, scene/setting storage and system updates
- Power Supply: 90-240V ~ 50/60Hz power supply 12VDC
- Dimension W*H*D: 357 x 480 x 145 (mm)
