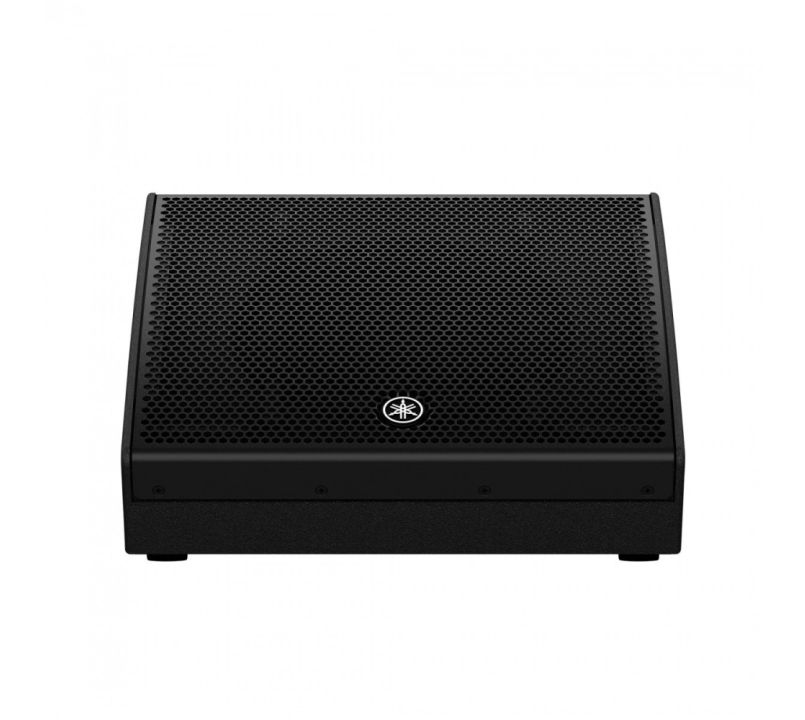

Yamaha CHR12M 12" Passive Floor Monitor Speaker
Please note - pre-ordered items will be shipped via your chosen delivery method when they arrive in store.
SKU
CHR12M
£399.00
Finance options available - click here to find out more
i
i
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Yamaha CHR12M is a two-way passive floor monitor that features a top-quality 12-inch woofer and a 1.75-inch high-frequency driver. The cabinets plywood construction is the same as that found on Yamaha’s renowned CZR Series, which ensures precision sound and minimal vibration. Attention to detail is apparent through the polyurea coating on the enclosure, which provides a robust and scratch-resistant surface, along with the carefully selected and tailored transducers.
- Two-way passive loudspeaker
- 12-inch woofer
- 1.75-inch HF coaxial compression driver
- Premium plywood casing to minimise vibration
- Durable scratch-resistant polyurea coating on the casing
- See full product description
- Buy 2 for £391.00 each and save 2%
The Yamaha CHR12M is a two-way passive floor monitor that features a top-quality 12-inch woofer and a 1.75-inch high-frequency driver. The cabinets plywood construction is the same as that found on Yamaha’s renowned CZR Series, which ensures precision sound and minimal vibration. Attention to detail is apparent through the polyurea coating on the enclosure, which provides a robust and scratch-resistant surface, along with the carefully selected and tailored transducers.
Coaxial High-Frequency Compression Driver
The CHR 12M features a coaxial high-frequency compression driver design which is ideal for increasing the reproduction of mid-frequencies. Not only that, you have more precise and clearer high-end, allowing performers to listen with clarity and engineers to make the best decisions based on detailed feedback.
Compatible DSP
The CHR Series has full use of DSP technology by using a power amplifier with DSP and speaker tuning settings. It does not have to be a Yamaha power amplifier. It can be any power amplifier. Just so long as the system and speakers are compatible, it will work seamlessly.
Speaker Casing
The CHR12M speaker housing is robust, durable and scratch-resistant, thanks to the polyurea coating. It can withstand transportation without compromising on its appearance and will robustly protect its components within.
- Two-way passive loudspeaker
- 12-inch woofer
- 1.75-inch HF coaxial compression driver
- Premium plywood casing to minimise vibration
- Durable scratch-resistant polyurea coating on the casing
- Full use of DSP technology via a power amplifier with DSP and speaker tuning settings
Speaker Type
- 2-way Speaker, Bass-reflex
Frequency Response
- 61 Hz - 20 kHz
Coverage Area
- H90° x V60°
Crossover
- 1.8 kHz
Nominal Impedance
- 8Ω
SPL
- Sensitivity (1W; 1m on axis): 93 dB SPL
- Peak (Calculated): 123 dB SPL
LF Transducer Components
- Diameter: 12" cone
- Voice Coil: 2.5"
- Magnet: Ferrite
HF Transducer Components
- Diaphragm: 1.75"
- Type: 1" throat coaxial compression driver
- Magnet: Ferrite
Power Rating
- NOISE: 250 W
- PGM: 500 W
- PEAK: 1000 W
I/O Connectors
- SpeakON NL4MP x 2 (Parallel)
Cabinet Material
- Plywood
Finish
- Durable Polyurea Painting, Black
Handle
- Side x 1
Pole Socket
- Φ35 mm x 1 (Bottom)
Floor Monitor Angle
- 57°
Dimensions
- Width: 500 mm (19.7")
- Height: 343 mm (13.5") (with rubber feet)
- Depth: 454 mm (17.9")
Weight
- 15.6 kg (34.4 lbs)
