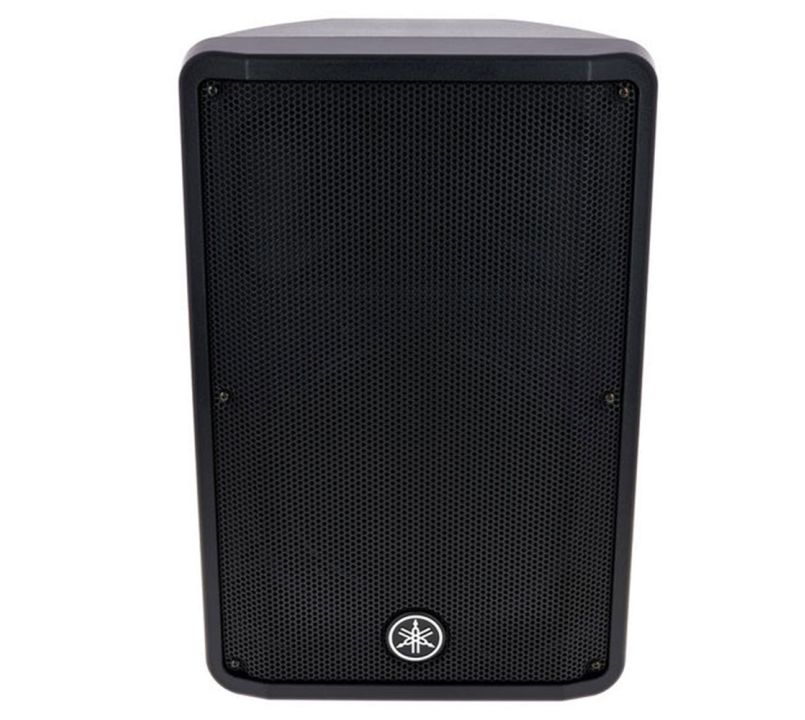

Yamaha DBR12 Active PA Speaker
BACK-ORDER - Estimated Stock Arrival: 14-01-2025
SKU
CDBR12UK
£436.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The DBR12 Active PA speaker features the same Yamaha state-of-the-art DSP technology inherited from its predecessors, ensuring superior performance and versatility, and safe, consistent operation.
- See full product description
The DBR12 Active PA speaker features the same Yamaha state-of-the-art DSP technology inherited from its predecessors, ensuring superior performance and versatility, and safe, consistent operation.
The DBR12 can project deep bass, clear midrange and accurate high frequencies to the outer-most edges of a very wide coverage area and boasts 1000W of power.
The design incorporates an optimised 50° wedge angle for floor monitoring use.
- Equipped with: 12" + 1.4"
- Power: 1000 W / peak 465 W / RMS
- Maximum SPL: 131 dB
- Frequency range: 52 - 20,000 Hz
- Coverage pattern of horn: 90° x 60°
- Internal 2-channel mixer with XLR, jack and RCA inputs
- 4-Speed fan
- Angled for use as monitor
- 3 x M8 fly points
- Dimensions (W x H x D): 376 x 601 x 348 mm
- Weight: 15.8 kg
- Speaker type - 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range - 52Hz - 20kHz
- Nominal coverage H - 90°
- Nominal coverage V - 60°
- Components LF - Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
- Components HF - Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
- Crossover - 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
- Output power - Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
- Maximum output level (1m; on axis) - 131dB SPL
- I/O connectors - INPUT1: Combo x1, INPUT2: Combo x 1 RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1 CH2 Mix)
- Processors - D-CONTOUR: FOH/MAIN, MONITOR, OFF
- Heat dissipation - Fan cooling, 4 speeds
- Power requirements - 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
- Power consumption - 74W(1/8 Power Consumption), 18W(Idle)
- Cabinet material - Plastic
- Finish - Black
- Handle - Side x 2
- Flying and mounting hardware - Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
- Pole socket - 35mm (Bottom x 1)
- Dimensions:
- W - 376mm (14.8")
- H - 601mm (23.7")
- D - 348mm (13.7")
- Net weight - 15.8 kg (34.8 lbs)
